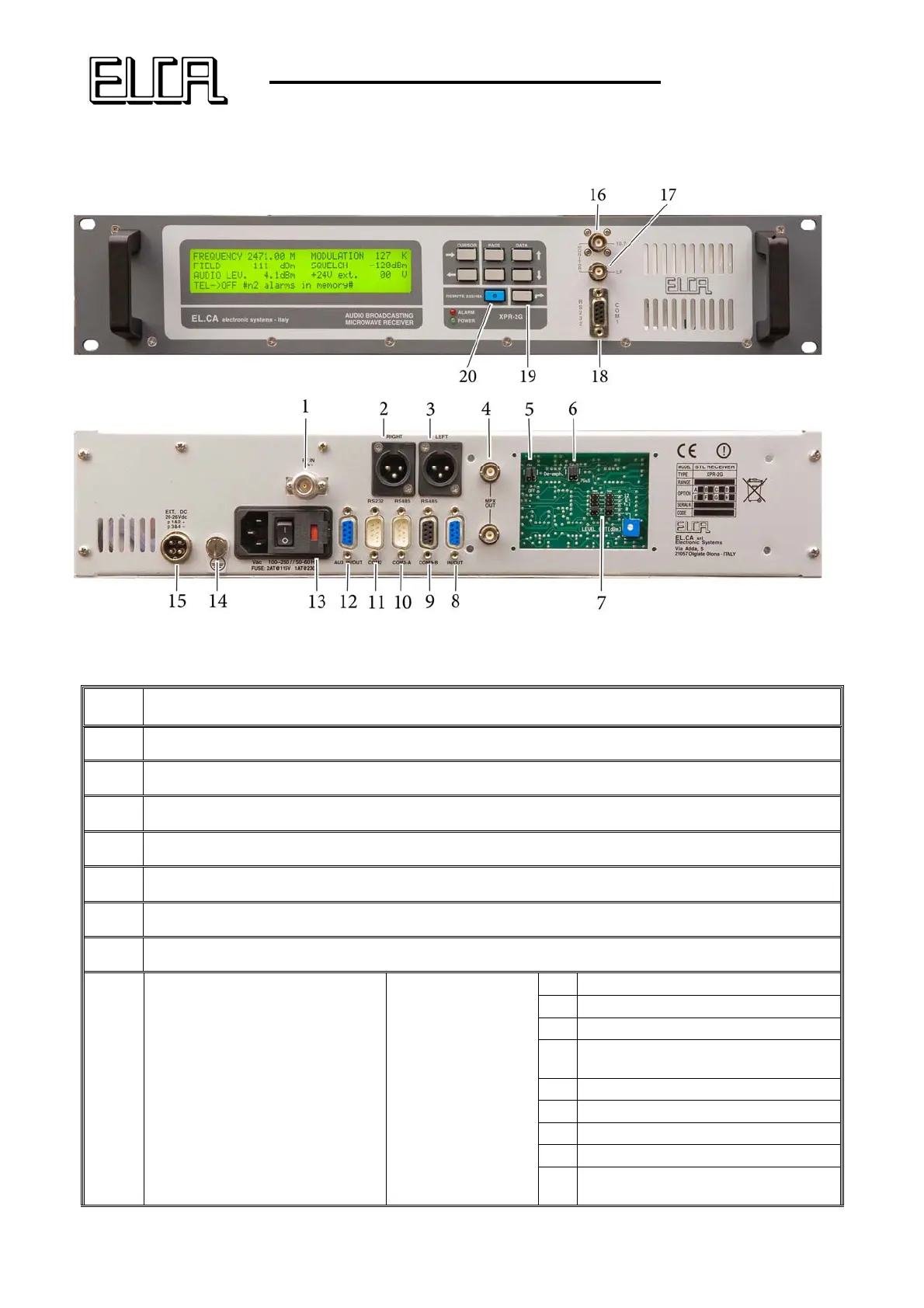

XPR-2G FRONT AND REAR PANNEL SETTING
N°
FUNCTION
1 RF IN from antenna
2 LEFT output Pin 1=GND Pin 2=L+ Pin 3=L-
3 RIGHT output Pin 1=GND Pin 2=R+ Pin 3=R-
4 MPX out
5 DE-EMPHASIS on /off
6 De-emphasis value 75 or 50 microsec.
7 Output audio level setting 0 – 4.1 – 6 – 12 dBm
1 NC
2 NC
3 NC
4
ALARM1 out (closed or open output
contact / Z1 – RX400 board )
5 GND
6 NC
7 NC
8 NC
8 IN/OUT
PIN
NUMBER
( DB9 )
9
ALARM2 out (closed or open output
contact / Z2 – RX400 board )
