QUICK START GUIDE
FOR ELDES
ESIM251 USERS
1. Place SIM card in the holder.
Make sure that PIN code at SIM card is disabled*
1
.

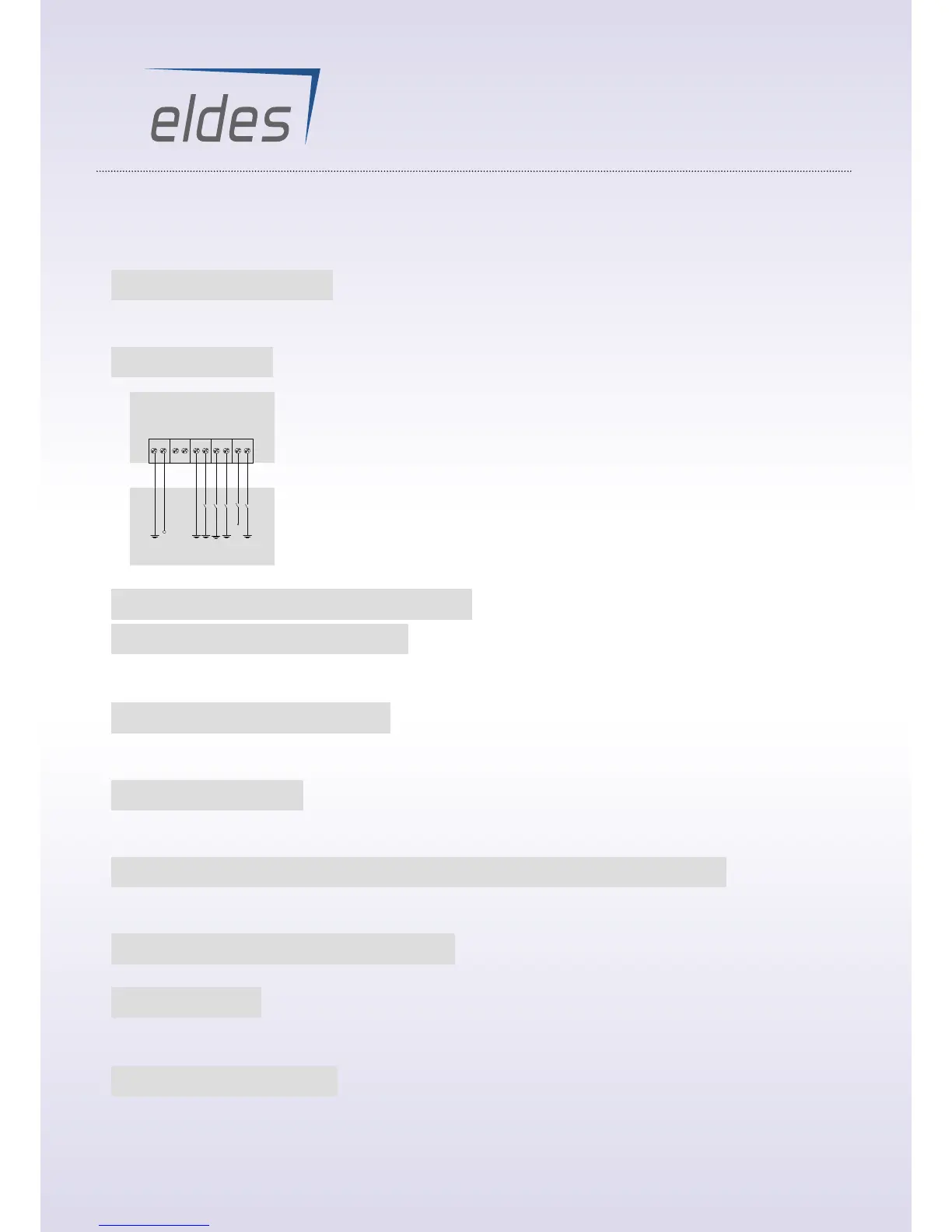

2. Connect the circuit.
Connect security central system to inputs
Z1-Z5 or any electrical device to RELAY outputs.
The system will start in less than a minute and
LED indicator will start to blink every 5 seconds.
3. Connect device to the computer using USB cable.
*2
4. Run program ELDES Configuration Tool.
Click button Connect via USB in the main window.
5. Change default password to a new one.
Select Users window and update Security section by typing a new password consisting of 4 digits.
6. Set the English language.
Select Users window and update Language section.
7. Set up to five different user phone numbers which will have access to control the system.
Select Users window and update Users section with preferred mobile numbers according to the rules
*3.
8. Save the preferences. Click button Write Settings.
9. Set date and time.
Click button Get PC Time which will update date and time using computer settings. Click button Set Clock.
10. The system is ready to use.
*4
In this guide you will learn how to quickly set and run ELDES ESIM251 device
using ELDES Configuration Tool program. Here are the most important steps:
*1 - PIN code can be disabled by putting SIM card into mobile phone and following proper menu. *2 – If device is connected to the remaining computer for the first time, computer will run installation
of required drivers. Then user must wait then it ends and reconnect USB cable. *3 – User must type mobile number in the international format (it consist of only those digits that overseas callers
must type: 44<area code><local number>) without symbol ‘+’. E.g. the mobile number of user is +44 (0) 113 xxx xxxx, so the correct format to type is 44113xxxxxxx and the wrong ones –
440113xxxxxxx or 0113xxxxxxx. *4 - device will use default settings set by manufacturer. The settings can be changed by user at any time.
+12V
HIGH
LEVEL
Z1Z2Z3Z4Z5COMRELAYAC/DC
GSM communication and
control system ESIM251
Alarm system or other appliance
PGM1
PGM3
PGM4
PGM5
PGM2
