This document provides a comprehensive user manual for the Elechelf PTC Space Heater, model GD9215AD20, outlining its functions, safety precautions, usage notes, components, control operations, and maintenance instructions.

The Elechelf PTC Space Heater is designed to provide warmth and comfort in indoor environments such as bedrooms, offices, or living rooms. It utilizes PTC (Positive Temperature Coefficient) heating technology, which is known for its efficiency and safety. The heater is equipped with several features to enhance user experience and ensure safe operation.

Safety Features and Precautions

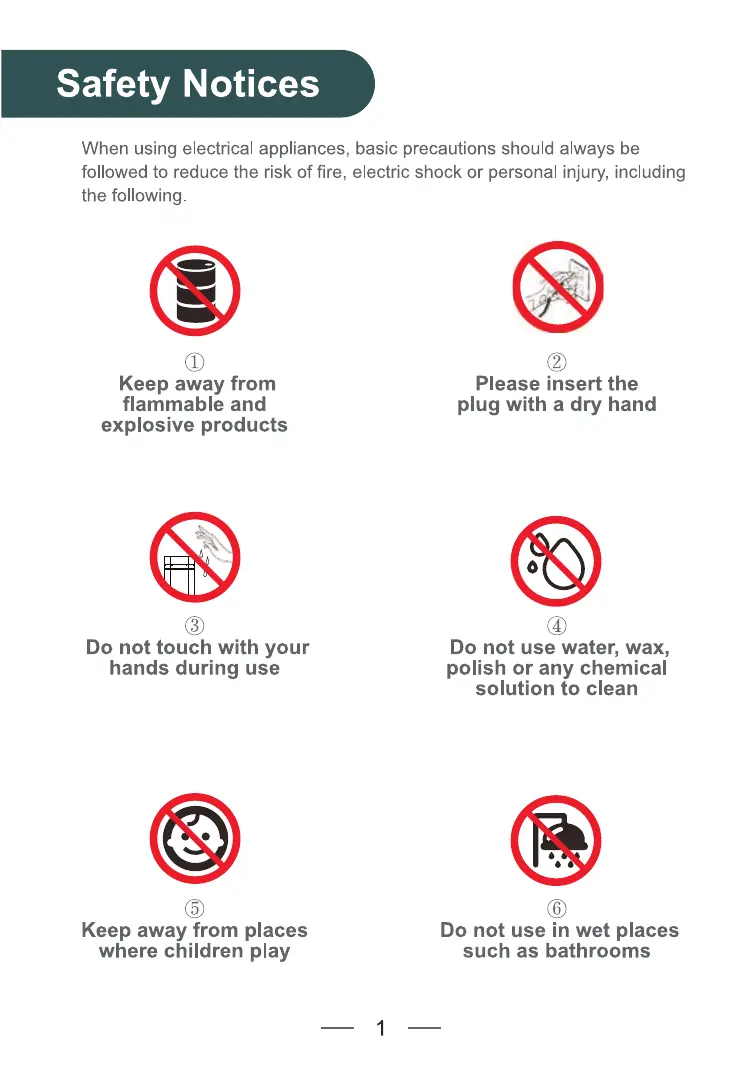

Safety is a paramount concern with this appliance, and the manual emphasizes several critical precautions. Users are advised to keep the heater away from flammable and explosive products to prevent fire hazards. When inserting the plug, it should always be done with a dry hand to avoid electric shock. During use, direct contact with the heater's hot surfaces should be avoided, and protective gloves are recommended when moving the unit. For cleaning, it is crucial not to use water, wax, polish, or any chemical solutions, as these can damage the unit or pose a safety risk. The heater should be kept away from areas where children play to prevent accidents. Furthermore, it is not suitable for use in wet places like bathrooms.

The heater features a polarized plug, where one blade is wider than the other, designed to fit into a polarized outlet in only one way. This safety feature reduces the risk of electric shock. If the plug does not fit, users are instructed to flip it horizontally and try again, or contact a qualified electrician if the issue persists, rather than attempting to defeat the safety feature.

For optimal and safe operation, the heater must be placed on a firm, level surface, free from obstructions, and at least 3 feet (0.9m) away from any wall or combustible material. Users are strictly warned against disassembling the heater. If the heater malfunctions, has a damaged cord or plug, or has been dropped or damaged, it should not be operated. Instead, it must be returned to an authorized service facility for examination, electrical or mechanical adjustment, or repair.

The heater incorporates an automatic tip-over protection system. If the unit is tipped forward, backward, or knocked down by accident, a switch at the bottom will activate, automatically shutting off the heater. To resume operation after a tip-over, the heater should be placed horizontally on a flat surface, and then the power switch can be turned on, and the desired mode reset. Additionally, an automatic overheat protection system is integrated. This system will shut off the unit if any parts of the heater overheat, further ensuring user safety.

Usage Notes

The manual provides detailed usage notes to ensure proper and safe operation. The heater becomes hot during use, so bare skin should not touch its hot surfaces. Combustible materials like cloth and paper must be kept at least 3 feet away from the front, sides, and rear of the heater. Extreme caution is necessary when the heater is used near children or invalids, or when left working unattended. The heater should always be unplugged when not in use.

It is not designed for outdoor use or in moist indoor locations such as bathrooms or laundry areas, and should never be placed where it could fall into water containers. The power cord should not be run under carpeting or covered with throw rugs or runners. Instead, it should be arranged away from traffic areas to prevent tripping hazards.

The heater draws 12.5 amps during operation. To prevent circuit overload, it should not be plugged into a circuit that is already powering other appliances. A loose fit between the AC outlet and the plug can cause overheating and distortion of the plug; in such cases, a qualified electrician should replace the loose or worn outlet. To disconnect the heater, users should first turn off the touch screen and the machine, then grip the plug and pull it from the outlet, never pulling by the cord.

Foreign objects should not be allowed to enter ventilation or exhaust openings, as this could cause electric shock, fire, or damage to the heater. To prevent fire, air intakes or exhaust should not be blocked, and the heater should not be used on soft surfaces like a bed, where openings might become blocked. The heater contains hot, arcing, or sparking parts inside, so it should not be used in areas where gasoline, paint, or flammable liquids are used or stored.

This heater should only be used as described in the manual; any other use not recommended by the manufacturer could lead to fire, electric shock, or injury. The use of an extension cord is generally discouraged due to the risk of overheating and fire. However, if an extension cord must be used, it should be at least No.14 AWG minimum size and rated not less than 1500 watts. The heater is not recommended for persons with reduced sensitivity to heat or an inability to react to avoid burns.

Components and Controls

The Elechelf PTC Space Heater features a sleek, tall design with a black mesh body and silver accents on the top and bottom. Key components include:

Touch Screen: Located on the top surface, this is the primary interface for controlling the heater.
Handle: A convenient carry handle is integrated into the design, making it easy to move the portable heater from room to room.
Mesh: The main body of the heater is covered with a mesh, likely for air intake and heat dissipation.
Plastic Shell: The outer casing of the heater.

The touch screen offers various functions:

ON/OFF: A power button to turn the heater on or off.
Oscillation: A button to start or stop the heater's 90° oscillation, allowing for wider heat distribution.
Timer: A button to set the timer from 1 hour to 12 hours.
Temperature Increase (+): Increases the temperature setting up to 99°F.
Temperature Decrease (-): Decreases the temperature setting down to 41°F.
Mode (M): Cycles through different heating modes: Fan Only, LO (900W), HI (1500W), and ECO Mode.

Operating the Touch Screen:

Power On/Off: Click the power icon to turn the touch screen on or off, indicating the device is powered up.
Display Room Temperature: Click the power icon again to turn the heater "ON" and display the current room temperature.
Switch to Fan Mode: Click the "M" button to activate Fan mode.
Switch to LO Mode (900W): Click the "M" button to select LO mode for low heat (900W).
Switch to HI Mode (1500W): Click the "M" button to select HI mode for high heat (1500W).
Switch to ECO Mode: Click the "M" button to enter ECO mode, which allows for temperature adjustment.
Set Timer: Click the timer icon to set the operating duration from 1 to 12 hours.
Start/Stop Oscillation: Click the oscillation icon to activate or deactivate the 90° oscillation.
Adjust Thermostat in ECO Mode: In ECO mode, click the "M" button to adjust the thermostat from 41°F to 99°F in 1°F increments. In ECO mode, the space heater automatically adjusts its output based on the ambient temperature.

Remote Control Functions:

The heater also comes with a remote control that mirrors the touch screen functions:

POWER: ON/OFF button.
MODE: Cycles through Fan Only, LO (900W), HI (1500W), and ECO Mode.
OSC: Starts or stops 90° oscillation.
TIMER: Sets the timer from 1 to 12 hours.
UP: Increases temperature up to 99°F.
DOWN: Decreases temperature down to 41°F.
In ECO mode, the remote control can also be used to adjust the thermostat from 41°F to 99°F in 1°F increments.

Maintenance and Storage

Regular cleaning and proper storage are essential for the longevity and performance of the heater. The manual recommends cleaning the heater at least once a month and before off-season storage.

Cleaning: Turn off and unplug the heater, then allow it to cool completely. Use a dry cloth to clean the external surfaces. It is crucial NOT to use water, wax, polish, or any chemical solutions for cleaning.
Storage: Pack the heater in its original container and store it in a cool, dry place.
Lubrication: Users are advised not to disassemble the heater. Its motor is factory lubricated for life and does not require any further lubrication.

Troubleshooting

The manual includes a troubleshooting guide for common issues:

Heater not turning on/no warm air:
- Reason: Power plug unplugged or socket loose.
- Method: Insert the power plug correctly into the socket, or adjust the socket if loose.
- Reason: Product placement unstable (Tip-over Protection activated).
- Method: Place the heater on a flat and stable surface.
Power plug abnormally hot:
- Reason: Using a power strip or extension cord.
- Method: Use the socket alone (plug directly into the wall outlet).
Peculiar smell:
- Reason: A slight peculiar smell is normal during the first use.
- Method: The smell will dissipate with continued use.
Heater fails to work (general):
- Ensure the heater is plugged in correctly and the outlet is working.
- Check for obstructions; if found, turn off, unplug, wait 10 minutes to cool, remove obstruction, then plug back in and restart.
- If issues persist, unplug and have the appliance serviced by authorized personnel only.
- Check if the thermostat is set too low; adjust it using the remote control until the heater restarts.

Customer Care Service

Elechelf offers a 12-month warranty for the heater. During this period, customers are entitled to a free replacement or refund for quality problems. Users are encouraged to contact customer service first for solutions to improve products and after-sale service. Technical support is available via email at service@elechelf.com. The manufacturer is Ningbo Hailian Electric Appliance Technology Co.,Ltd., located in Xinpu industrial east zone, Xinpu Town, Cixi City, Zhejiang, China. Elechelf can also be found on social media platforms and their website, www.elechelf.com. The product is ETL listed and proudly "MADE IN CHINA."
