The Elecrow ESP32 Display is a versatile HMI (Human-Machine Interface) device designed for a wide range of applications, from hobbyist projects to industrial control systems. It integrates an ESP32 or ESP32-S3 microcontroller with a display, offering a compact and powerful solution for interactive user interfaces.

Function Description:

The primary function of the Elecrow ESP32 Display is to provide an interactive visual interface for embedded systems. It combines the processing power and connectivity of an ESP32/ESP32-S3 module with a display, allowing users to create graphical user interfaces (GUIs) for controlling devices, displaying data, and interacting with various sensors and actuators. The integrated microcontroller supports Wi-Fi and Bluetooth connectivity, enabling network-connected applications and wireless communication. Depending on the model, it features either a resistive or capacitive touch screen, providing intuitive user input. The device is designed to be easily programmable, with support for Arduino libraries and LVGL (Light and Versatile Graphics Library), making it accessible for developers of all skill levels.

Important Technical Specifications:

The Elecrow ESP32 Display series comes in various sizes, each with distinct specifications:

2.4-inch Display:
- Resolution: 240x320
- Touch Type: Resistive Touch
- Main Processor: ESP32-WROOM-32-N4
- Frequency: 240 MHz
- Flash: 4MB
- SRAM: 520KB
- ROM: 448KB
- PSRAM: Not applicable
- Display Driver: ILI9341V
- Screen Type: TFT
- Interface: 1x UART0, 1x UART1, 1x I2C, 1x GPIO, 1x Battery
- Speaker Jack: Yes
- TF Card Slot: Yes
- Color Depth: 262K
- Active Area (W*H): 36.72 x 48.96 mm
2.8-inch Display:
- Resolution: 240x320
- Touch Type: Resistive Touch
- Main Processor: ESP32-WROOM-32-N4
- Frequency: 240 MHz
- Flash: 4MB
- SRAM: 520KB
- ROM: 448KB
- PSRAM: Not applicable
- Display Driver: ILI9341V
- Screen Type: TFT
- Interface: 1x UART0, 1x UART1, 1x I2C, 1x GPIO, 1x Battery
- Speaker Jack: Yes
- TF Card Slot: Yes
- Color Depth: 262K
- Active Area (W*H): 43.2 x 57.6 mm
3.5-inch Display:
- Resolution: 320x480
- Touch Type: Resistive Touch
- Main Processor: ESP32-WROOM-32-N4
- Frequency: 240 MHz
- Flash: 4MB
- SRAM: 520KB
- ROM: 448KB
- PSRAM: Not applicable
- Display Driver: ILI9488
- Screen Type: TFT
- Interface: 1x UART0, 1x UART1, 1x I2C, 1x GPIO, 1x Battery
- Speaker Jack: Yes
- TF Card Slot: Yes
- Color Depth: 262K
- Active Area (W*H): 48.96 x 73.44 mm
4.3-inch Display:
- Resolution: 480x272
- Touch Type: Resistive Touch
- Main Processor: ESP32-S3-WROOM-1-N4R2
- Frequency: 240 MHz
- Flash: 4MB
- SRAM: 512KB
- ROM: 384KB
- PSRAM: 2MB
- Display Driver: ST7282
- Screen Type: TFT
- Interface: 1x UART0, 1x UART1, 1x GPIO, 1x Battery
- Speaker Jack: Yes
- TF Card Slot: Yes
- Color Depth: 16M
- Active Area (W*H): 95.04 x 53.86 mm
5.0-inch Display:
- Resolution: 800x480
- Touch Type: Capacitive Touch
- Main Processor: ESP32-S3-WROOM-1-N4R8
- Frequency: 240 MHz
- Flash: 4MB
- SRAM: 512KB
- ROM: 384KB
- PSRAM: 8MB
- Display Driver: ILI6122 or ILI5960
- Screen Type: TFT
- Interface: 2x UART0, 1x GPIO, 1x Battery
- Speaker Jack: Yes
- TF Card Slot: Yes
- Color Depth: 16M
- Active Area (W*H): 108 x 64.8 mm
7.0-inch Display:
- Resolution: 800x480
- Touch Type: Capacitive Touch
- Main Processor: ESP32-S3-WROOM-1-N4R8
- Frequency: 240 MHz
- Flash: 4MB
- SRAM: 512KB
- ROM: 384KB
- PSRAM: 8MB
- Display Driver: EK9716BD3 or EK73002ACGB
- Screen Type: TFT
- Interface: 2x UART0, 1x GPIO, 1x Battery
- Speaker Jack: Yes
- TF Card Slot: Yes
- Color Depth: 16M
- Active Area (W*H): 153.84 x 85.63 mm

All models include a USB-A to Type-C Cable and a Crowtail/Grove to 4pin DuPont Cable. The 2.4-inch, 2.8-inch, and 3.5-inch models, which feature resistive touch, also come with a Resistive Touch Pen. The 5-inch and 7-inch displays, being capacitive, do not include a pen.

Usage Features:

The Elecrow ESP32 Display is designed for ease of use and broad applicability.

Connectivity: It offers multiple interfaces including UART (UART0, UART1), I2C, and GPIO pins, allowing for flexible integration with external sensors, modules, and other microcontrollers. The presence of a speaker jack enables audio output for alerts, notifications, or multimedia.
Storage: All models include a TF card slot for expandable storage, useful for storing images, fonts, data logs, or larger application programs.
Power Management: The inclusion of a battery interface on all models indicates support for portable and battery-powered applications, enhancing its versatility for mobile or remote deployments.
Programming Flexibility: The device is highly programmable, leveraging the ESP32/ESP32-S3 ecosystem. It supports Arduino libraries, making it accessible to a large community of developers. Furthermore, its compatibility with LVGL (Light and Versatile Graphics Library) allows for the creation of sophisticated and visually appealing GUIs with relatively low resource consumption. Elecrow provides 16 learning lessons for LVGL, along with source code and schematic diagrams, to assist users in getting started.
User Input: Depending on the model, either a resistive or capacitive touch screen provides direct user interaction. Resistive touch models come with a stylus for precise input, while capacitive touch models offer a more modern, multi-touch capable experience.
Physical Buttons: Each display features several physical buttons for essential functions:
- BOOT: For entering bootloader mode, typically used for flashing new firmware.
- RESET: To restart the device.
- UART0/UART1: Serial communication interfaces.
- I2C: Two-wire serial interface for connecting low-speed peripheral ICs.
- GPIO_D: General Purpose Input/Output pins for custom connections.
- PWR: Power indicator.
- BAT: Battery indicator.
- TF: TF card slot.
- SPK: Speaker output.
- Type-C: USB Type-C port for power and data communication (on 7.0-inch model).

Maintenance Features:

To ensure the longevity and proper functioning of the Elecrow ESP32 Display, several safety and maintenance guidelines are provided:

Environmental Protection: Avoid exposing the screen to direct sunlight or strong light sources. This helps prevent degradation of the display's viewing effect and extends its lifespan.
Physical Handling: Do not press or shake the screen forcefully during use. This can lead to loosening of internal connections and components, potentially causing malfunctions.
Troubleshooting: In case of screen malfunctions such as flickering, color distortion, or unclear display, users are advised to stop using the device immediately and seek professional repair. This prevents further damage and ensures safety.
Power Disconnection: Before attempting any repair or replacement of equipment components, it is crucial to turn off the power and disconnect the device from its power source. This is a fundamental safety measure to prevent electrical shock and damage to the device.
Documentation and Support: Elecrow provides comprehensive resources for maintenance and development, including schematic diagrams, source code, ESP32 series datasheets, Arduino libraries, and LVGL learning lessons. Technical support is available via email (techsupport@elecrow.com) and through their official website (https://www.elecrow.com). These resources are invaluable for diagnosing issues, performing repairs, and understanding the device's internal workings.

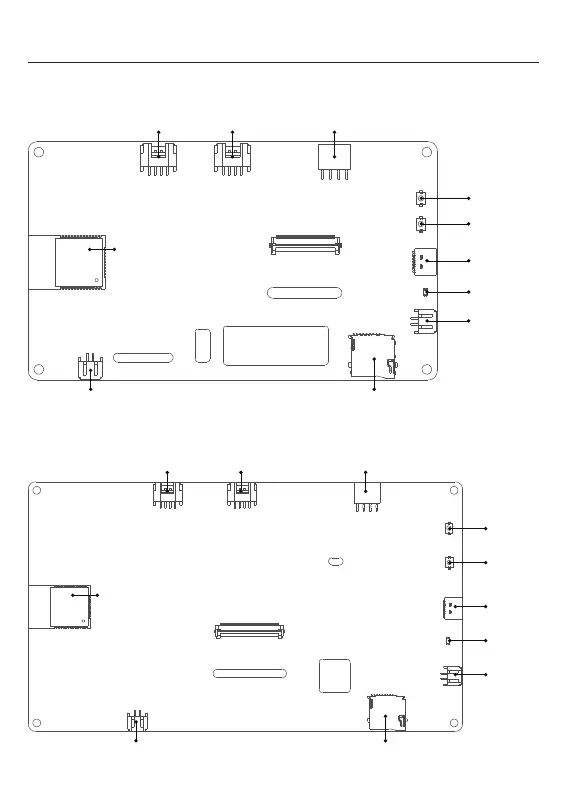

Elecrow ESP32 - Screen Interfaces - 5.0 and 7.0 Inch Displays; 5.0 Inch HMI Display; 7.0 Inch HMI Display
