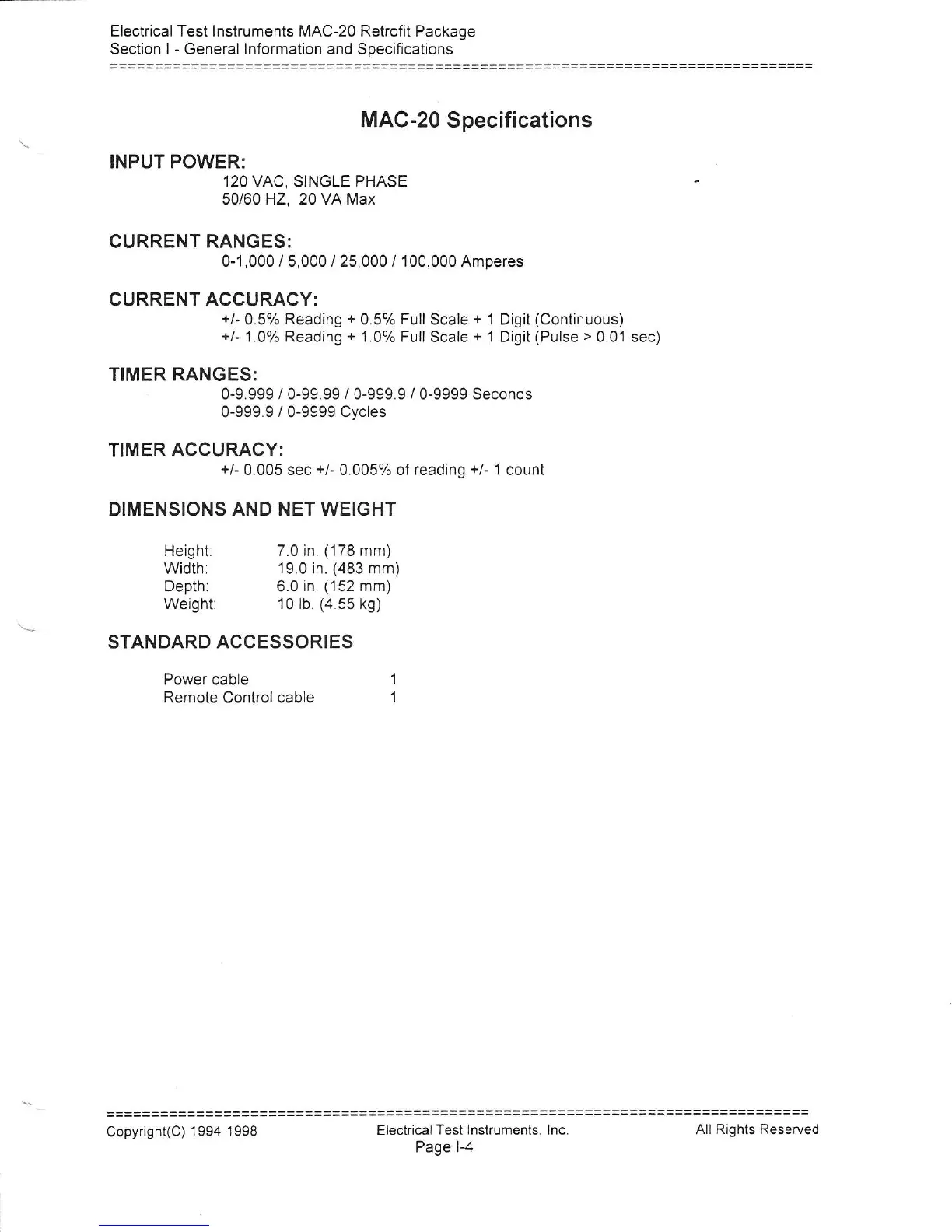

MAC-20 Specifications
INPUT POWER:
120 VAC, SINGLE PHASE
50/60 HZ, 20 VA Max
CURRENT RANGES:
0-1,000 / 5,000 / 25,000 / 100,000 Amperes
CURRENT ACCURACY:
+^
0.5%
Reading
+
0.5%
Full
Scale
+
1 Digit
(Continuous)
+/-'1.0%
Reading
+
1.0% Full Scale
+
1 Digit
(Pulse
>
0.0'l sec)
TIMER RANGES:
0-9.999 / 0-99.99 / 0-999.9 / 0-9999 Seconds
0-999.9
/
0-9999 Cycles
TIMER
ACCURACY:
+/-
0.005 sec
+l
0.005% of reading
+/-
1 count
DIMENSIONS
AND
NET
WEIGHT
Height: 7.0 in.
(178
mm)
Width: 19.0 in.
(483
mm)
Depth: 6.0
in.
(152
mm)
Weight: 10|b.
(4.55
kg)
STANDARD ACCESSORIES
Power cable
1
Remote Control cable
I
