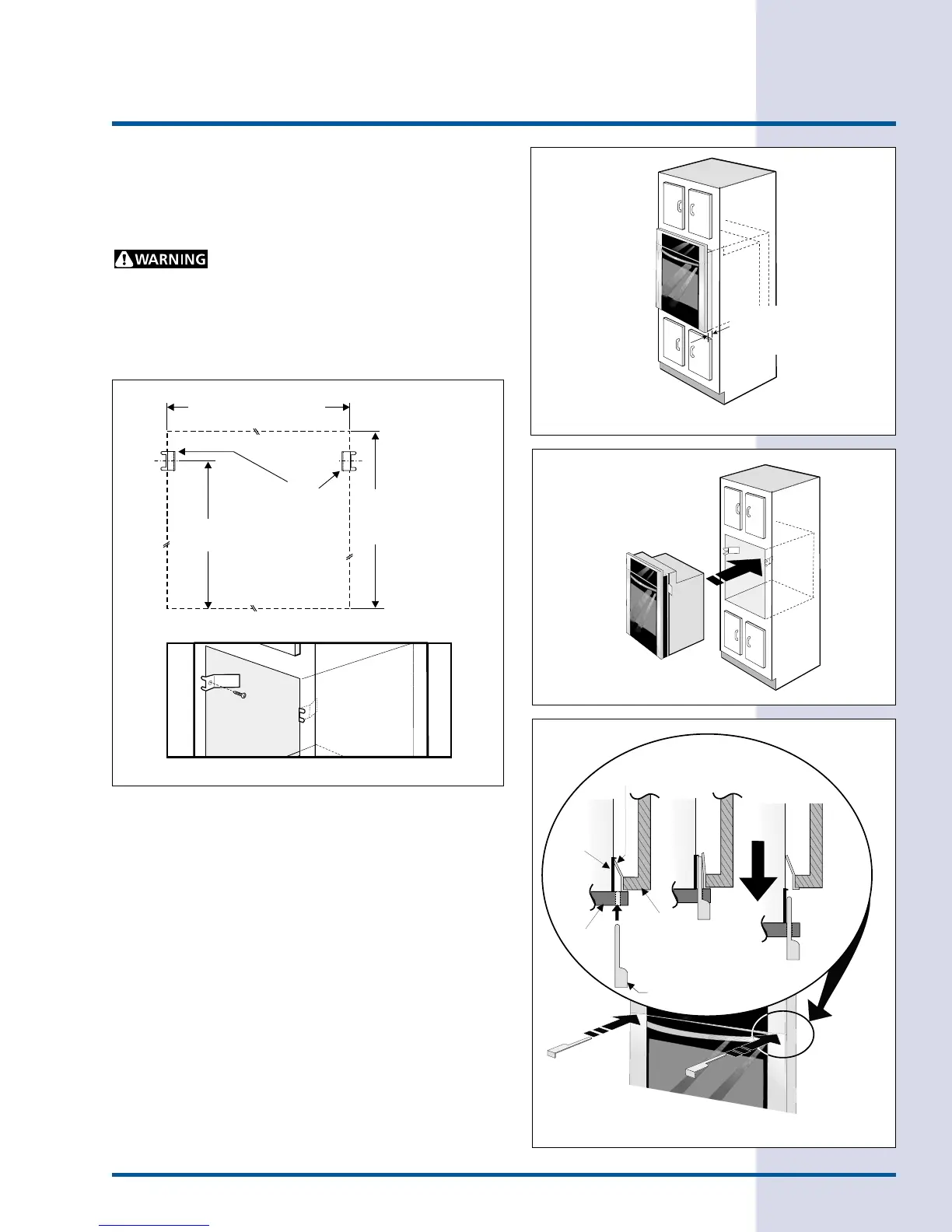

Section A - Installation Instructions
Cabinet Installation
The wall oven can tip when the door is open. The anti-
tip brackets supplied with the wall oven must be
attached to the cabinet and the appliance to prevent
tipping of the wall oven and injury to persons.
Anti-Tip Brackets Installation Instructions
1.Unpack the wall oven and find the 2 anti-tip brackets and
screws included in the literature package.
2. Install the anti-tip bracket in the cabinet as shown on figure 4.
Note: To prevent damage to cabinet, it is recommended to drill
1/16" (0.16 cm) dia. pilot holes before installing the anti-tip
brackets.
3. Insert the unit into the cabinet opening. Slide unit inward leaving
1 1/2" (3.8 cm) clearance between the oven and front of cabinet
(see Figure 5). Pull the armored cable through the hole in the
floor and toward the junction box while moving the appliance
inward.
4. Push the unit in and against the cabinet, then the oven side
bracket will clip in the one you just install on the side of the
cabinet opening (see figure 6).
To pull out the oven for servicing insert the tool supplied with the
appliance both side at the same time in the hole located on the
side frame and visible when the door is opened. After inserting
the tool pull the oven towards you (see figure 7).
5. For typical under counter installation of an electric built-in oven
with an electric cooktop above, see Figure 8.
6. For typical under counter installation of an electric built-in oven
with a gas cooktop mounted above, see Figure 9.
Figure 5
1 1/2" (3.8 cm)
clearance
between unit
Figure 7
Anti-tip bracket installed
in cabinet
Oven
Bracket
Oven
Right Side
Tool supplied
Anti-tip
bracket
released
Cabinet
Oven removed
from the cabinet
Figure 4
* Recommended Cutout Width is 28 1/2" (72.4 cm)
Anti-Tip Brackets
23 1/2"
(59.7 cm)
28 1/8"
(71.4 cm) Min.
28 7/8"
(73.3 cm) Max.
Cutout Dimensions
28 1/2" (72.4 cm) Min.*
29" (73.7 cm) Max.*
