de
4

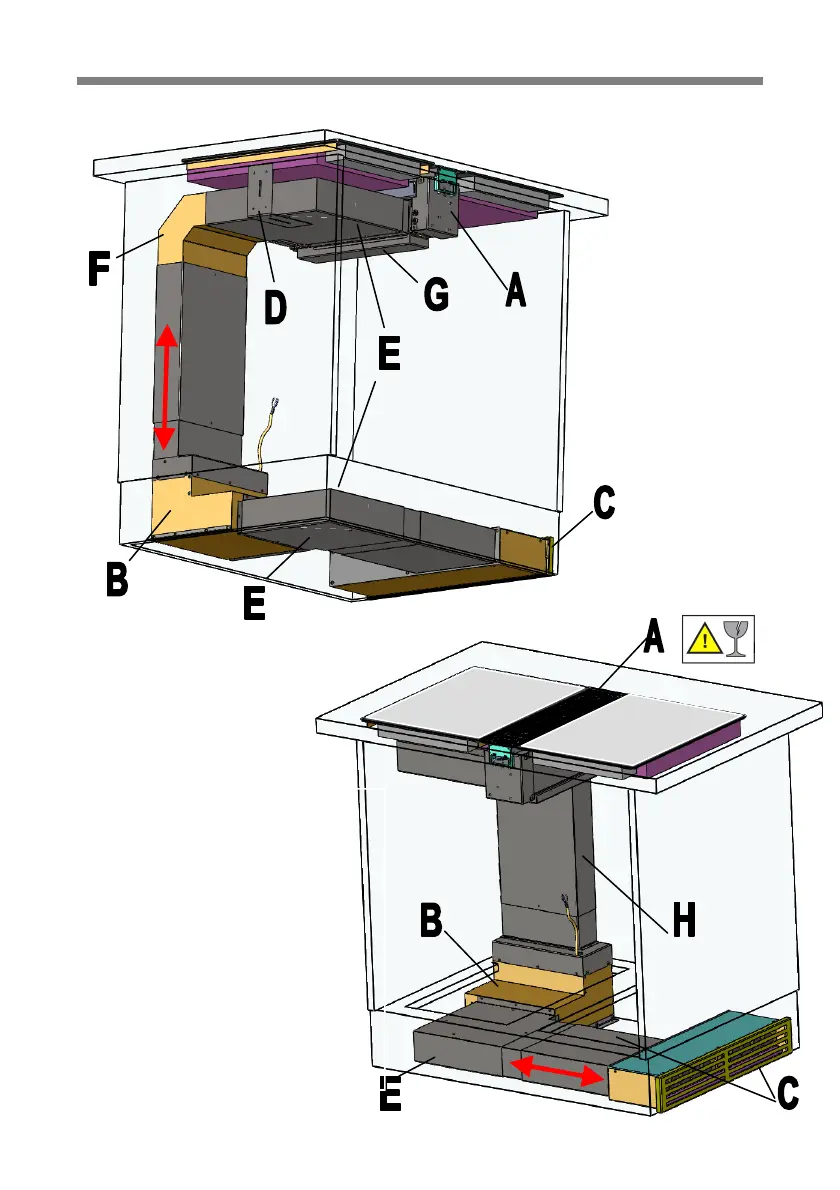

A
= Kochfelddunstabzug:
DMPL0140SW
B = Gebläsemotor
C
= ULSLLF80 (optional)
Umluftbox, Kanal horizontal
D
= Befestigungswinkel
E
= BOGEN90 90° Bogen horizontal
F
= 90° Bogen vertical
G
= Auffangschale Flüssigkeit 0,5 ltr.
H
= Flachkanal teleskopisch
Produktbeschreibung
durch Drücken der Austaste
