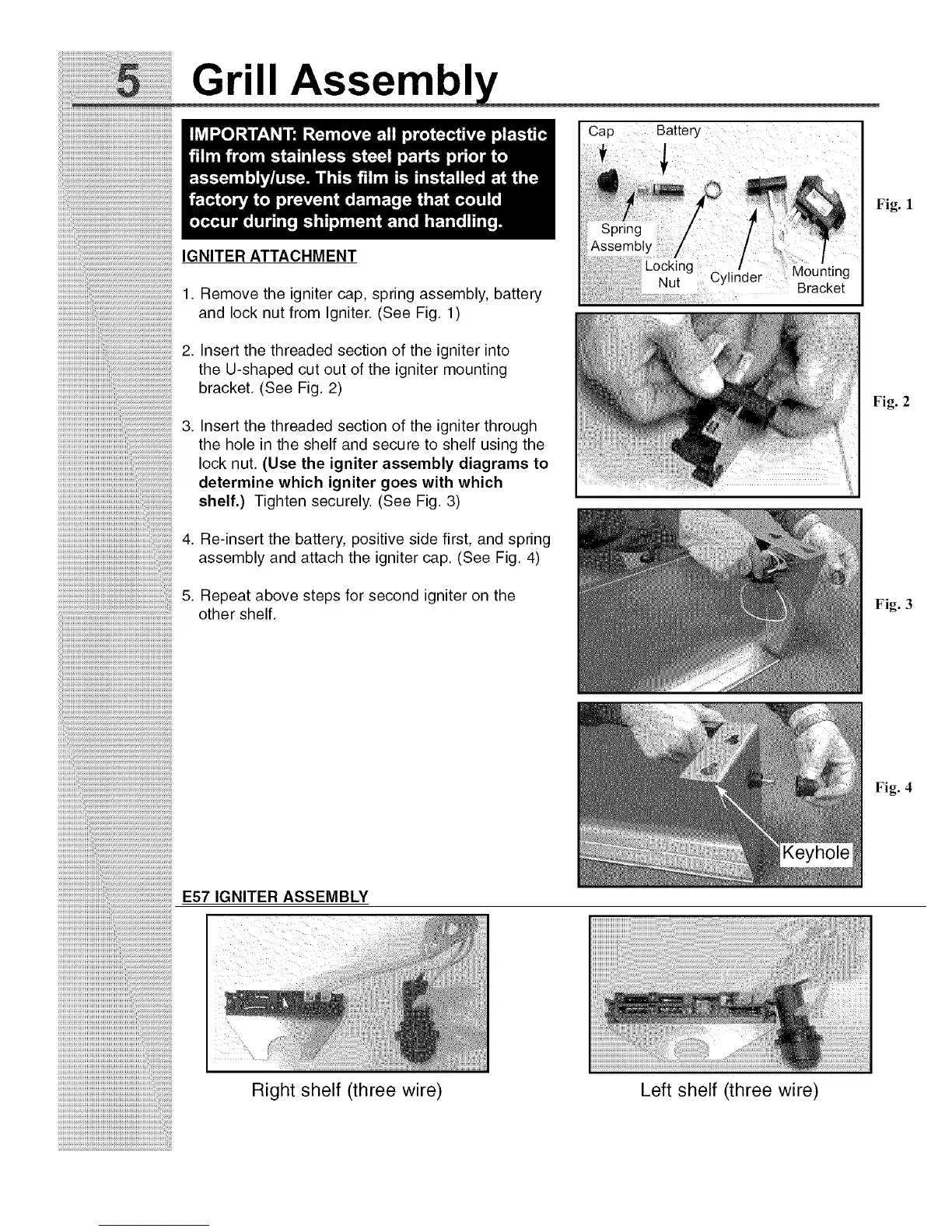

Grill Assemb
IGNITER ATTACHMENT
1. Remove the igniter cap, spring assembly, battery
and lock nut from Igniter. (See Fig. 1)
Insert the threaded section of the igniter into
the U-shaped cut out of the igniter mounting
bracket. (See Fig. 2)
Insert the threaded section of the igniter through
the hole in the shelf and secure to shelf using the
lock nut. (Use the igniter assembly diagrams to
determine which igniter goes with which
shelf.) Tighten securely. (See Fig. 3)
Re-insert the battery, positive side first, and spring
assembly and attach the igniter cap. (See Fig. 4)
Repeat above steps for second igniter on the
other shelf.
Cap Battery
Bracket
Fig. 1
Fig. 2
Fig. 3
Fig. 4
E57 IGNITER ASSEMBLY
Right shelf (three wire) Left shelf (three wire)
