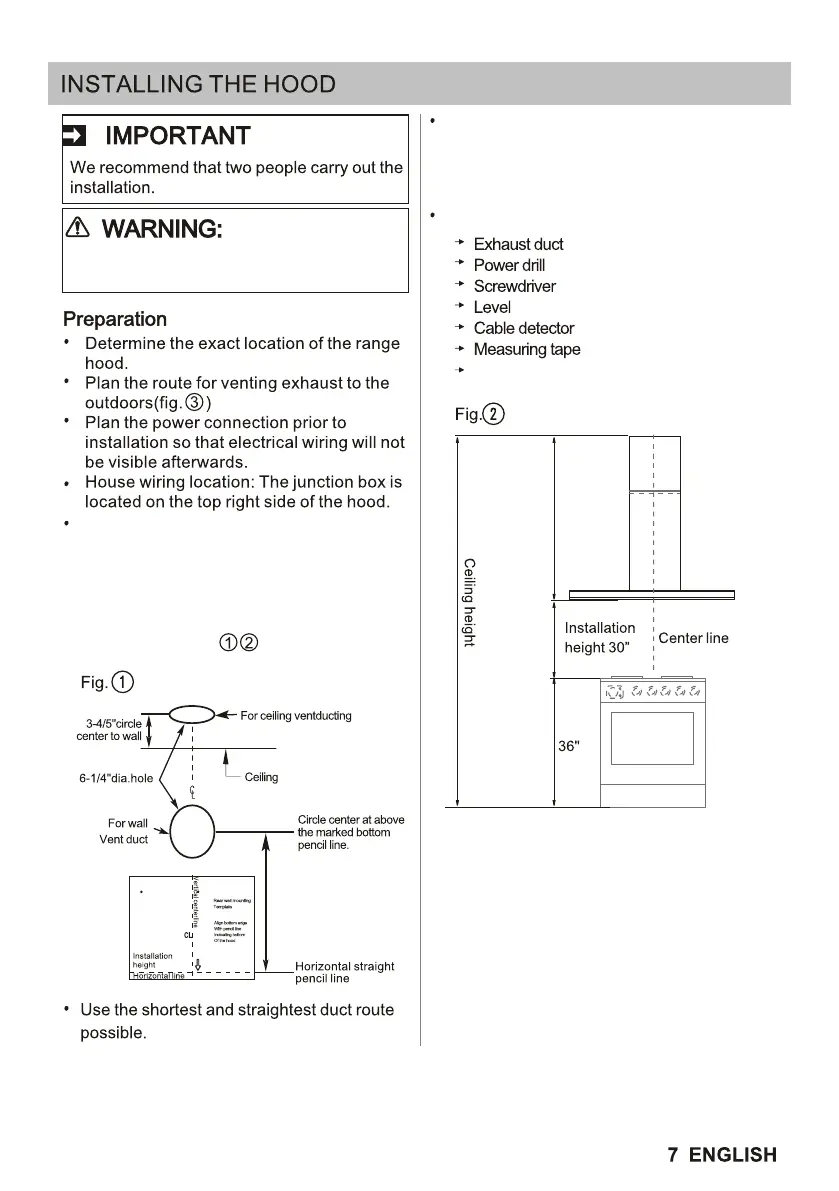

Wiring should enter the back wall at
least 20" above the bottom of the hood
at height install and be contained within
the flue covers.
It is best if the wiring is located offset to
the right of center to avoid interference
with ducting(Fig. ).
Any wall modifications needed (i.e.
support structure, wiring, ducting) must
be completed prior to installation of the
range hood.
Tools Required (not included):
Foil backed tape
Turn off electrical power at service
entrance before wiring.
