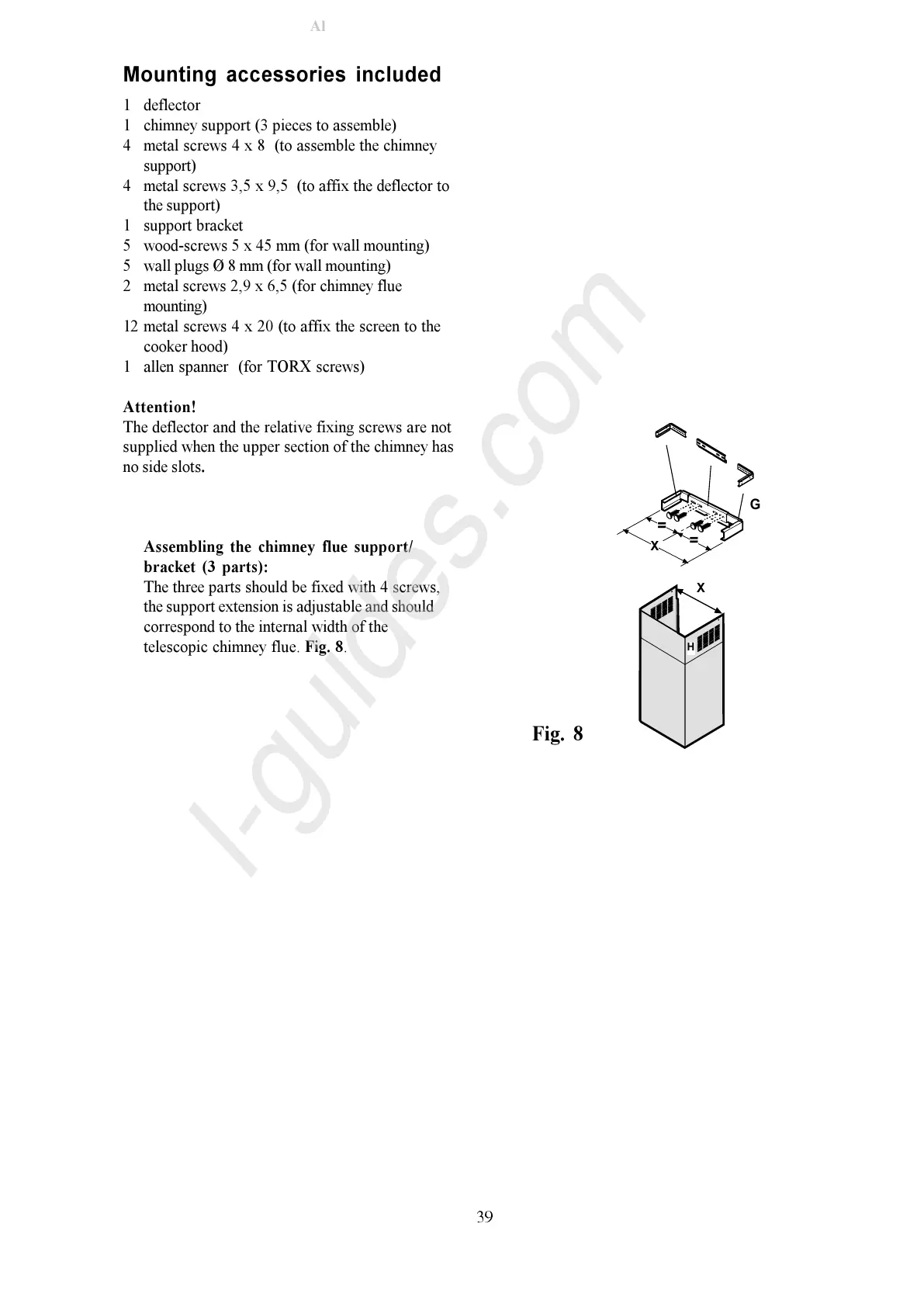

Mounting accessories included
1 deflector
1 chimney support (3 pieces to assemble)
4 metal screws 4 x 8 (to assemble the chimney
support)
4 metal screws 3,5 x 9,5 (to affix the deflector to
the support)
1 support bracket
5 wood-screws 5 x 45 mm (for wall mounting)
5 wall plugs Ø 8 mm (for wall mounting)
2 metal screws 2,9 x 6,5 (for chimney flue
mounting)
12 metal screws 4 x 20 (to affix the screen to the
cooker hood)
1 allen spanner (for TORX screws)
Attention!
The deflector and the relative fixing screws are not
supplied when the upper section of the chimney has
no side slots.
Assembling the chimney flue support/
bracket (3 parts):
The three parts should be fixed with 4 screws,
the support extension is adjustable and should
correspond to the internal width of the
telescopic chimney flue. Fig. 8.
