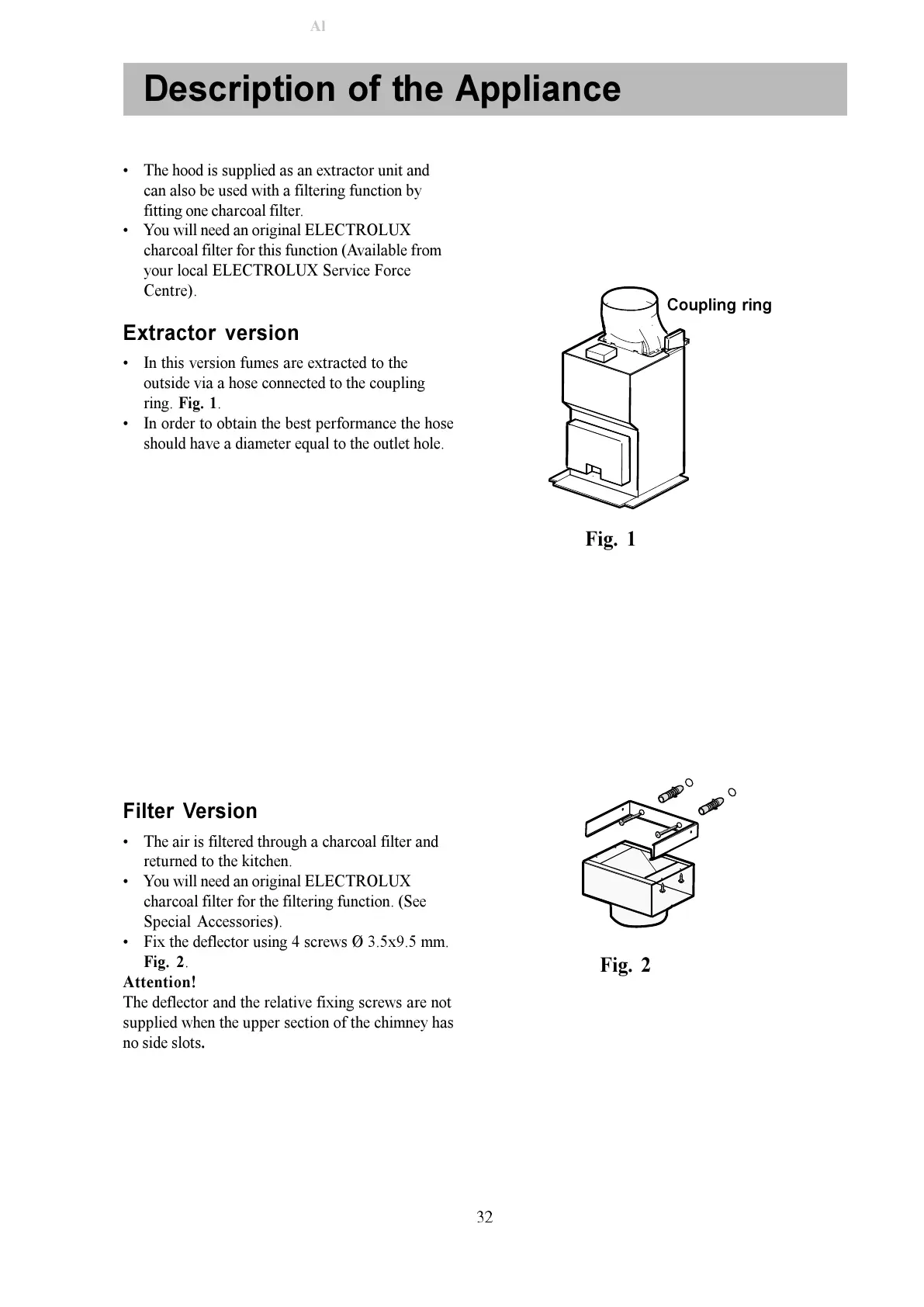

Description of the Appliance
The hood is supplied as an extractor unit and
can also be used with a filtering function by
fitting one charcoal filter.
You will need an original ELECTROLUX
charcoal filter for this function (Available from
your local ELECTROLUX Service Force
Centre).
Extractor version
In this version fumes are extracted to the
outside via a hose connected to the coupling
ring. Fig. 1.
In order to obtain the best performance the hose
should have a diameter equal to the outlet hole.
Fig. 1
Filter Version
The air is filtered through a charcoal filter and
returned to the kitchen.
You will need an original ELECTROLUX
charcoal filter for the filtering function. (See
Special Accessories).
Fix the deflector using 4 screws Ø 3.5x9.5 mm.
Fig. 2.
Attention!
The deflector and the relative fixing screws are not
supplied when the upper section of the chimney has
no side slots.
Fig. 2
Coupling ring
