DOC. NO. 5956.65J.00 P. 162 / 174
EFS - Dishwashing Systems Platform
Electrolux Professional
KEY
CN1 Rinse pump/wash pump/solenoid valve outputs
CN2 Pressure/atmospheric dishwasher solenoid valve connection
CN3 ECOTEMP transformer, detergent/rinse aid dispenser and drain pump outputs
CN5 Tank/boiler temperature sensor inputs
CN8 Energy peak controller input
CN11 Hood lock electromagnet output
CN12 User interface inputs/outputs
CN15 Overflow/tank level/board feed input
CN16 User interface inputs/outputs and hood/door sensor input

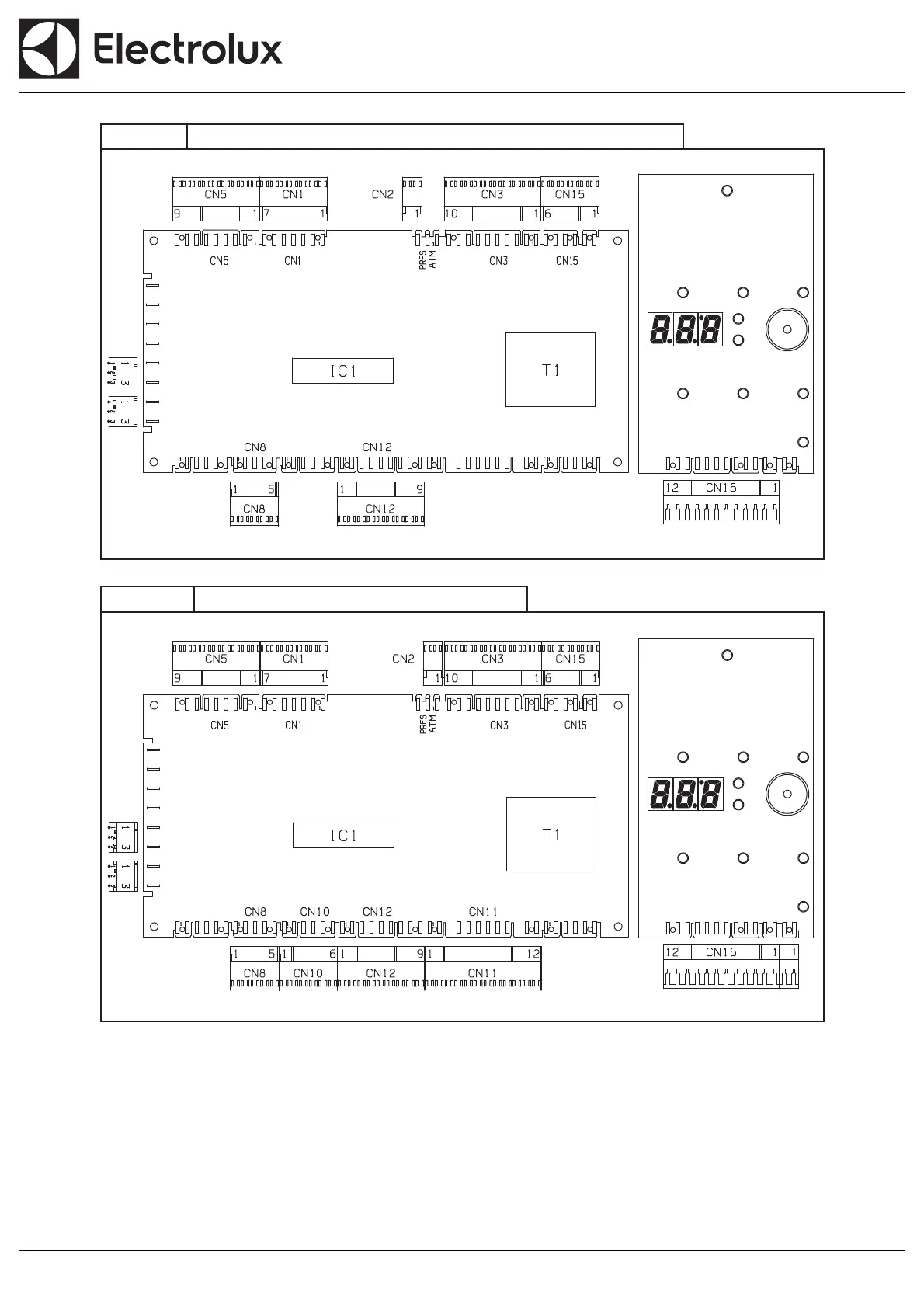

LAYOUT 15
ZHTAAU / EHTAAU
LAYOUT 13 NHT / EHT / KHT
