EFS - Dishwashing Systems Platform
Electrolux Professional
KEY
CN1 Rinse pump/wash pump/solenoid valve outputs
CN2 Pressure/atmospheric dishwasher solenoid valve connection
CN3 Detergent/rinse aid dispenser and drain pump outputs
CN5 Tank/boiler temperature sensor inputs
CN7 Detergent/rinse aid level sensors input
CN8 Energy peak controller input
CN12 User interface inputs/outputs
CN15 Overflow/tank level/board feed input
CN16 User interface inputs/outputs and hood/door sensor input
CN17 Door microswitch connection

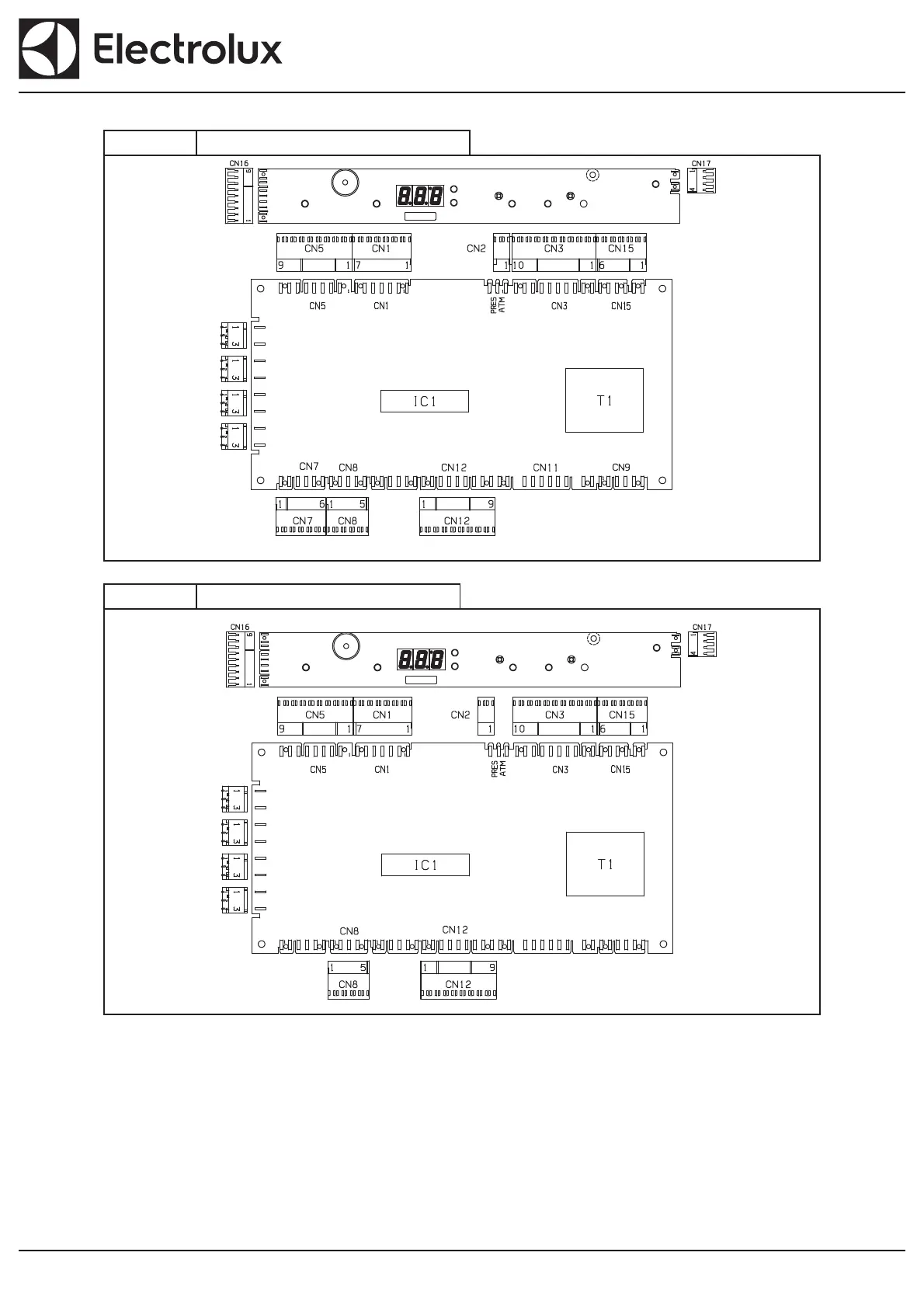

LAYOUT 18 EUCAICL
LAYOUT 19 EUCIM / EUCIM60
