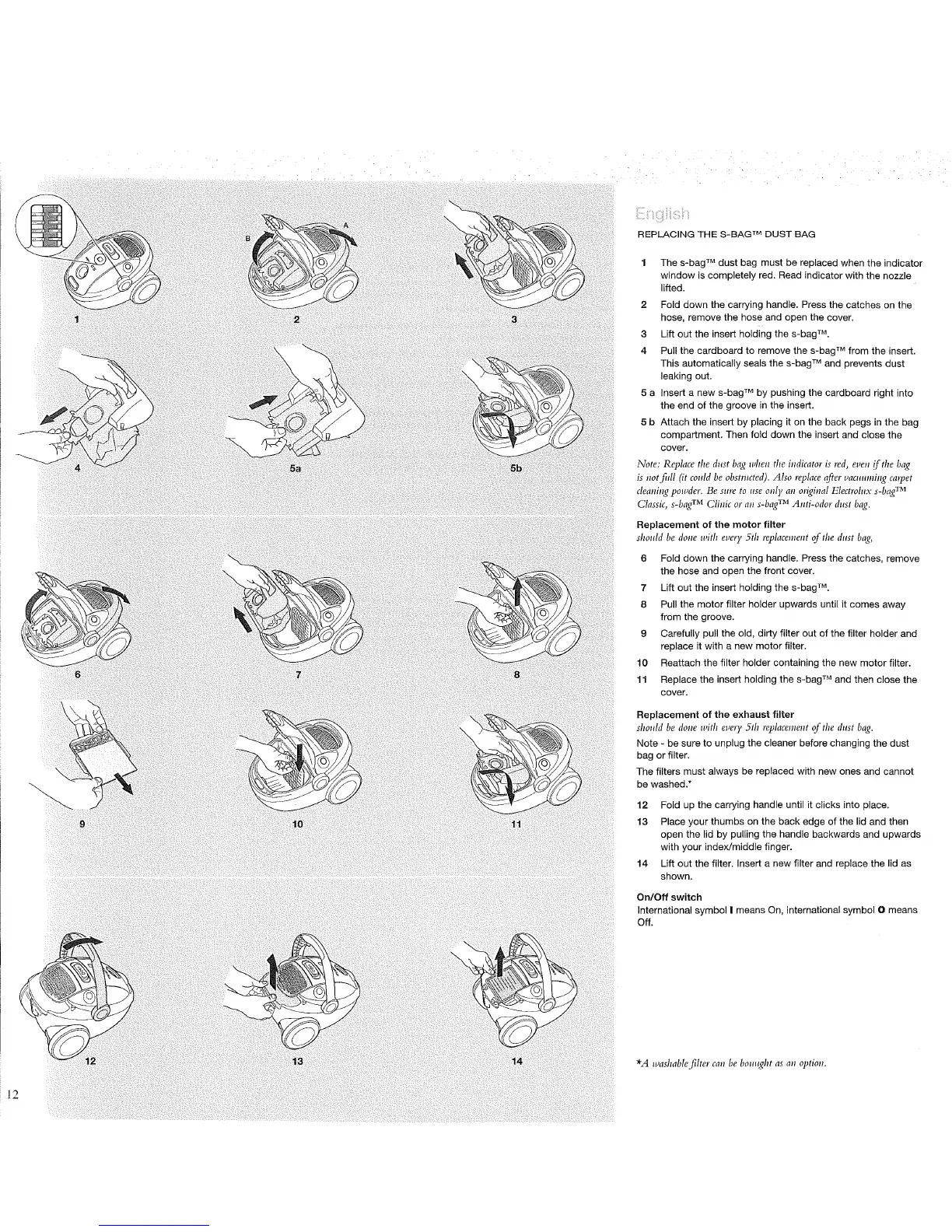

REPLACING THE S-BAG TM DUST BAG
1 The s-bag TM dust bag must be replaced when the indicator
window is completely red. Read indicator with the nozzle
lifted.
2 Fold down the carrying handle. Press the catches on the
hose, remove the hose and open the cover.
3 Lift out the insert holding the s-bag TM.
4 Pull the cardboard to remove the s-bag TM from the insert.
This automatically seals the s-bag TM and prevents dust
leaking out.
5 a Insert a new s-bag TM by pushing the cardboard right into
the end of the groove in the insert.
5 b Attach the insert by placing it on the back pegs in the bag
compartment. Then fold down the insert and close the
cover,
Note: Replace the dust bag when the iHdicator is _d, even if the bag
is not fill (it could be obstructed). Also replace after vaclmmit_g calpet
cleaning powder. Be sure to use only atl original Electrolux s-bag TM
Classic, s-bag TM CliHic or an s-bag TM Anti-odor dust bag.
Replacement of the motor filter
should be dot_ewith eve_y 5tit replacemem of the dust halo,
6 Fold down the carrying handle. Press the catches, remove
the hose and open the front cover.
7 Lift out the insert holding the s-bag TM.
8 Pull the motor filter holder upwards until it comes away
from the groove.
9 Carefully pull the old, dirty filter out of the filter holder and
replace it with a new motor filter.
10 Reattach the filter holder containing the new motor filter.
11 Replace the insert holding the s-bag TM and then close the
cover.
Replacement of the exhaust filter
should be dotte with every 5th replacement of the dust bag.
Note - be sure to unplug the cleaner before changing the dust
bag or filter.
The filters must always be replaced with new ones and cannot
be washed.*
12 Fold up the carrying handle until it clicks into place.
13 Place your thumbs on the back edge of the lid and then
open the lid by pulling the handle backwards and upwards
with your index/middle finger.
14 Lift out the filter. Insert a new filter and replace the lid as
shown.
On/Off switch
International symbol I means On, international symbol 0 means
Off.
*A umshable f!lter can be boul_oohtMSall optiotl.
