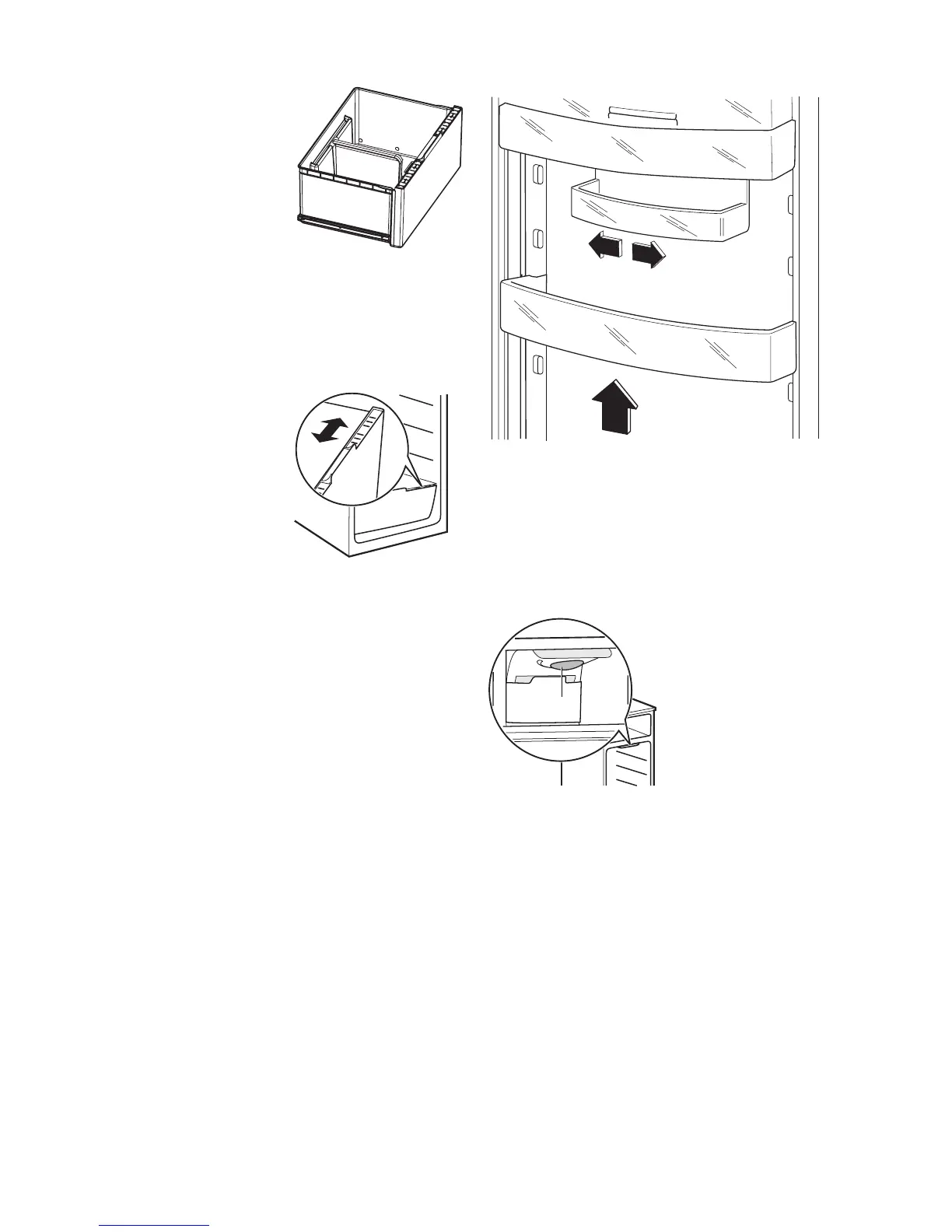

There is a separator
inside the drawer
that can be placed in
different positions to
allow for the subdivi-
sion best suited to
personal needs.
There is a grille (if
foreseen) on the bot-
tom of the drawer to
separate the fruit and vegetables from any
humidity that may form on the bottom sur-
face.
All parts inside the drawer can be removed
for cleaning purposes
To regulate the hu-
midity in the vegeta-
ble drawer there is a
device with slits (ad-
justable by means of
a sliding lever).
When the ventilation
slots are closed:
the natural moisture
content of the food
in the fruit and vegetable compartments is
preserved for longer.
When the ventilation slots are opened:
more air circulation results in a lower air mois-
ture content in the fruit and vegetable com-
partments.
Positioning the door shelves
To permit storage of food packages of vari-
ous sizes, the door shelves can be placed
at different heights.
To make these adjustments proceed as fol-
low: gradually pull the shelf in the direction
of the arrows until it comes free, then repo-
sition as required.
Air cooling
The Dynamic Air Cooling (DAC) fan let food
cool quickly and a more uniform tempera-
ture in the compartment.
You can switch on the fan by pressing the
switch shown in the picture. The green light
comes on.
B
Important! Switch on the fan when the
ambient temperature exceeds 25°C.
Ice-cube production
This appliance is equipped with one or
more trays for the production of ice- cubes.
These are insert on the sides of the upper
freezer drawer.
Pull out the upper freezer drawer. Extract
the ice-tray. Pull out the tap. Fill with water
to the limit indicated "MAX".
Refit the tap and insert the tray in the appro-
priate place.
To remove the ice cubes rotate the tray
with the ice needles towards the top and hit
on a rigid surface.
To semplify the release of the ice needles it
is recommended to keep the closed tray un-
8 electrolux
