Spares Operation 08.01 A. B. 599 51 19 69 EN
Routine 6 see basic setting 1 5
6
white
routine number
012
red
temperature
code
Routine 5 see basic setting 1 5

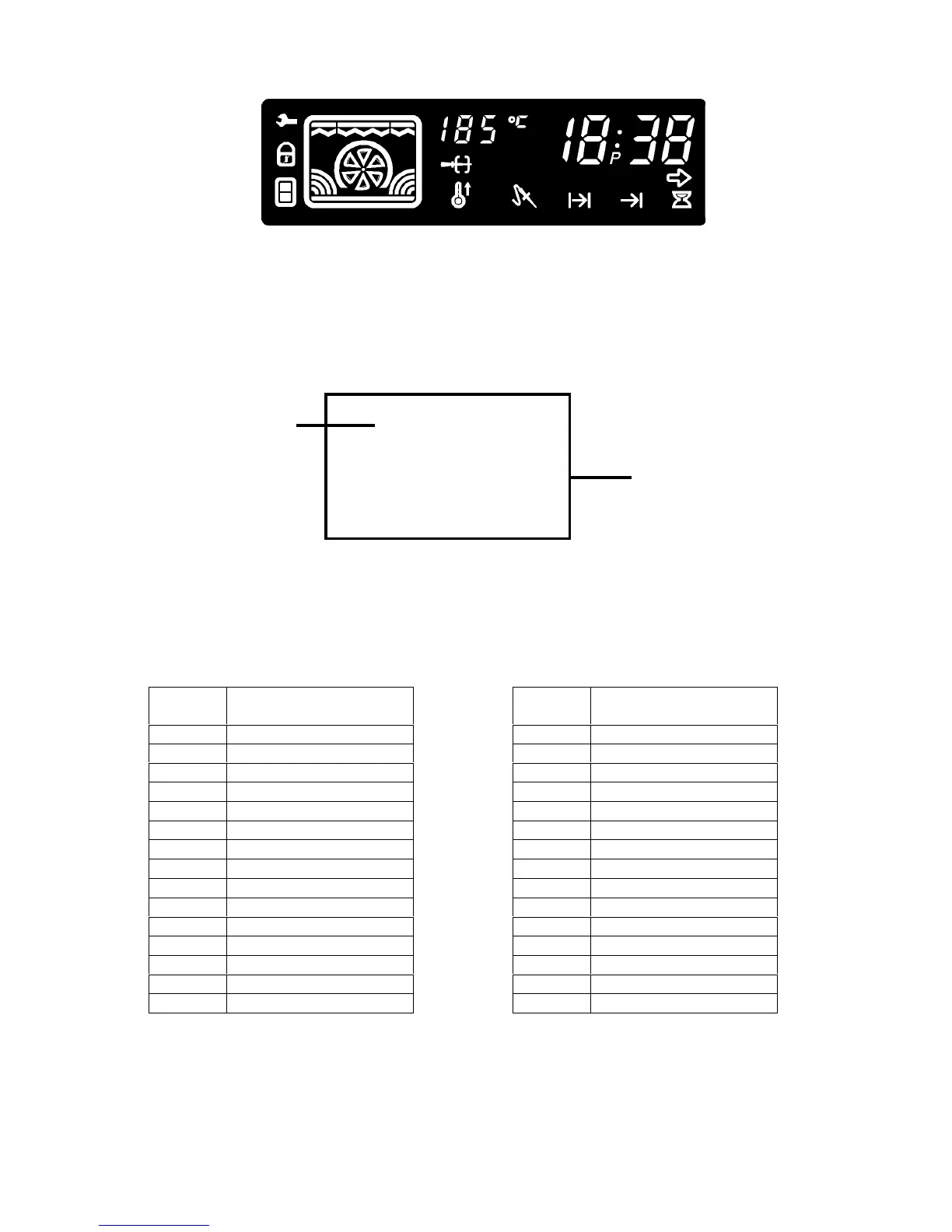

This routine starts a run-through in the display, where all symbols and particular bars of the 7-segment
display are test.
This routine shows the temperature, which is measured by the limiter on the central unit, in a
hexadecimal code (see tables).
HEX Temperature limiter
control unit
OO1 -30
OO2 -25
OO3 -15
OO4 -10
OO6 - 5
OO7 0
OO9 5
OOB 10
OOE 15
O12 20
O16 25
O1A 30
O2O 35
O26 38
O2C 45
HEX Temperature limiter
control unit
O34 52
O3C 55
O45 60
O4E 65
O58 70
O62 75
O6C 80
O76 85
O80 90
O8A 95
O93 100
O9C 105
OA4 110
OAC 115
OB3 120
To Next Page
