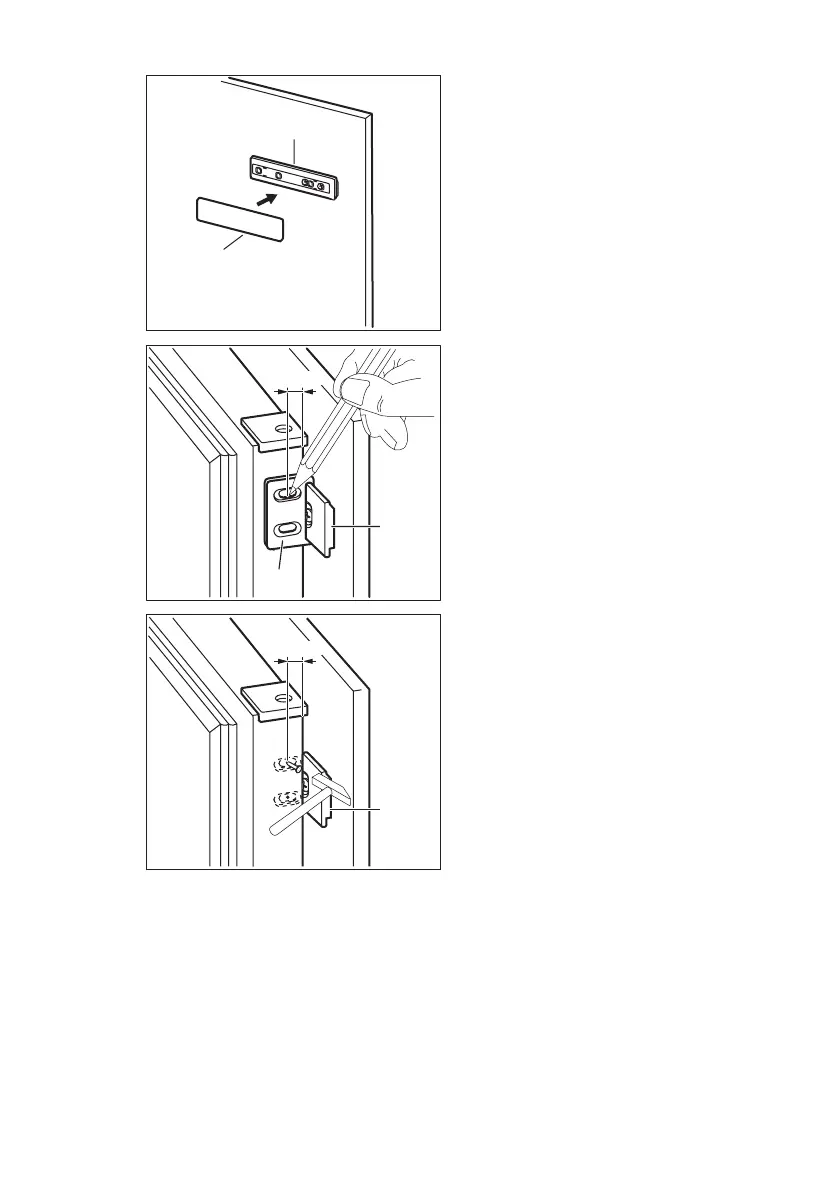

Push the part (Hc) on the part (Ha).
Ha
Hb
8 mm
Open the appliance door and the kitchen
furniture door at an angle of 90°.
Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the fur-
niture door and mark the holes.
Ha
K
8 mm
Remove the brackets and mark a distance
of 8 mm from the outer edge of the door
where the nail must be fitted (K).
ENGLISH 45
