3. Add some millimetres to the length
when you cut the seal stripe.
4. Join the two ends of the seal stripe
together.
5. Fix the glass ceramic on the worktop
with silicone.

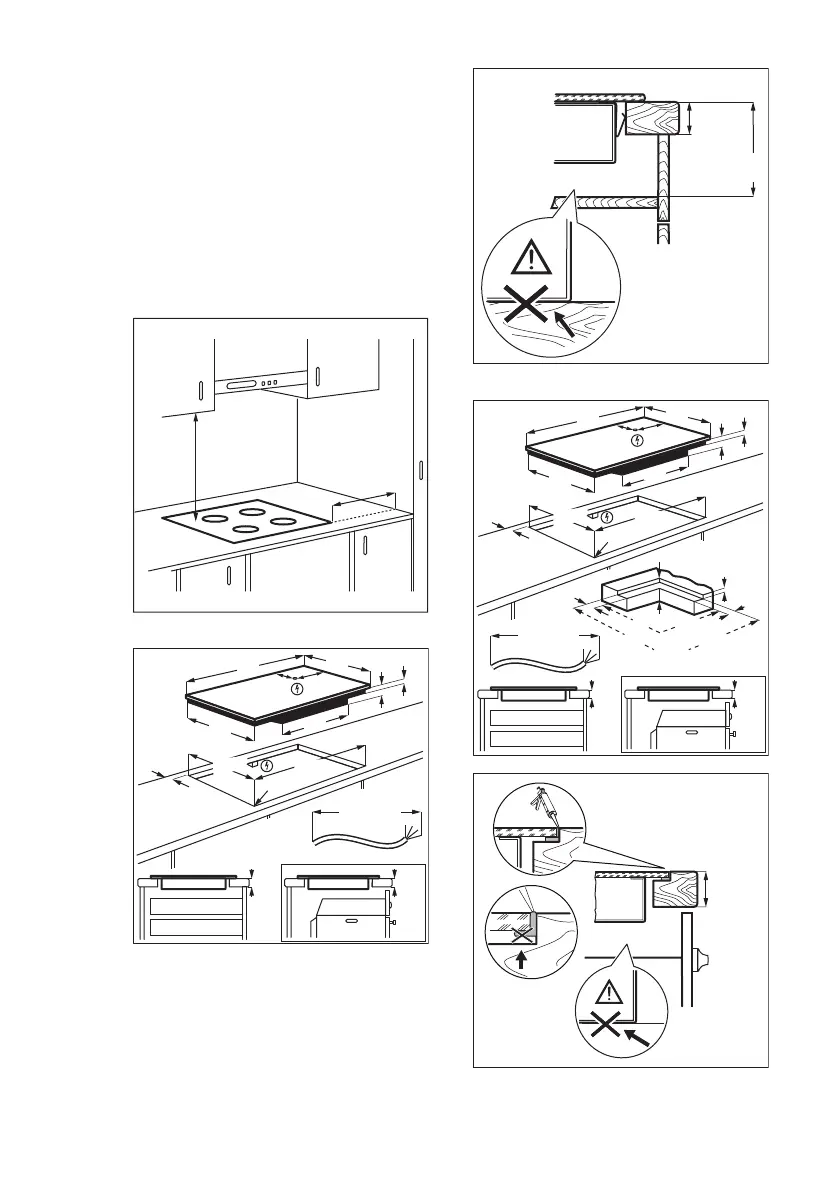

3.7 Assembly
If you install the hob under a hood,
please see the installation instructions of
the hood for the minimum distance
between the appliances.
min.
50mm
min.
500mm
ON-TOP INSTALLATION
47
31
min. 55
700
550
510
490
+1
680
+1
max R5
min. 1500
280
60
min.
12
min.
28
486
min.
12 mm
min.
60 mm
INTEGRATED INSTALLATION
13
8
13
R10
R5
490
+1
516
+1
706
+1
680
+1
51
35
min. 55
700
550
510
490
+1
680
+1
max R5
min. 1500
280
60
min.
12
min.
28
486
min.
28 mm
www.electrolux.com8
