5
9
12
13
10

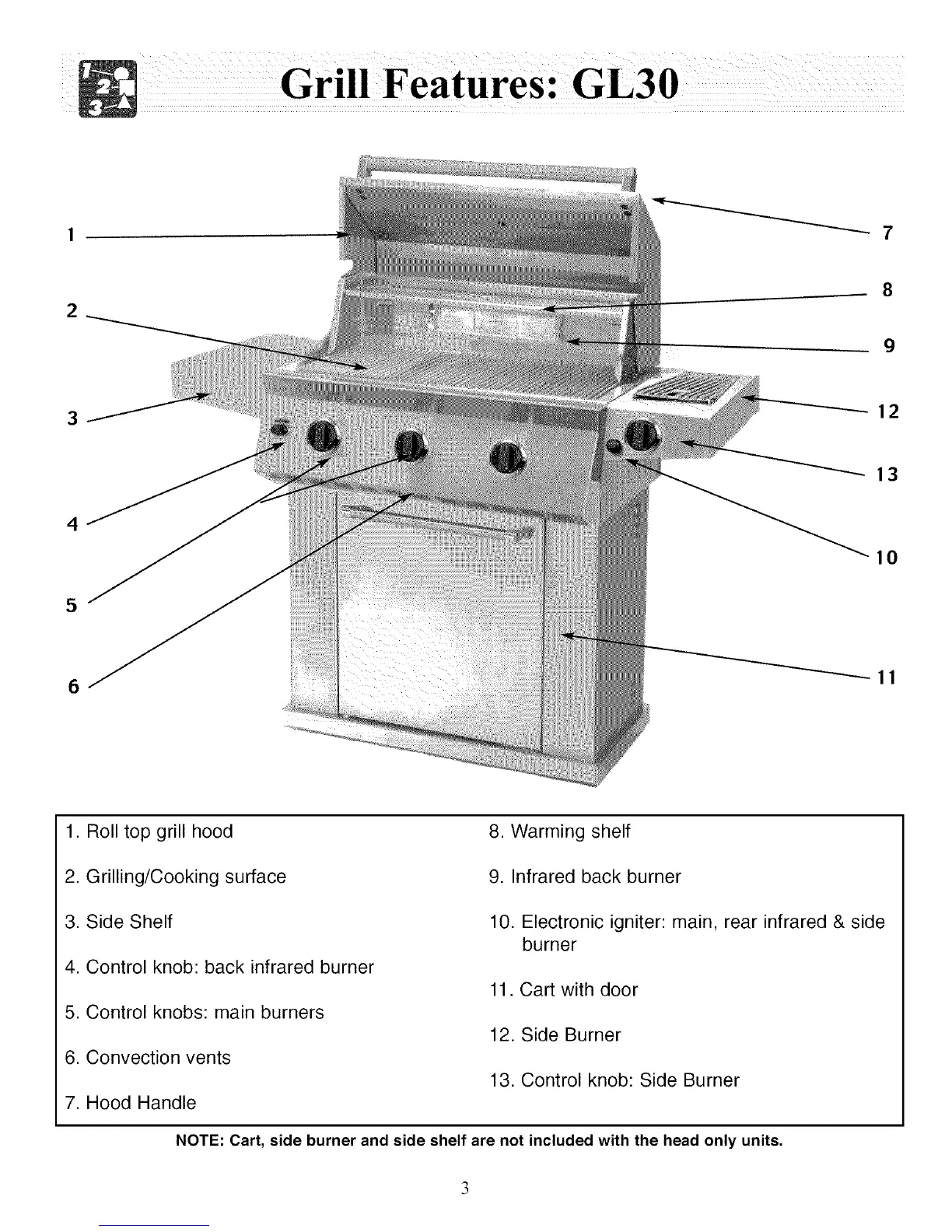

1. Roll top grill hood 8. Warming shelf
2. Grilling/Cooking surface
9. Infrared back burner
3. Side Shelf
4. Control knob: back infrared burner
5. Control knobs: main burners
6. Convection vents
7. Hood Handle
10. Electronic igniter: main, rear infrared & side
burner
11. Cart with door
12. Side Burner
13. Control knob: Side Burner
NOTE: Cart, side burner and side shelf are not included with the head only units.
