GFI Electrical Outlet
For Rotisserie Motor
(6.5 Amp Min.)
35.5"
Max
i i
Required igniter
Cutout
.75 Note A*
3/4"
4"
6"
Side Cutout View
Front
0.75 ......_:
Max
lop View

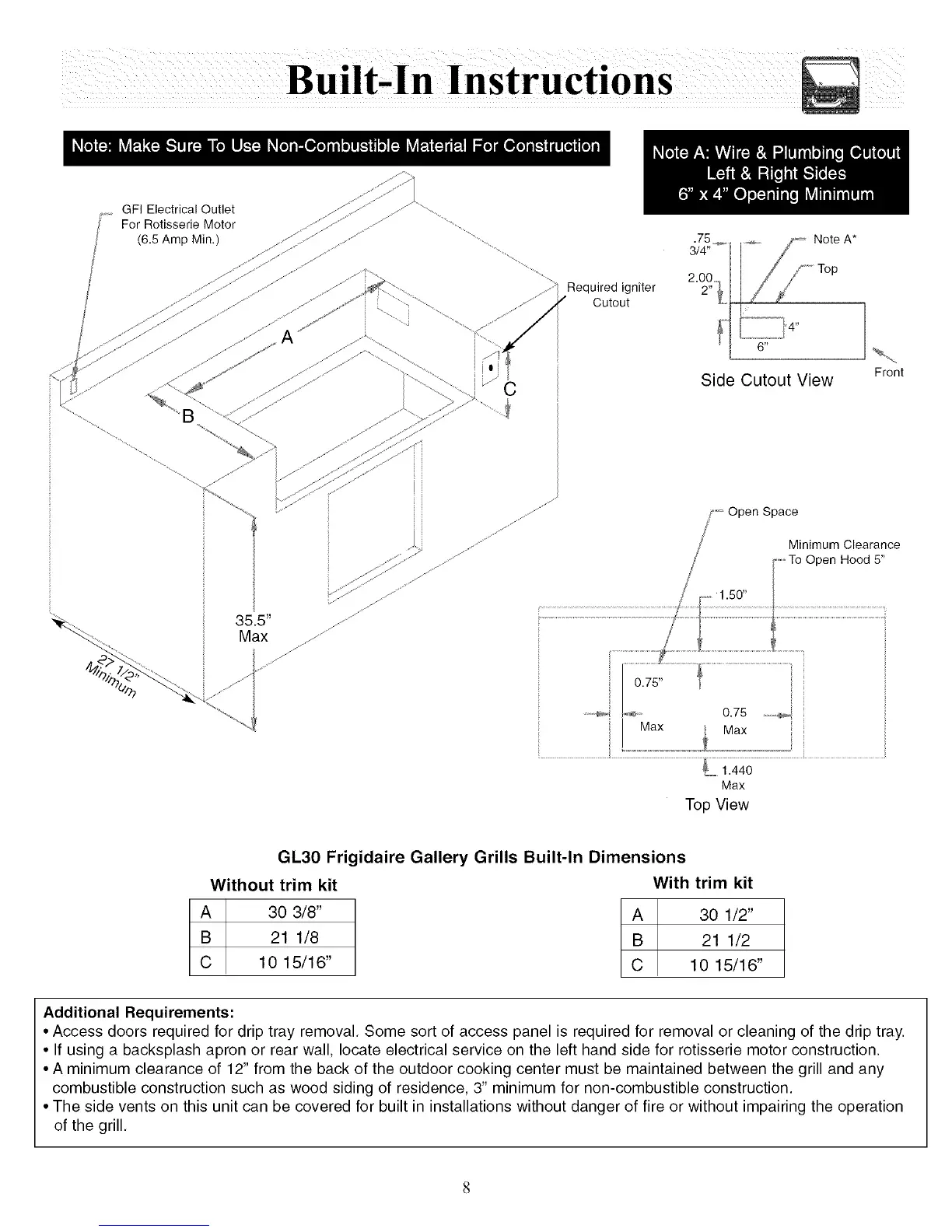

GL30 Frigidaire Gallery Grills Built-In Dimensions
Without trim kit
A 30 3/8"
B 21 1/8
C 10 15/16"
With trim kit
A 30 1/2"
B 21 1/2
C 10 15/16"
Additional Requirements:
• Access doors required for drip tray removal. Some sort of access panel is required for removal or cleaning of the drip tray.
• If using a backsplash apron or rear wall, locate electrical service on the left hand side for rotisserie motor construction.
• A minimum clearance of 12" from the back of the outdoor cooking center must be maintained between the grill and any
combustible construction such as wood siding of residence, 3" minimum for non-combustible construction.
• The side vents on this unit can be covered for built in installations without danger of fire or without impairing the operation
of the grill.
