Electrolux RM 4505 - Solar Regulator Shared Connection; Solar Regulator Connection: Shared

18

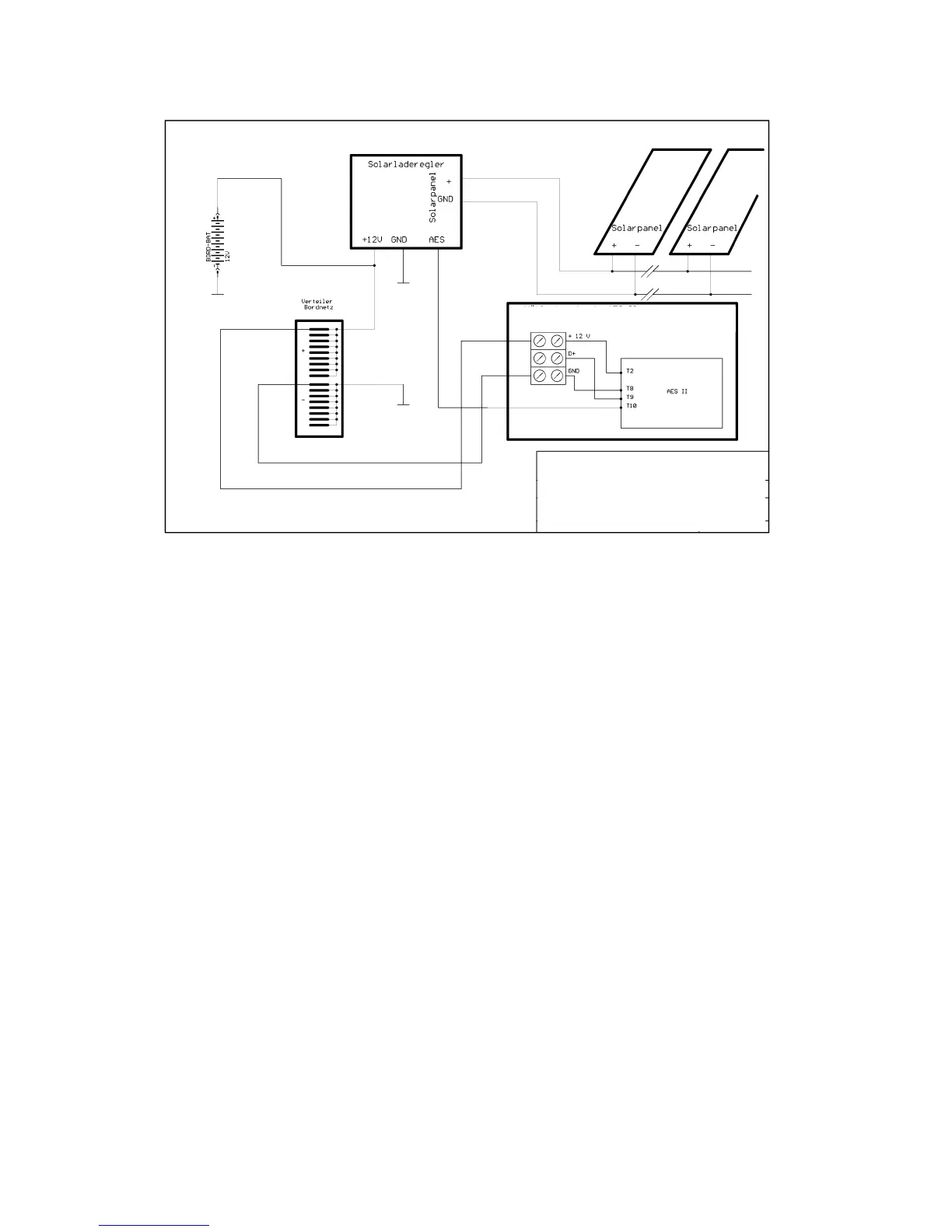

2. Connection diagram (shared connection for battery and on-board power supply
on- board battery
Solar charging regulator
AES has 12V level: refrigerator with 12V operation
AES has 0V level: normal operation (220V, gas or 12V with motor running)
Refrigerator with AES
Terminal block on top of refrigerator
Connecting diagram for AESII operation with
solar regulator and AES switching output.
Shared connection for battery and on-board
power supply
