Installation
Transportation and unpacking,
W3130H, W3180H, W3240H, W3300H

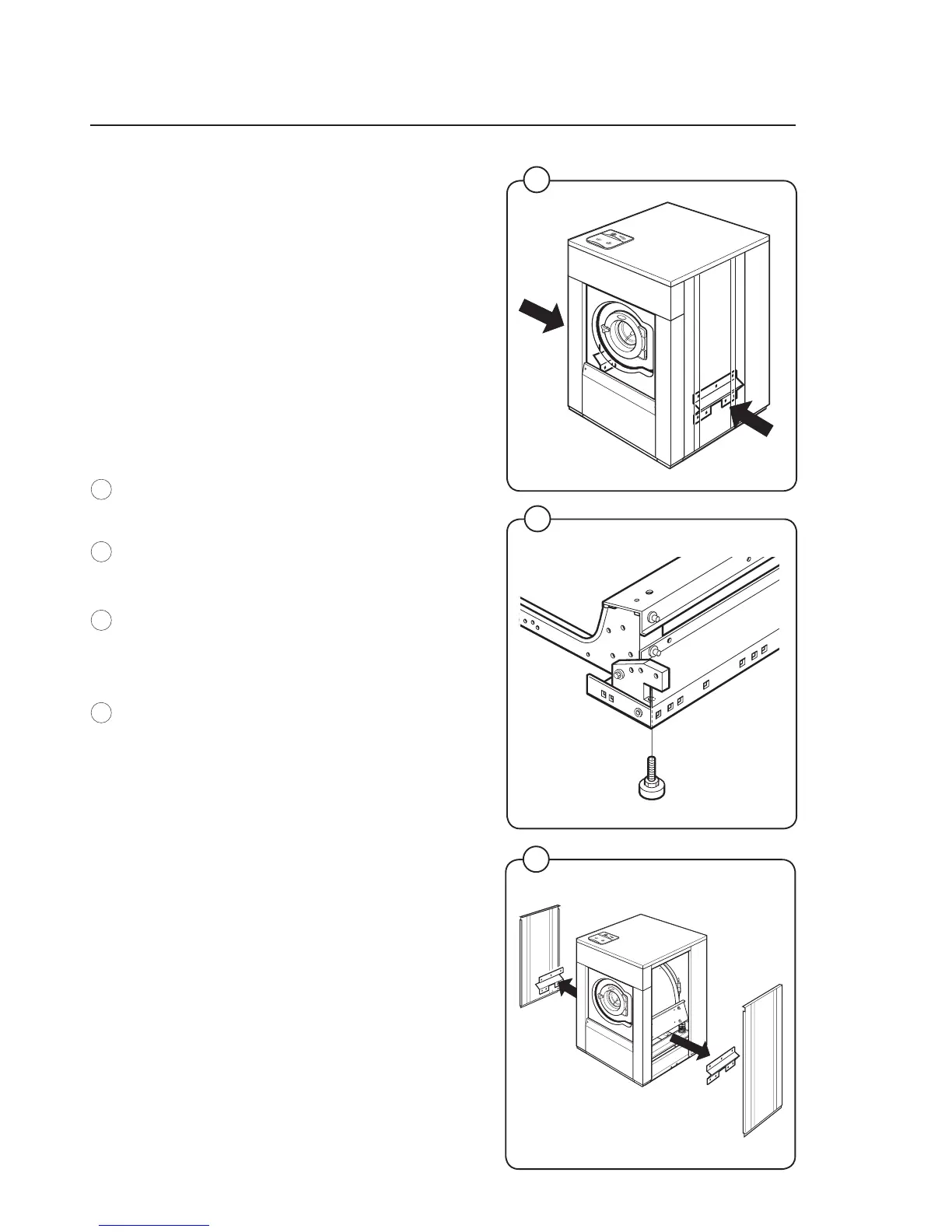

The machine is delivered complete with expan-
sion bolts etc. packed inside the machine in the
drum.
The machine is delivered bolted onto the trans-
port pallet and packed in a crate or box.
• Remove packing from the machine.
• Remove front and rear panel. Remove the
bolts between the machine and pallet.
• Mount front and rear panel.
• Mount the feet.
NOTE!
Regarding W3300H note the positioning of
the two front feet.
• Place the machine on its final position.
• Level the machine with the feet of the machi
-
ne.
The machine also comes with transport safety
devices (two plate angles between the support
and the drum).
In order to remove the safety devices:
• Remove the two side panels.
• Remove the two transport securities.
• The machine may not be moved with the
transport securities removed. Save the trans-
port securities for future use.
Fig.
1
Fig.
4
Fig.
6
Fig.
5
