Electrolux W465H - Page 85

85
6

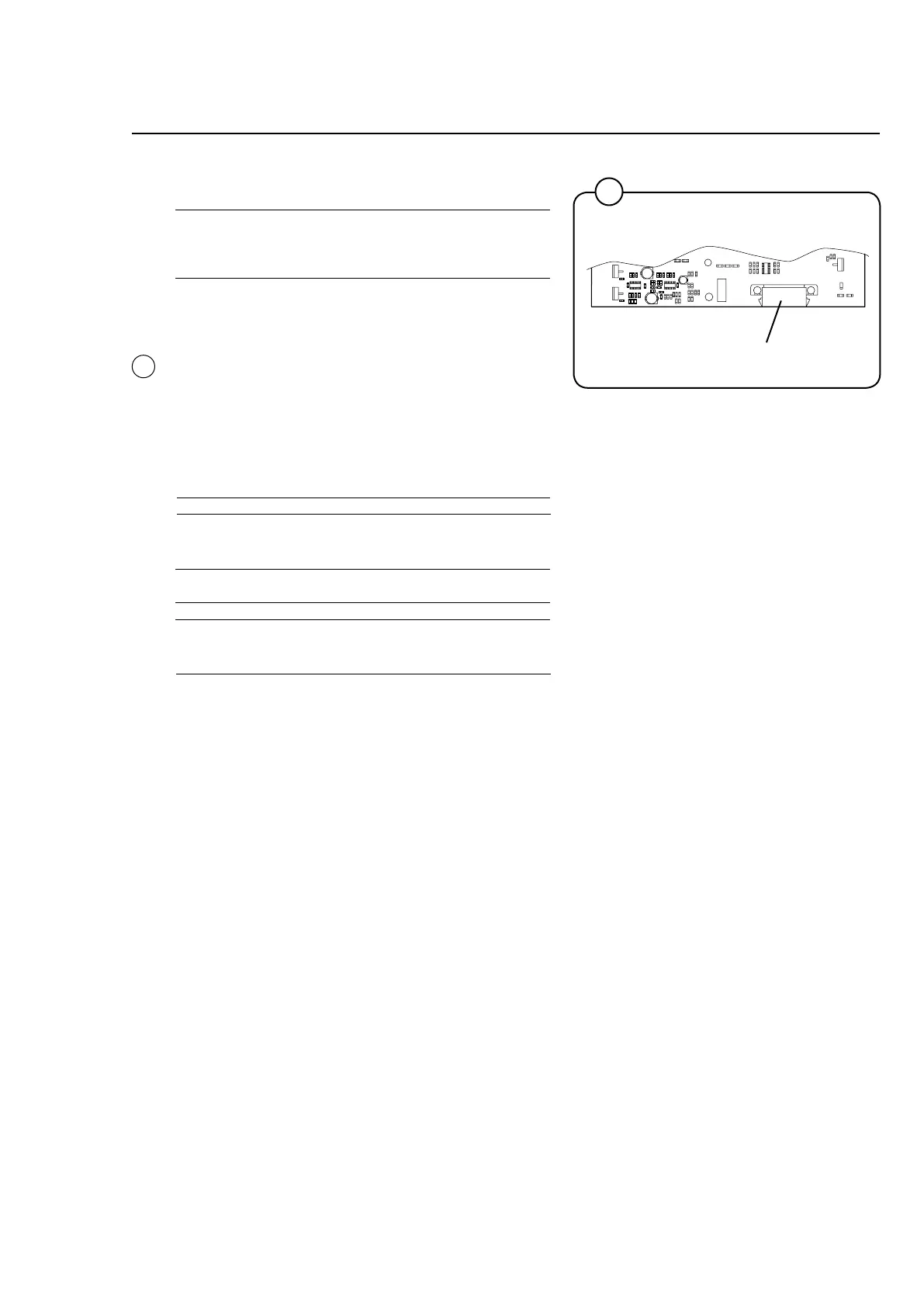

X312
6671
Motor and motor control
X311: Voltage supply
Input voltage, single phase or rectified three-phase
  min: 200V-15%
  max: 240V+10%
X312: AC supply to motor and input from the
motor thermal protector
Themotorisfedwithalternatingcurrentwithva-
ryingfrequencythatisproportionaltothemotor
speed.
W465-W4130
CardNo. Function
X312:1 ACsupplytomotor,phase1
X312:2 ACsupplytomotor,phase2
X312:3 ACsupplytomotor,phase3
W4180-W4240
CardNo. Function
X312:1,2 ACsupplytomotor,phase1
X312:3,4 ACsupplytomotor,phase2
X312:5,6 ACsupplytomotor,phase3
6
