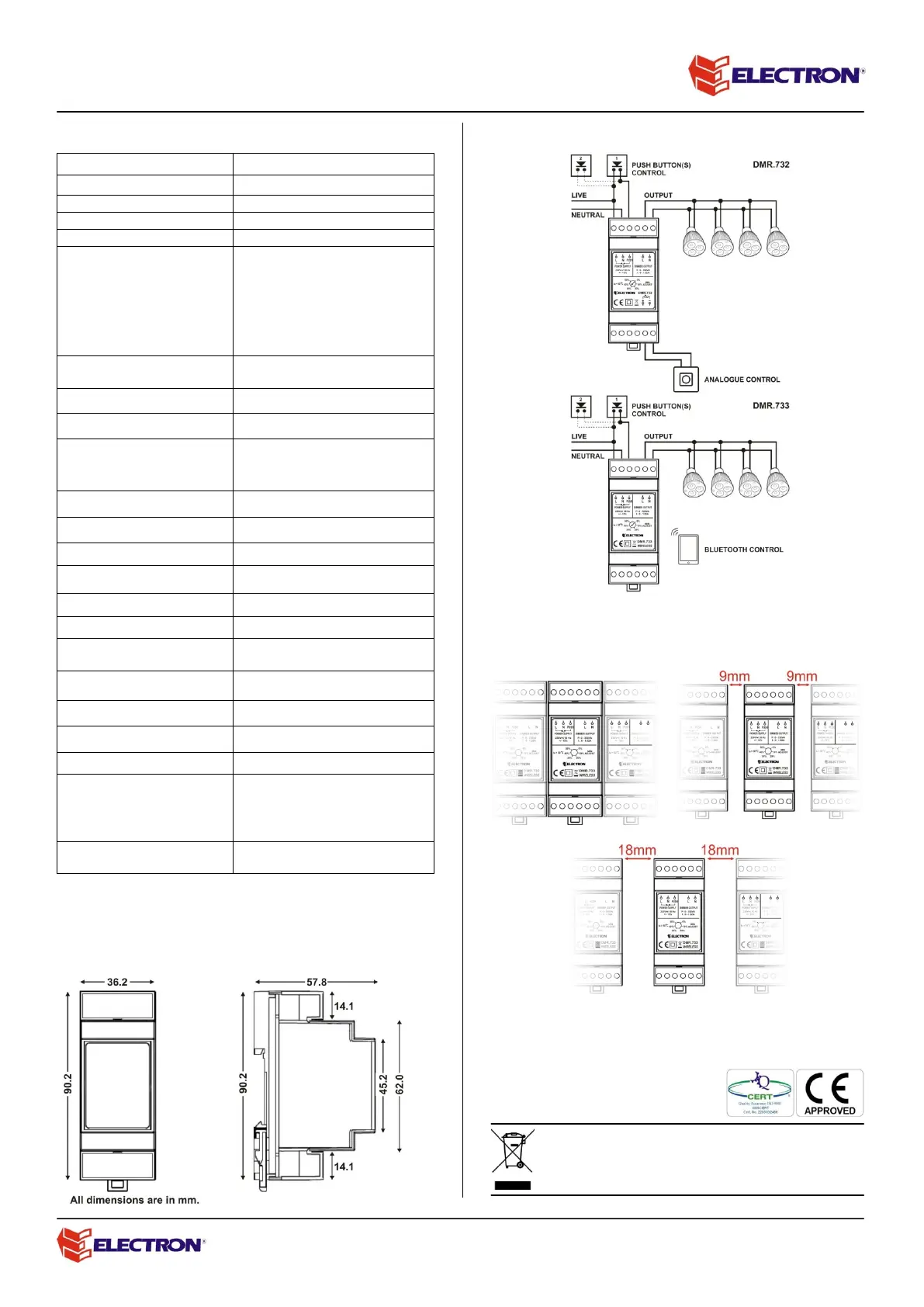

DIN RAIL TRAILING EDGE DIMMER – DMR.732 & DMR.733
User Manual. (Ver.03)
ELECTRON S.A. 7 klm National Road Athens - Lamia, 68 Antiohias Str,
PROFESSIONAL LIGHTING SYSTEMS N. Philadelphia, 143 41 Athens, Greece
info@electron.gr, www.electron.gr Tel. +30 210 2584240, Fax. +30 210 2584245
Technical specifications.
Dimmable 230V LED lamps.
Dimmable compact fluorescent
lamps. (CFL).
230V halogen lamps.
Electronic transformers for low
voltage halogen lamps.
Incandescent lamps.
Analog inputs. (DMR.732)
Analog inputs. (DMR.733)
1/10V & Push button.
Push button.
Wireless input. (DMR.733)
Wireless range. (DMR.733)
Dimming curve correction.
Yes. Adjusting the built-in min
trimmer, installer can achieve
dimming without dead fields.
Input / output connection.
Power consumption.
(Max. load @ 100%).
Power Supply & Dimmer output
: 1mm²-2,5mm² (stranded).
Input, output controls : 0,5mm²-
1mm² (stranded).
LVD Directive, EMC Directive.
1
Range is highly depended on the surrounding and obstacles, such
as walls and building materials.
ELECTRON S.A. has every right to make any change to this
document without informing anyone.
Dimensions.
Connection diagram.
Minimum spacing at the rail between
dimmers and other components.
1) Load up to 200VA 2) Load from 200VA to 275VA
3) Load from 275VA to 350VA
Caution: Leaving no gap/space between the dimmers
(for cases 2 & 3) and other components in the rail, might
damage the dimmer(s) permanently!
At the end of its lifetime DMR.732 & DMR.733 must be
delivered in a special waste collection center. The
improper disposal can cause damages for the
environment and poses dangers for the human health.
