4. CIRCUMFERENCE CONVERGENCE ADJUSTMENT
Note: This adjustment requires Rubber Wedges and Grass Cloth Tapes.
(a) Loosen the clampling screws of deflection yoke to allow the yoke to tilt.

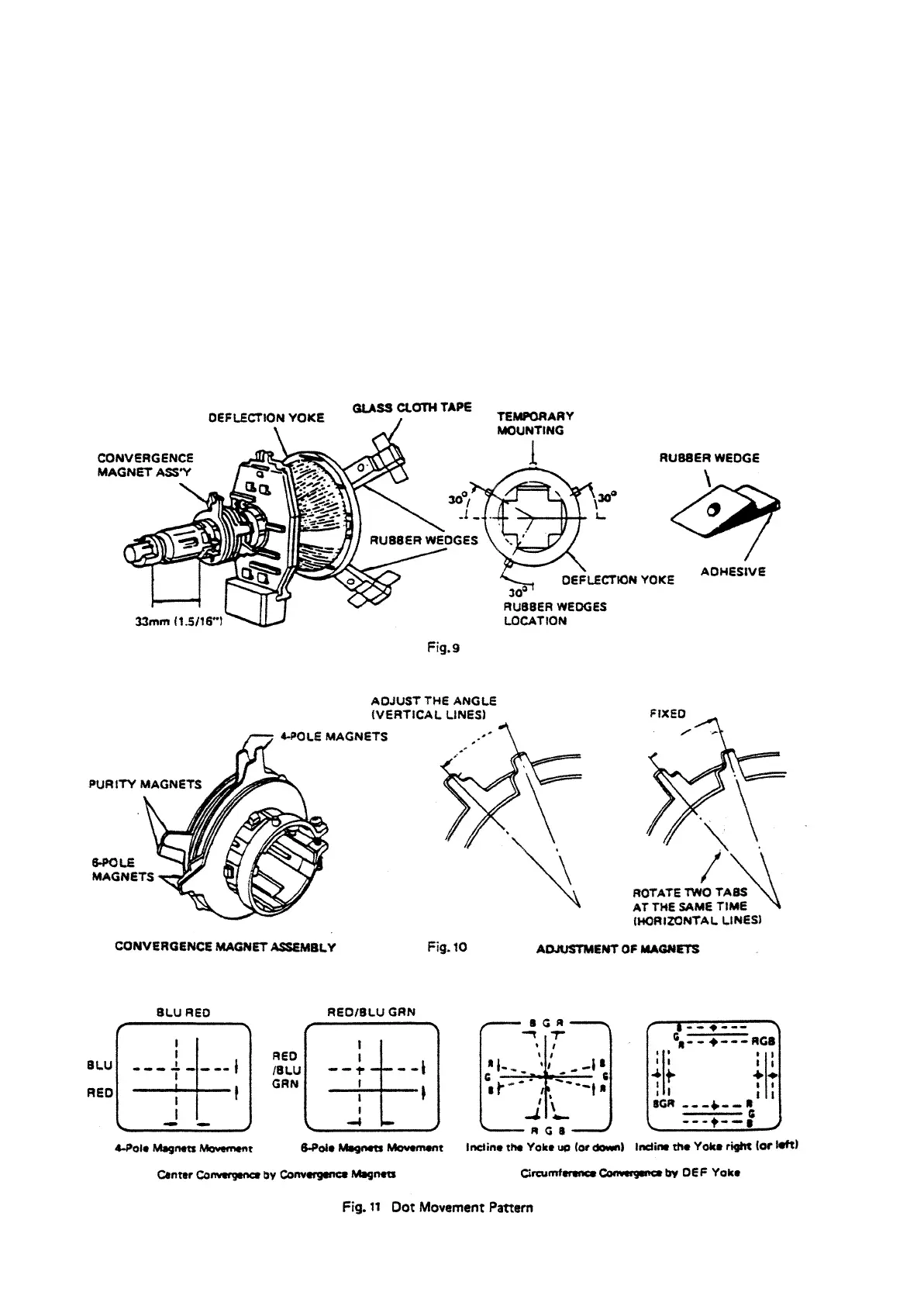

(b) Place a wedge as shown in Fig 14 temporarily.( Do not remove cover paper on adhesive pant of the wedge. )
(c) Tilt front of the deflection yoke up or down to obtain better convergence in circumference ( See Fig. 11 ). Push the mounted wedge
into the space between picture tube and the yoke to hold the yoke temporarily.
(d) Place othter wedge intro bottom space and remove the cover part to stick.
(e) Tilt front of the yoke right or left to obtain better convergence in circumference. ( See Fig.11 ).
(f) Hold the yoke position and put another wedge in either upper space. remove ~ paper and stick the wedge on picture tube to hold
the yoke.
(g) Detach the temporarily mowed wedge and put it in another upper space. Stick in on picture tube to fix the yoke.
(h) After placing three wedges, recheck over all convergence. Tighten the screw firmly to hold the yoke tightly in place.
(i) Stick 3 grass cloth tapes on wedges as shown in Fig. 9.
