sensor’s wire
heating cable
Single-phase electric circuit

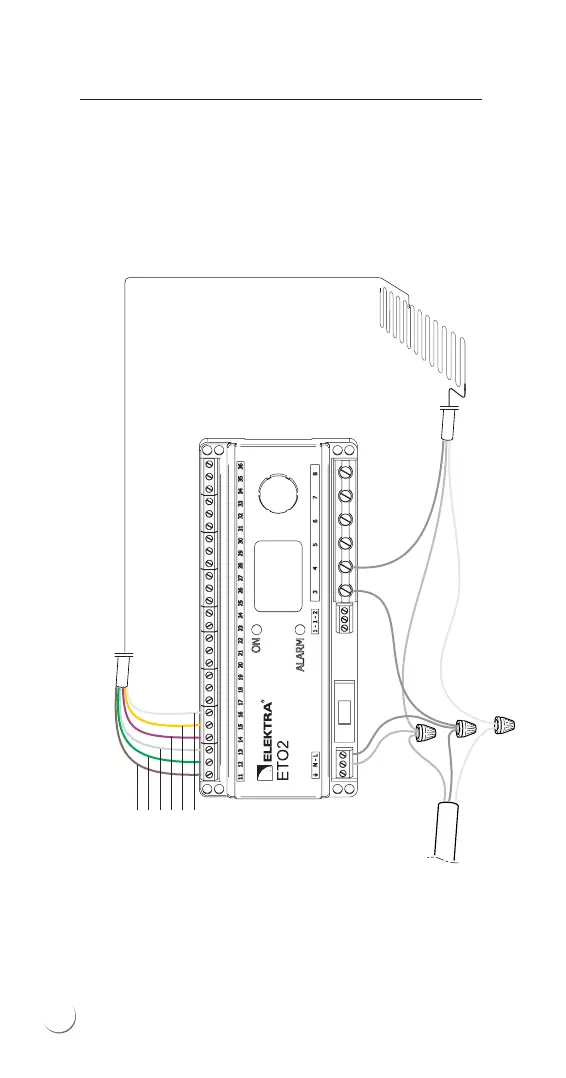

Connection diagram of ETO2-4550 controller
with ETOG-56T sensor.
Protection of external surfaces - one zone.
single-phase
circuit
ETOG-56T
+
ETOK-T
PE
PE
L
N
L
N
L'
brown
green
grey
pink
yellow
white
20
Sensors
for
controllers
ETO2-4550
&
ETR2-1550
19
21
Table of Contents
English
3
Default Chapter
3
Table of Contents
3
1 Introductory Information
4
2 Types of Sensors
4
3 Additional Components
5
4 Guidelines for Installation
6
Positioning and Installation of the ETOG-56T Sensor
6
Positioning and Installation or ETOR-55
12
And ETF-744/99 Sensors
12
5 Connecting ETOG-56T, ETOR-55
14
And ETF-744/99 Sensors
14
6 Technical Data
24
