sensor’s wire
heating cable
sensor’s wire
heating cable
Single-phase electric circuit

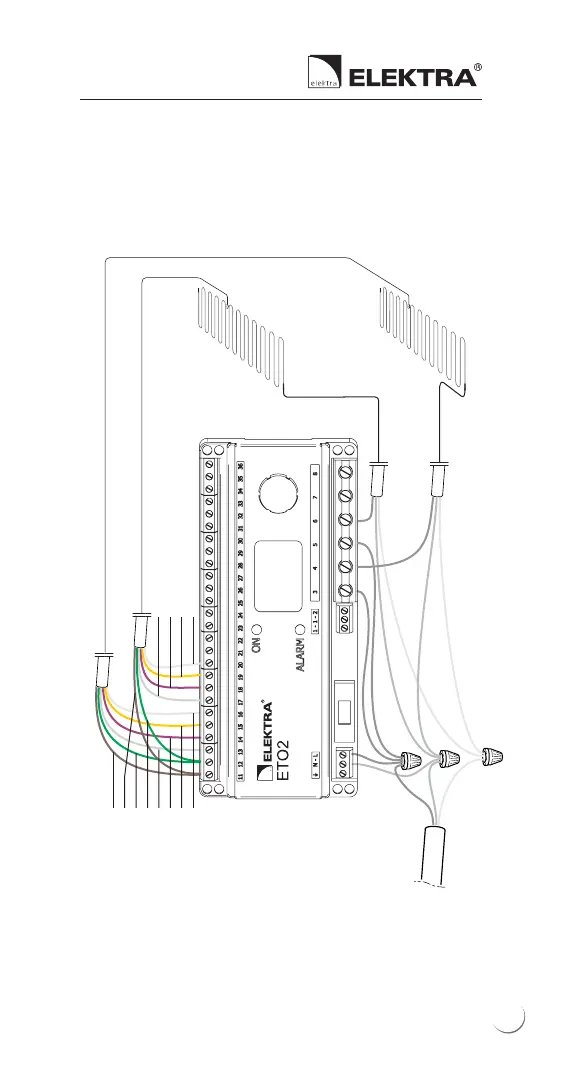

Connection diagram of ETO2-4550 controller
with two ETOG-56T sensors.
Protection of external surfaces - two zones.
single-phase
circuit
ETOG-56T
+
ETOK-T
ETOG-56T
+
ETOK-T
PE
PE
PE
N
N
L
L
N
L
L
L'
L'
brown
brown
green
green
grey
pink
yellow
white
grey
pink
yellow
white
23
22
24
Table of Contents
English
3
Default Chapter
3
Table of Contents
3
1 Introductory Information
4
2 Types of Sensors
4
3 Additional Components
5
4 Guidelines for Installation
6
Positioning and Installation of the ETOG-56T Sensor
6
Positioning and Installation or ETOR-55
12
And ETF-744/99 Sensors
12
5 Connecting ETOG-56T, ETOR-55
14
And ETF-744/99 Sensors
14
6 Technical Data
24
Polski
31
Informacje Wstępne
32
Rodzaje Czujników
32
Dodatkowe Elementy
33
Lokalizacja I Montaż Czujnika Typu ETOG-56T
34
Wskazówki Dotyczące Instalacji
34
Lokalizacja I Montaż Czujników Typu ETOR-55 I ETF-744/99
40
Dane Techniczne
52
Ñîäåðæàíèå
59
1 Âñòóïèòåëüíàÿ Èíôîðìàöèÿ
60
2 Âèäû Äàò÷Èêîâ
60
3 Äîïîëíèòåëüíûå Ýëåìåíòû
61
4 Óêàçàíèÿ Ïî Ìîíòàæó
62
Òèïà ETOG-56T
62
Ðàñïîëîæåíèå È Ìîíòàæ Äàò÷Èêîâ Òèïà ETOR-55
68
Etf-744/99
68
Etog-56T, Etor-55
70
Etf-744/99
74
6 Òåõíè÷Åñêèå Äàííûå
80
4
Based on 1 rating
