STEALTH XF: BUILD CONFIGURATION:
GATE 01
STEALTH X: BUILD CONFIGURATION: MOTOR MOUNT FACING REAR (STOCK)
GATE 02
LINKS: WHEELBASE CHART - PARTS NEEDED
GATE 03
16
20T 20T 20T28T 28T 28T52T 52T 52T
52T 53T 54T28T 27T 26T

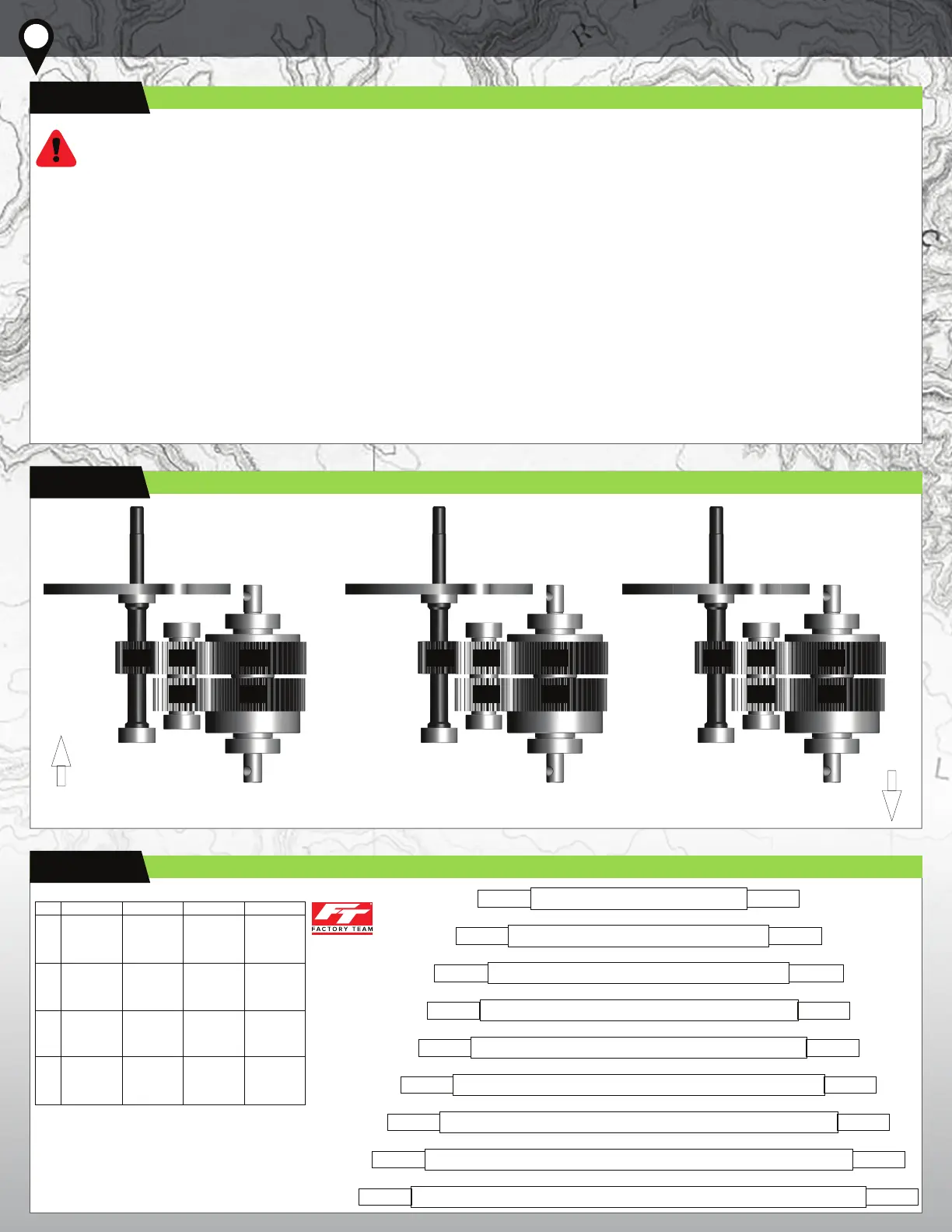

OVERDRIVE:
Overdrive is a scenario where the front and rear wheels do not rotate at the same speed. The Stealth XF gearbox is designed to
allow the front wheels to spin faster than the rear wheels. Overdrive is advantageouse when climbing up rock faces because the
front tires will want to pull the vehicle up the rock. On desents, the rear tires rotating slower than the front tires will help keep
the chassis more stable and keep the rear tires planted on the ground.
Stealth XF:
The Stealth XF gearbox comes factory assembled with no overdrive (1:1).
With additional parts, the Stealth XF gearbox allows the driver to change the front to rear drive ratios with 3 separate ratio
adjustments to the rear drive shaft.
Items Needed for OVERDRIVE:
#42025, #42027, #91563, #42026 -OR- #42031, #42028 -OR- #42032
Please Note:
The 20T top shaft, 28T idler gear, and 52T drive gear will always be meshed together in all 3 gearbox confi gurations.
1:1 Over Drive Option 1 Over Drive Option 2
Front Of
Vehicle
Rear Of
Vehicle
73mm
83mm
93mm
96mm
100mm
108mm
114mm
121mm
127mm
Items Needed for Links:
#42040 - Rod Ends
Panhard Links [CMS]:
Panhard - #42183
Steering Input - #42182
Steering Link - #42180
Servo on Axle Links
[SOA]:
Links - #42323
Steering Link - #42180
WHEELBASE CHART
11.8”
12.0”
12.3”
12.8”
FRONT UPPER
93mm
#42184
93mm
#42184
93mm
#42184
93mm
#42184
FRONT LOWER
100mm
#42185
#42186
100mm
#42185
#42186
100mm
#42185
#42186
100mm
#42185
#42186
REAR UPPER
93mm
#42184
100mm
#42185
108mm
#42187
121mm
#42191
REAR LOWER
100mm
#42185
#42186
108mm
#42187
#42188
114mm
#42189
#42190
127mm
#42192
#42193
WB
