TwistPort
™
Adaptor
www.rfelements.com
7
*
Antenna Port H - Horizontal Polarization
Antenna Port V - Vertical Polarization

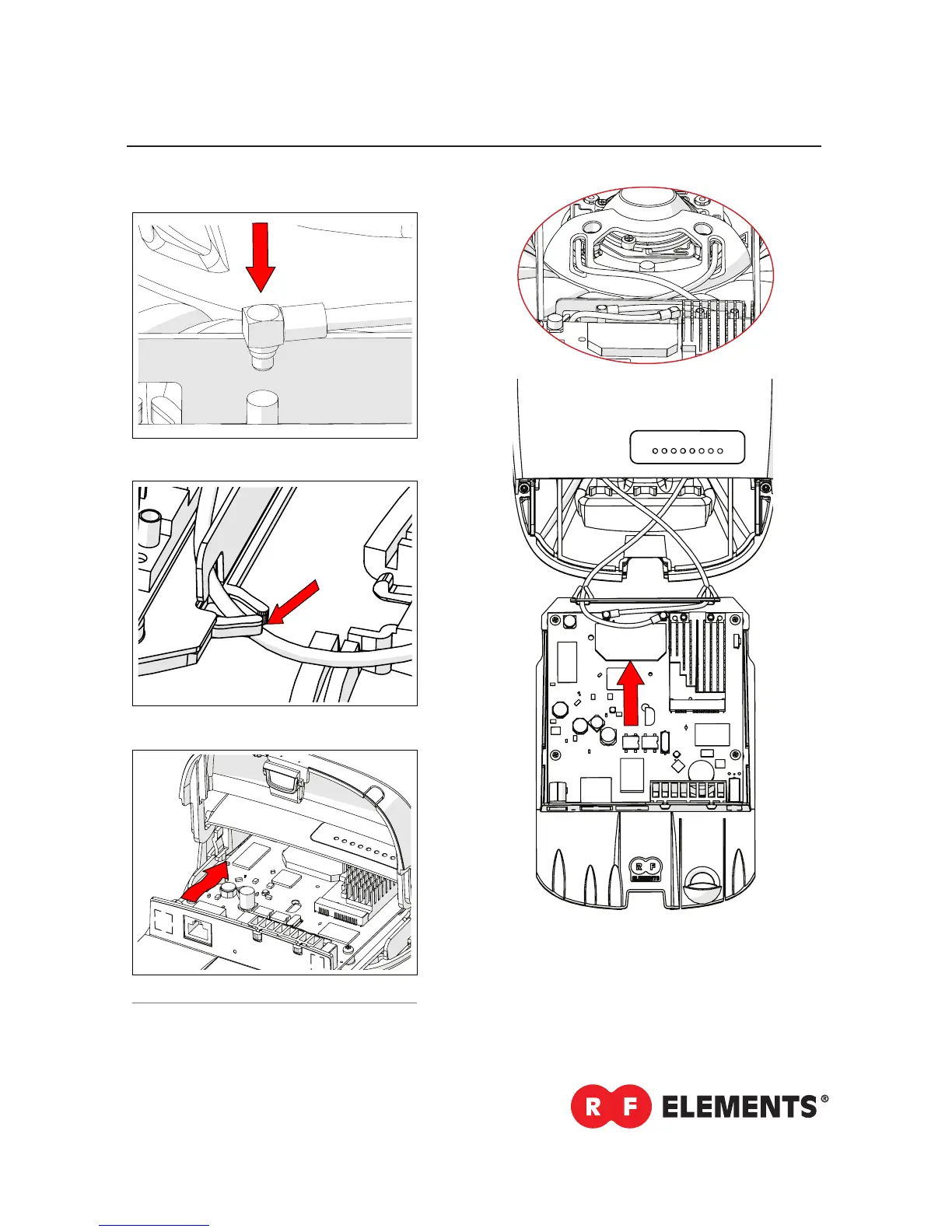

Model TwistPort™ Shielded Adaptor for RouterBoard shown. Installation instruc-
tions are only for TwistPort™ Shielded Adaptor for RouterBoard.
Installation Guide
2
1
3
*
H V
