This document provides an instruction manual for the Elenberg MS-2015 D microwave oven, covering its functions, technical specifications, usage, and maintenance.

Function Description

The Elenberg MS-2015 D is a microwave oven designed for heating, cooking, and defrosting food. It operates by generating microwave energy, which causes water molecules in food to vibrate, producing heat. The oven offers various power levels and cooking modes to accommodate different types of food and cooking requirements.

Key functions include:

Microwave Cooking: The primary function, allowing users to cook food using microwave energy. It offers multiple power levels (100%, 80%, 50%, 30%, 10%) for different cooking intensities, with a maximum cooking time of 99 minutes and 99 seconds.
Speedy Cooking: A quick start function that allows for cooking at 100% microwave power for set durations (e.g., 30 seconds per press, up to 1 minute).
Defrost by Weight: This feature allows users to defrost food based on its weight, with specific settings for different food types (e.g., 500g of beef).
Speed Defrost: A quick defrost function for specific weights of food (e.g., 500g).
Auto Menu Cooking: Pre-programmed settings for various food items, simplifying the cooking process. The oven has 9 auto menu categories, each with specific weight ranges and corresponding cooking times. Examples include auto reheat, vegetables, fish, meat, pasta, potato, pizza, soup, and porridge.
Delay Start: Allows users to program the oven to start cooking at a later, specified time (e.g., 12:12).
Inquiring Function: Enables users to check the current power level or the remaining time during a delay start.
Fan Pro-Longed Protection Function: The cooling fan continues to operate for 5 minutes after cooking ends, or up to 15 seconds if the cooking time is equal to or above 5 minutes, to protect the magnetron.
Lock-out Function for Children: A safety feature that locks the oven's controls to prevent accidental operation by children. It can be activated and deactivated by pressing the "STOP" button for 3 seconds.
Automatic Going Out Function: The oven light turns on when the door is opened and automatically turns off after 10 minutes.
Cooking End Reminding Function: The oven beeps 5 times to indicate that cooking is complete.
Display Specification: The LCD displays the clock, cooking settings, and remaining time.

Important Technical Specifications

Model: MS-2015 D
Rated Voltage: 220V-50Hz
Rated Input Power (Microwave): 1150 W
Rated Output Power (Microwave): 700 W
Grill Power: 800 W (Note: The Russian manual lists "Максимальная выходная мощность (гриль)" as 800W, while the English manual lists "Grill Power" as 800W. This suggests the model might have a grill function, though the primary description focuses on microwave. The Russian manual's "Потребляемая мощность" is 1150W, "Максимальная выходная мощность (микроволны)" is 700W, and "Максимальная выходная мощность (гриль)" is 800W. The English manual lists "Rated Input Power" as 1150W, "Rated Output Power" as 700W, and "Grill Power" as 800W. This confirms the presence of a grill function.)
Oven Capacity: 20 Liters
Turntable Diameter: 245 mm
Dimensions (LxWxH): 461 mm x 375 mm x 280 mm
Weight (Net): Approx. 11.4 Kg

Usage Features

The oven is designed for user-friendly operation with a control panel that includes buttons for power level, time setting, auto menus, and special functions.

Installation: The oven should be placed on a stable, flat surface with adequate ventilation (minimum 3.0 inches/7.5 cm clearance at the top, sides, and rear, and 12 inches/30 cm above). It should not be installed over a range cooktop or other heat-producing appliances.
Turntable Installation: The glass tray is placed on the turntable ring assembly, which sits on the turntable shaft. Ensure the glass tray is placed correctly and rotates freely.
Utensils: Users are advised to use microwave-safe utensils. Materials like aluminum foil, food cartons with metal handles, metal or metal-trimmed utensils, metal twist ties, paper bags, plastic foam, and wood should be avoided as they can cause arcing, fire, or damage to the oven. Recommended materials include aluminum tray (for specific uses), browning dish, dinnerware, glass jars, glassware, oven cooking bags, paper plates and cups, paper towels, parchment paper, plastic, plastic wrap, thermometers (microwave-safe), and wax paper.
Cooking Modes:
- Clock Setting: The clock can be set to 24-hour format.
- Microwave Cooking: Select power level (e.g., 100%, 80%) and cooking time.
- Speedy Cooking: Press the "Start/Speed Cook" button repeatedly for quick cooking.
- Defrosting: Use "Defrost by Weight" or "Speed Defrost" functions according to food type and weight.
- Auto Menu: Select a menu number (1-9) and adjust weight if applicable, then press "Start/Speed Cook."
Safety Precautions:
- Never attempt to operate the oven with the door open or if the door seals are damaged.
- Do not place any object between the oven front face and the door or allow soil or cleaning residue to accumulate on sealing surfaces.
- Do not heat liquids or food in sealed containers, as they may explode.
- Avoid using the oven for deep-frying or drying clothes/paper.
- Ensure proper grounding of the appliance to prevent electric shock.
- Children should only use the oven under adult supervision and after receiving proper instructions.

Maintenance Features

Regular cleaning and proper care are essential for the longevity and safe operation of the microwave oven.

Cleaning:
- Always disconnect the oven from the power supply before cleaning.
- Clean the inside of the oven after use with a slightly damp cloth.
- Clean accessories (glass tray, turntable ring assembly) in soapy water.
- The door frame, seals, and neighboring parts should be cleaned regularly with a damp cloth to remove any dirt or food residue.
- Avoid using harsh detergents or abrasive cleaners.
Troubleshooting: The manual provides a troubleshooting guide for common issues such as the oven not starting, not heating, or unusual noises. It offers possible causes and remedies, including checking power connections, circuit breakers, door closure, and cleaning dirty parts. For serious issues, professional service is recommended.
General Care: The appliance is designed for many years of good service if instructions are followed carefully.

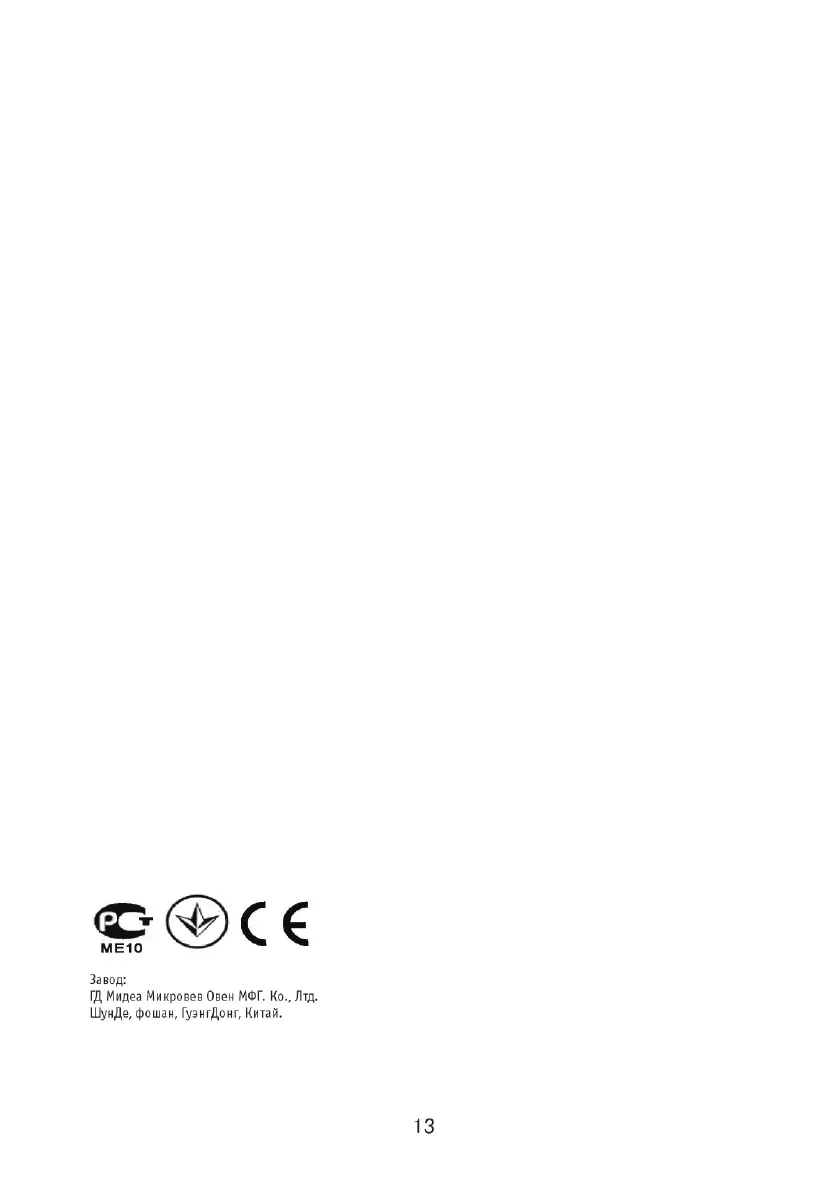

The manual also includes information about the manufacturer, GD Midea Microwave Oven MFG. Co., Ltd., located in Shunde, Foshan, Guangdong, China.
