ELICA EPBI 680 MMF User Manual

06
Minimum bottom ventilation area: 250 mm
2
*
Min. 540
If the appliance is installed under the hob, the minimum
thickness of worktop A is shown below:
≥
5
Native appliance
Native appliance
Without hob
Hob
576
≥
5
596
595
20
520

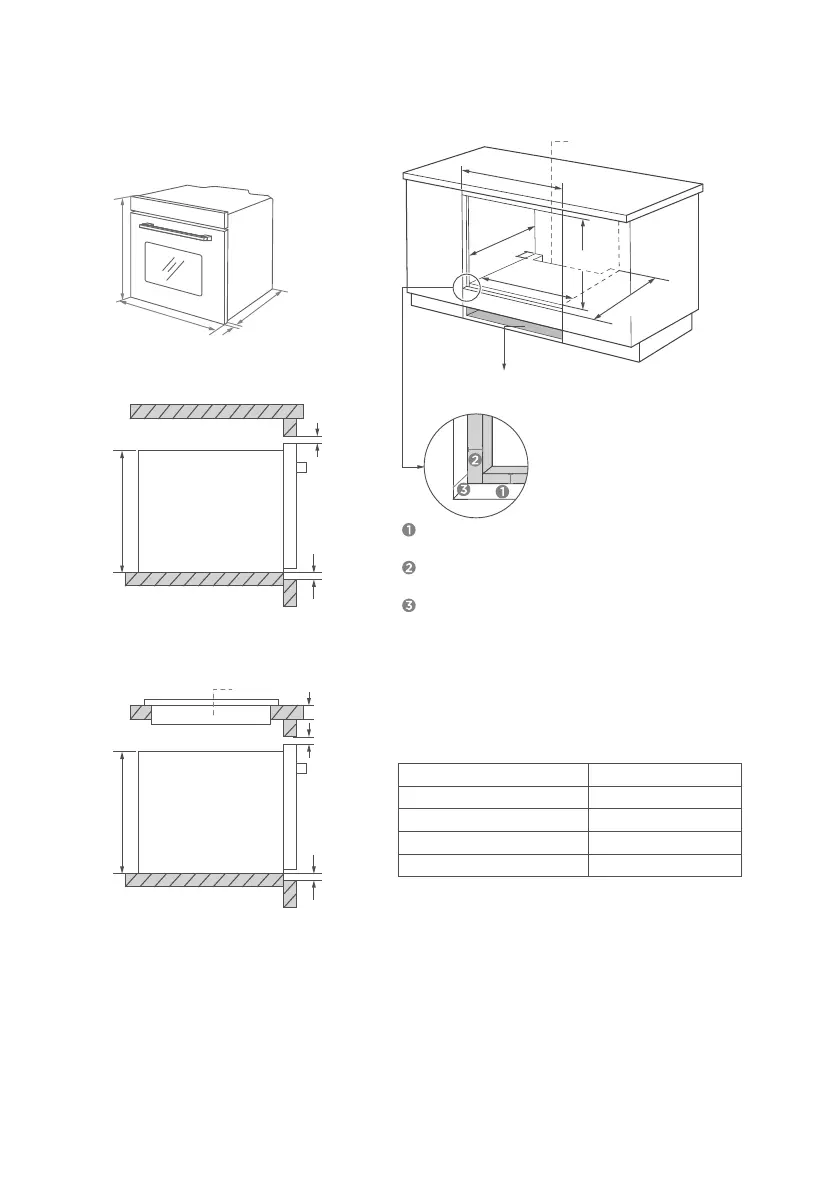

Cabinet Diagram (Ground Cabinet)
600
Min. 50
600
+2
Min. 590
+8
560
Air vents
≥
5
A
With hob
576
≥
5
Hob type
Induction hob 37 mm
worktop A
Full-surface induction hob 47 mm
Gas hob
Electric hob
30 mm
27 mm
5
20
20
Reserve 5 mm for the door panel at the top and
bottom respectively.
Reserve 20 mm for the door panel on the left
and right respectively.
Reserve 20 mm for the door panel in thickness.
1.
2.
3.
The thickness of the cabinet board is 20 mm.
If the power socket is installed on the back of the appliance, the depth of the
cabinet opening shall be increased from a minimum of 590 mm to 620 mm.
The dimensions in the figures are in mm.

ELICA EPBI 680 MMF Specifications

General

Brand	ELICA
Model	EPBI 680 MMF
Category	Oven
Language	English
