Elite Acoustics Engineering StompMIX 4 - Rear Panel Connections; USB and Power Input; Channel 1;2 Controls; Outputs

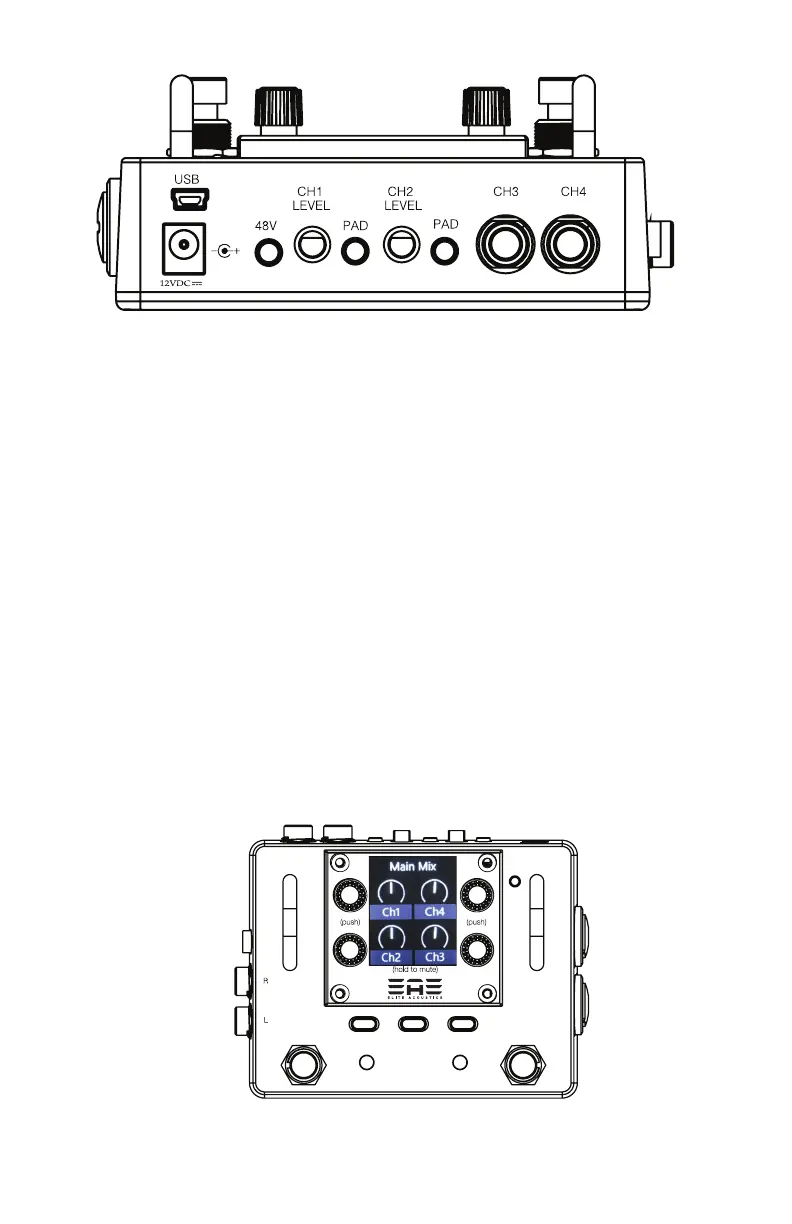

Rear Panel.
1) USB mini jack (for Updating unit.)
2) DC input Jack (+12VDC Center Positive.)
Unit will operate from +9VDC to +12VDC “Must be Center Positive”
3) +48V phomton power switch - Both CHAN 1 and CHAN 2.
4) CHAN 1 LEVEL and PAD
5) CHAN 2 LEVEL and PAD
6) CHAN 3 input
StompMix 4
page
system
parameter
OUT2
OUT1
CH2
CH1
A
B
CHAN 1/2
Combo Jack
input.
MIC or 1/4”
Line Inputs.
OUTPUTS
OUTPUT 2
1/8” Jack.
OUTPUT 1
L/R 1/4”
Jacks.
