Elite Screens YARD MASTER MANUAL SERIES User Guide

Rev.11092023JA
www.elitescreens.com
3
Installation Instructions
Please consult a professional installer, Elite Screens is not liable for faulty installations.

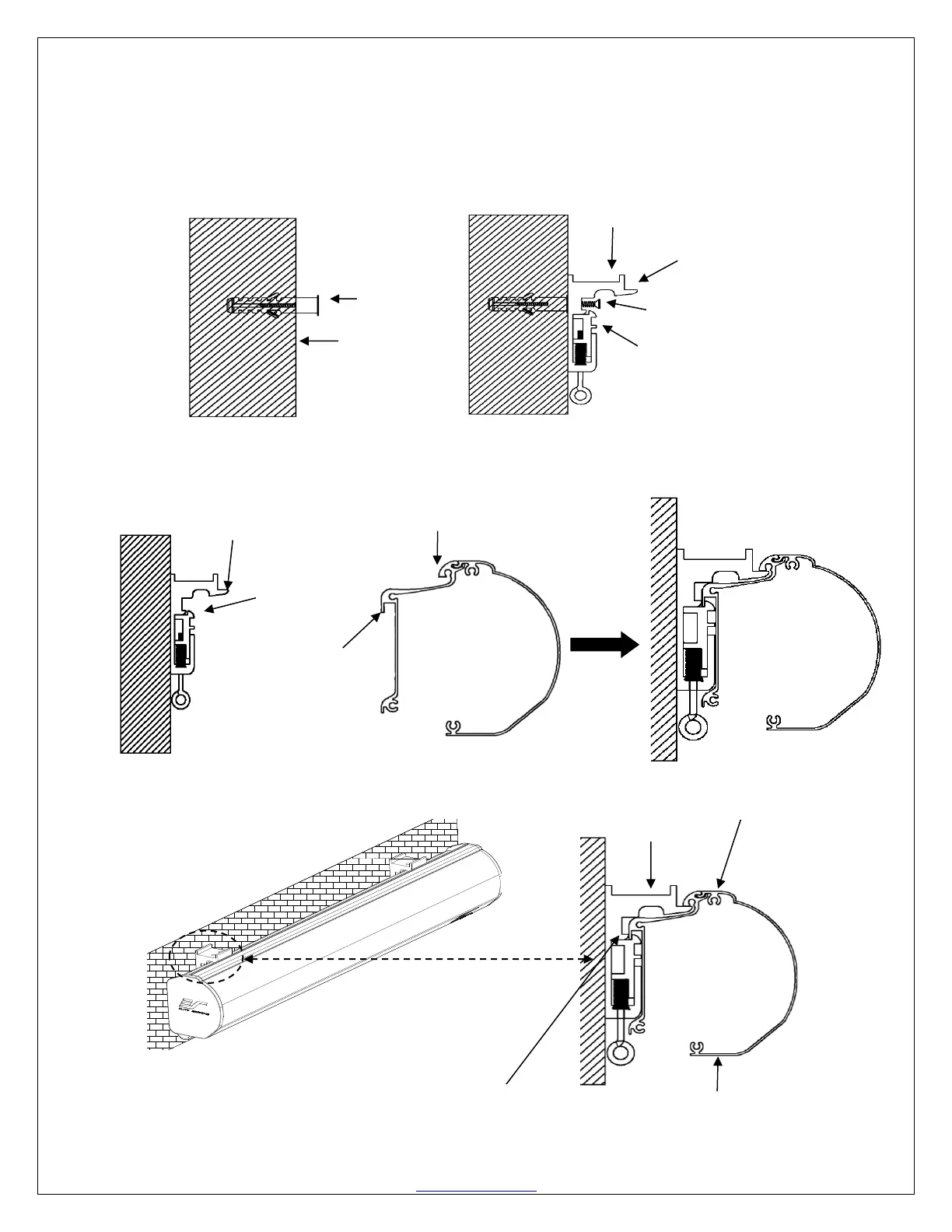

Flush Mount to the Wall
1. Mark the location of where the screen is to be installed, drill your holes, and insert the M10Anchors (B).
2. Install the Mounting Brackets (A) to the wall and secure with the M4x50 Screws (B).
3. Insert and attach the Top Case Slot A to the Top Clamp Slot 1, then secure it by pushing and clicking it
in the Bottom Case Slot B to the Bottom Clamp Slot 2. Make sure the case slots are securely attached
to the mounting brackets.
Mounting bracket
Top Clamp Slot 1
M4x50 Screw
Mounting Bracket
Bottom Clamp Slot 2
Mounting bracket
M10 Anchor
Wall
Bottom
Clamp Slot 2
Top Clamp Slot 1
Bottom
Case Slot B
Top Case Slot A
Top Case Slot A
Mounting
Bracket
Bottom Case Slot B
Screen Case
