Mounting
Brackets (A)
Flush Mount to the Ceiling

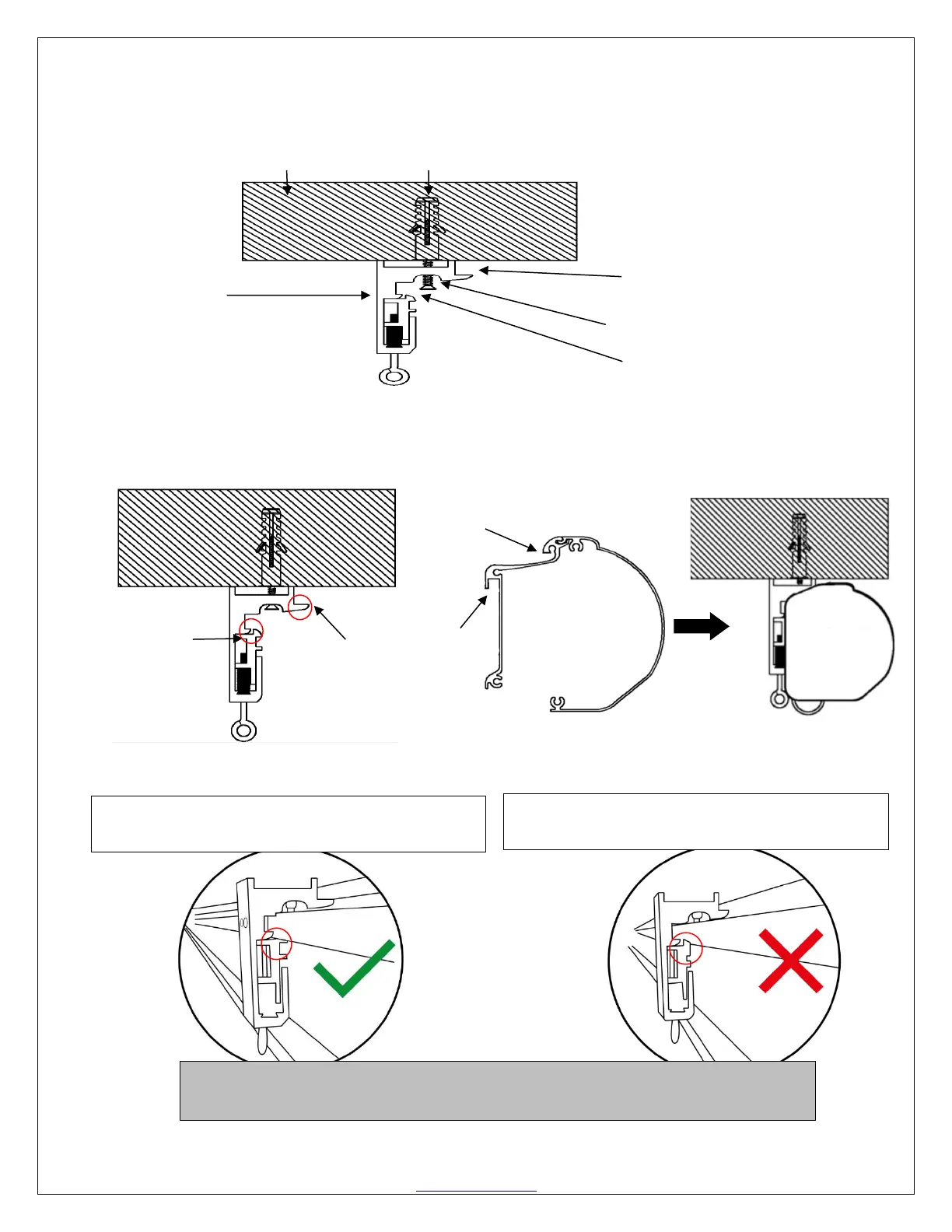

1. Mark the location of where the screen is to be installed, drill your holes and insert the M10Anchors (B).
2. Install the Mounting Brackets (A) to the ceiling and secure them with the M4x50 Screws (B).
Ceiling M10 Anchor (B)
Mounting Bracket Clamp Slot 1
M4x50 Screw (B)
Mounting Bracket Clamp Slot 2
3. Insert the and attach the Top Case Slot A to the Top Clamp Slot 1, then secure it by pushing and clicking
it in the Bottom Case Slot B to Bottom Clamp Slot 2. Make sure the case slots are securely attached to
the mounting brackets.
IMPORTANT: PROPERLY ATTACH THE BRACKET TO THE SCREEN CASE
Bottom Clamp
Slot 2
Top Clamp
Slot 1
Top Case Slot A
Bottom Case
Slot B
INCORRECT: BOTTOM MOUNTING BRACKET CLAMP
SLOT IS NOT SECURELY LATCHED IN SCREEN CASE.
CORRECT: BOTH TOP/BOTTOM MOUNTING BRACKET
SLOTS ARE SECURELY LATCHED IN SCREEN CASE.
CAUTION: THE WALL BRACKET MUST BE SECURELY LATCHED IN THE CASE SLOTS
TO PREVENT THE CASE FROM FALLING OFF.
