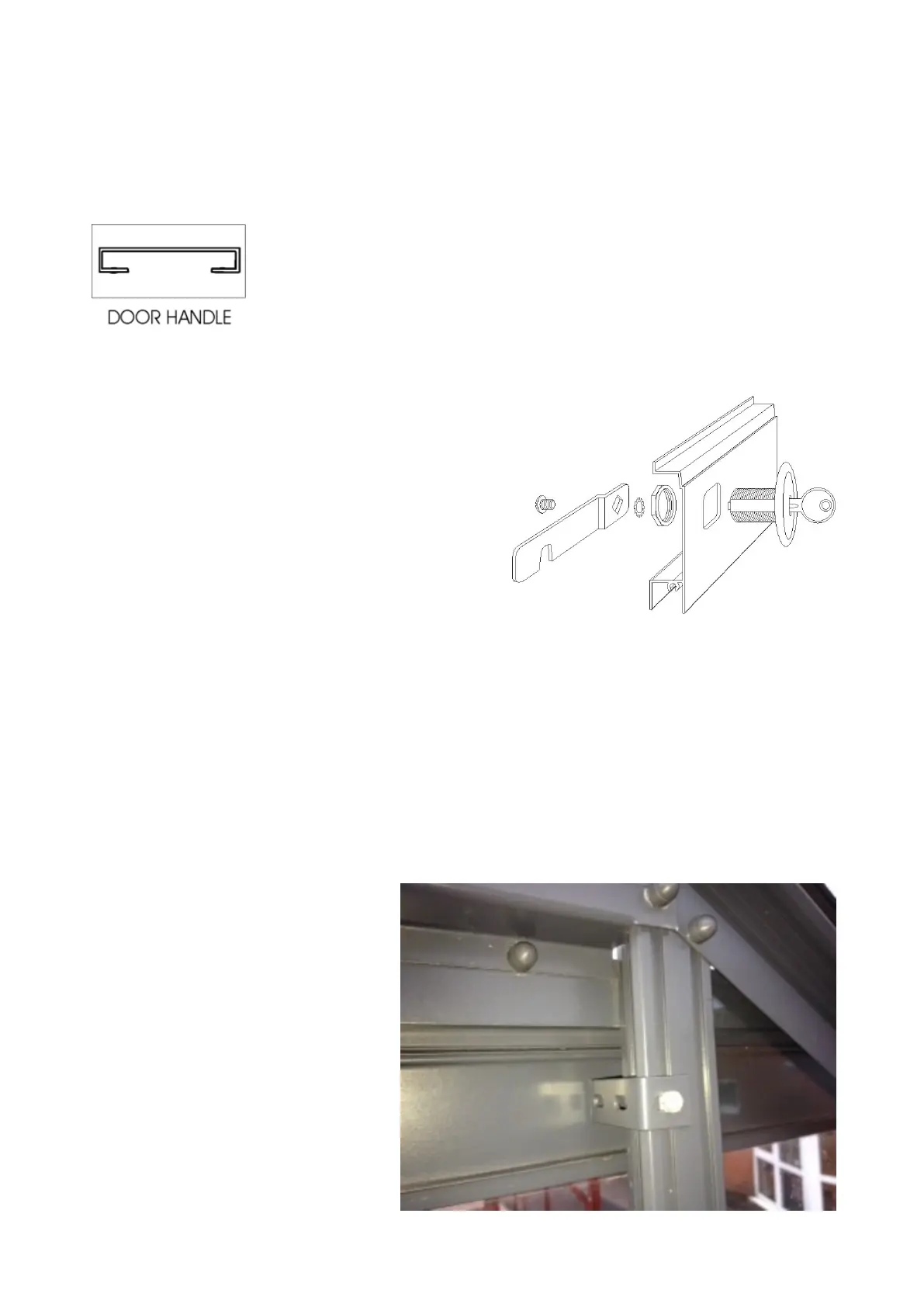

FITTING THE DOOR HANDLES
The handles are fitted to the infill panel on each door (choose between 1st or 2nd panel down). Po-
sition the handle centrally, and mark the hole position. Drill 7mm diameter holes (2 holes per door),
then fit the handles, and secure with a nut and bolt.
FITTING THE DOOR LOCK
The door lock must be fitted after the doors are in posi-
tion (Key Point). Undo the ring bolt from the door lock,
and insert the barrel through the hole in the panel from
the outside. Reattach the ring bolt to the barrel on the
inside, and tighten.
Now attach the cam lever, washer and screw to the door
lock from the inside position of the door. The lock will
turn through 90 degrees both ways, so you must ensure
the cam (when fitted) is pointing skywards (unlock posi-
tion) and horizontal (locked position)
Now using a cropped head bolt, attach the domed pin to
the bolt channel of the handed door post on the left hand door (viewed from outside). Move the pin
up or down in the channel so that the notch on the cam locates comfortably when horizontal. Tight-
en all components.
FINISHING OFF
To prevent the door from sliding past its opening, you must fix 2 angle brackets to the door end as-
sembly.
Insert a cropped head bolt into the bolt channel at the top of the left hand glazing bar (viewed from
the inside) and fix and angle bracket as shown in the picture below.
The bracket must be fitted at the same height as the door panel so that, as the door moves left or
right, the bracket prevents the door from moving too far along the top door track.
Repeat at the bottom of the door
Repeat for the 2nd door
To facilitate smooth running of the door ,
fit 1 flat bar at each end of the top door
track.
The flat bar has 2 holes of different size.
Loosely fix the larger hole to the bolt
channel at the back of the top door track
using a short bolt and allow the flat bar to
hand vertically down.
Move the flat bar along the top door track
until the small hole in the flat bar meets
the self tapping screw groove in the roof
corner bar.
Fix the small hole in the flat bar to the
corner bar using a self tapping screw.
