Elite Robo-Pad - Mounting Speaker and Airbag Assemblies

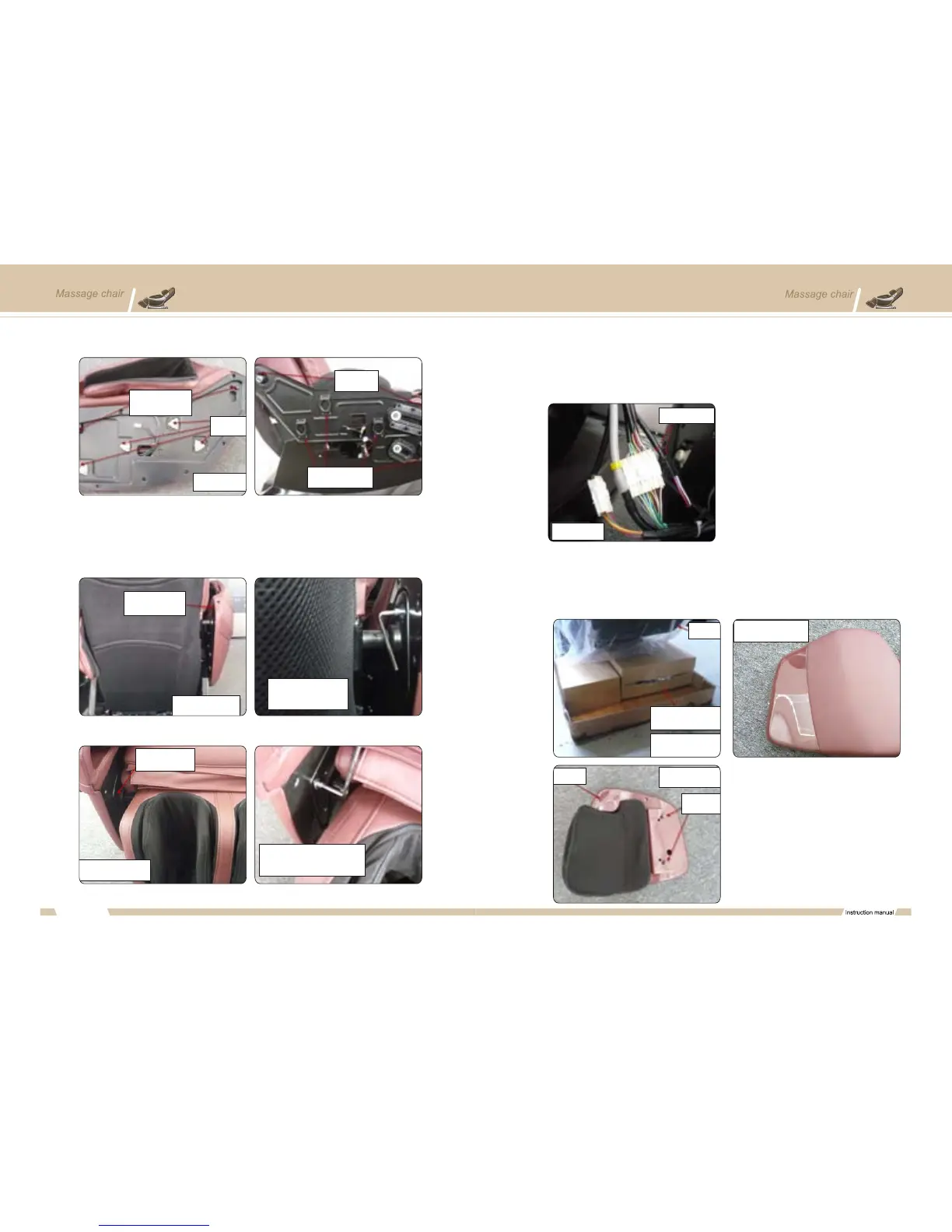

Step 1C: Install the screws for the arm.
Install the screws removed in step 1B. The silver hex key provided will be
usedto tighten the screws
Rear screw location:
Front screw location:
Step 2: Install left arm.
Repeat the procedure for step one. Note that there are two additional plugs for the
left arm, three total, as shown below. Connect the plugs and air pipe accordingly.
The remainder of the procedure is the same as the right arm
Step 3: Install right and left upper air bag / speaker assembly.
Step 3A: Remove plastic covering panel from speaker assembly.
Locate the speaker / upper air bag assembly in the large accessories
box.Note the mounting posts and orientation of the speaker which will assist
you to differentiate the left from the right assembly
Instruction manual
14
15
Arm screw locations,
remove screws
before mounting
Arm
mounts
Back view
of arm
Screw hole
location
Arm mount locations
Screw location
Rear view of chair
Install screw as shown
Screw location
Front view of chair
Install screw as shown
Additional plugs
Left arm wires
Chair
Large accessories
box-speaker / air bag
assembly
Accessories boxes,in
large chair box
Speaker / air bag
assembiy front view
Speaker
Speaker / Air bag
assembly rear view
Mounting
posts
