Elkay ECH8 - Page 6

Page 6
Elkay Manufacturing Company (630) 574-8484
2000000694 (Rev. A - 07/22)

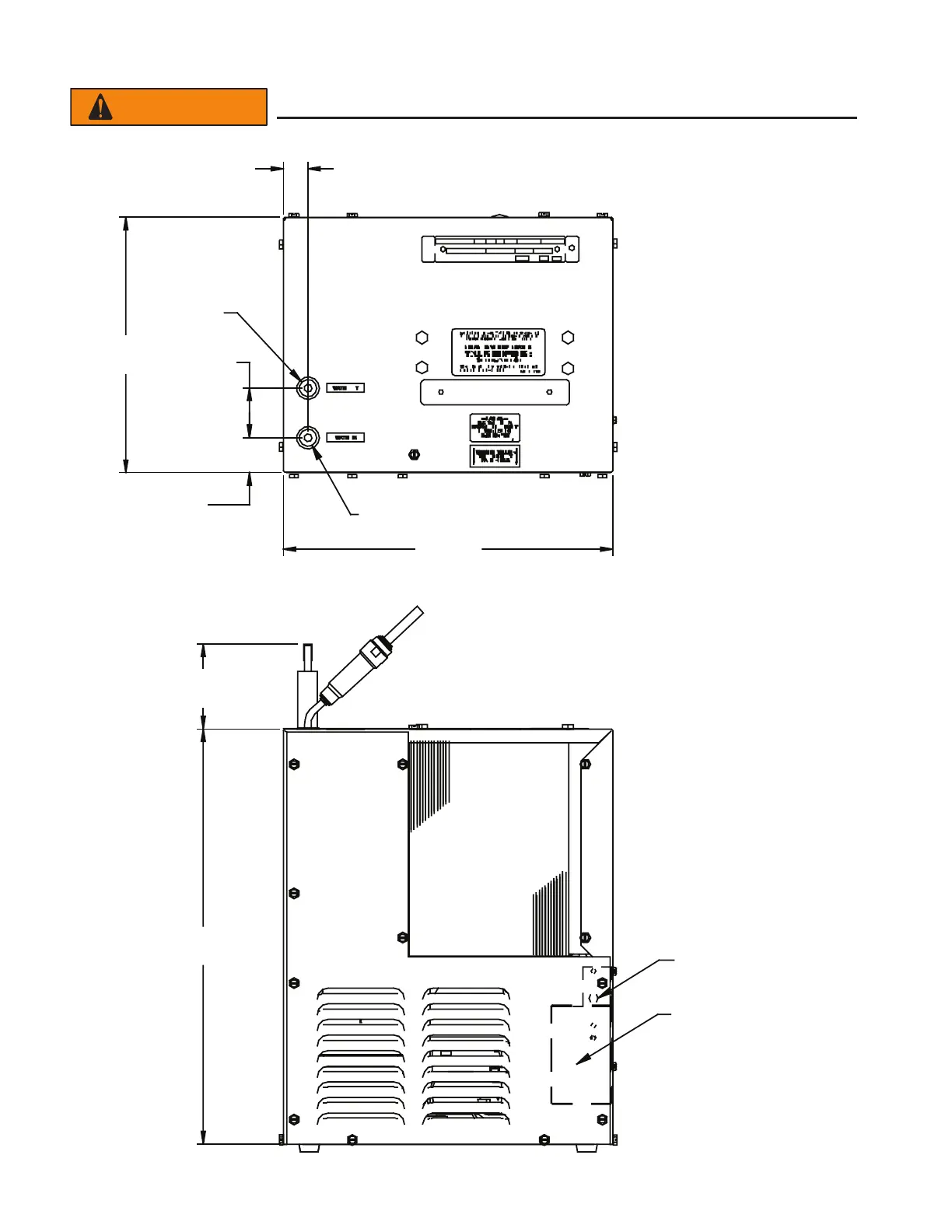

ECH8_1P ECH8_2P ECH8_3P
10 1/4"
261mm
16 3/4"
425mm
1 3/4"
95mm
REF.
C
D
1 3/8"
35mm
2"
50mm
A
B
13 1/4"
338mm
1"
25mm
LEGEND
A = 1/4" O.D. TUBE WATER OUTLET
B = 1/4" O.D. TUBE WATER INLET
C = TEMPERATURE ADJUSTMENT
D = ELECTRICAL
USES HFC-134A REFRIGERANT
Electric shock hazard. Disconnect power before servicing unit.
WARNING
