Elkay EZFTL8 1E Series User Manual

PAGE 7 98919C (Rev. B - 11/12)
EZF(S)TL8*1E, 2D, 3D EZF(S)TLR8*1E, 2D, 3D EZF(S)DTL*1E, 2D EZF(S)DTLR*1E
LZF(S)DTL*1E LZF(S)DTLR*1E LZF(S)TL8*1E LZF(S)TLR8*1E
2
1
4
7
6
5
3
WATERSENTRY
®

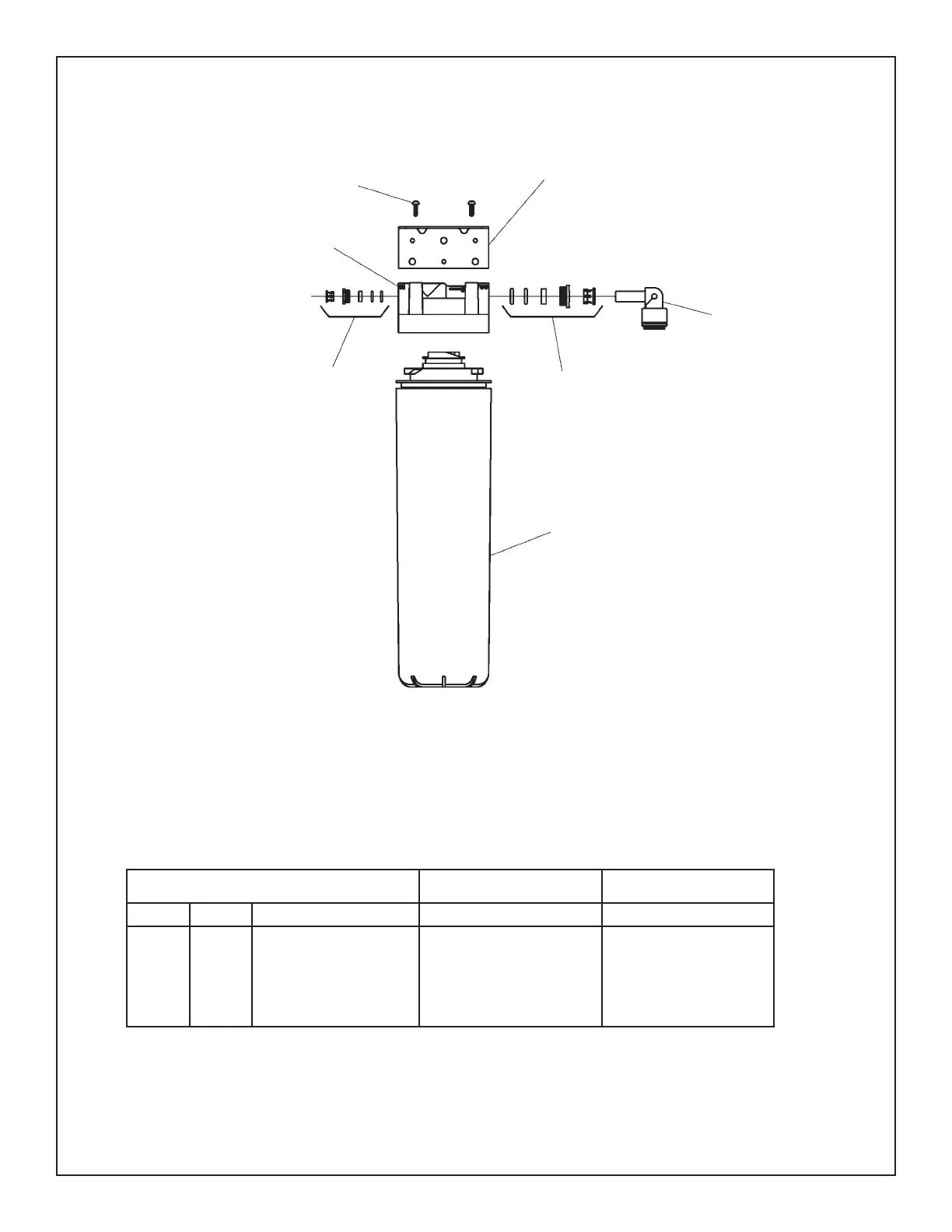

Filter Detail
FIG. 8
When provided
Cuando provisto
Si Fourni
Detalle WATERSENTRY
®
Filtro
Description WATERSENTRY
®
Filtrage
DESCRIPTION
1
2
3
4
5
6
7
ITEM NO. PART NO.
51294C
70792C
70823C
70822C
51299C
51300C
70818C
22490C
Filter Head Assy.
Screw #8-18 x .75 PH
Fitting - Superseal 3/8” (10 mm)
Fitting - Superseal 3/8” (6 mm)
Filter Assy
Filter Assy-BF-3000 Gal.
Elbow - 3/8” (10mm)
Bracket
DESCRIPCIÓN DESCRIPTION
Ensamblado de la Cabeza del Filtro
Tornillo #8-18 x .75 PH
Accesorio - Supersello 3/8" (10mm)
Accesorio - Supersello 1/4" (6 mm)
Ensamblado del Filtro
Ensamblado del Filtro-BF-3000 Gal.
Codo - 3/8" (10 mm)
Fijador
Ens. de tête de filtre
Vis #8-18 x .75 hp
Raccord - Superseal 3/8" (10mm)
Raccord - Superseal 1/4" (6mm)
Ens. filtre
Ens. filtre-BF-3000 Gal.
Coude - 3/8" (10mm)
Support
WATERSENTRY
®
FILTER PARTS LIST
(See Fig. 8)
LISTA DE PIEZAS DEL FILTRO
(Vea la Fig. 8)
LISTE DES PIÈCES DU
FILTRE (Voir Fig. 8)
