ELME 586TB - Plastic Wear Pad Details; Extension Beam Shims

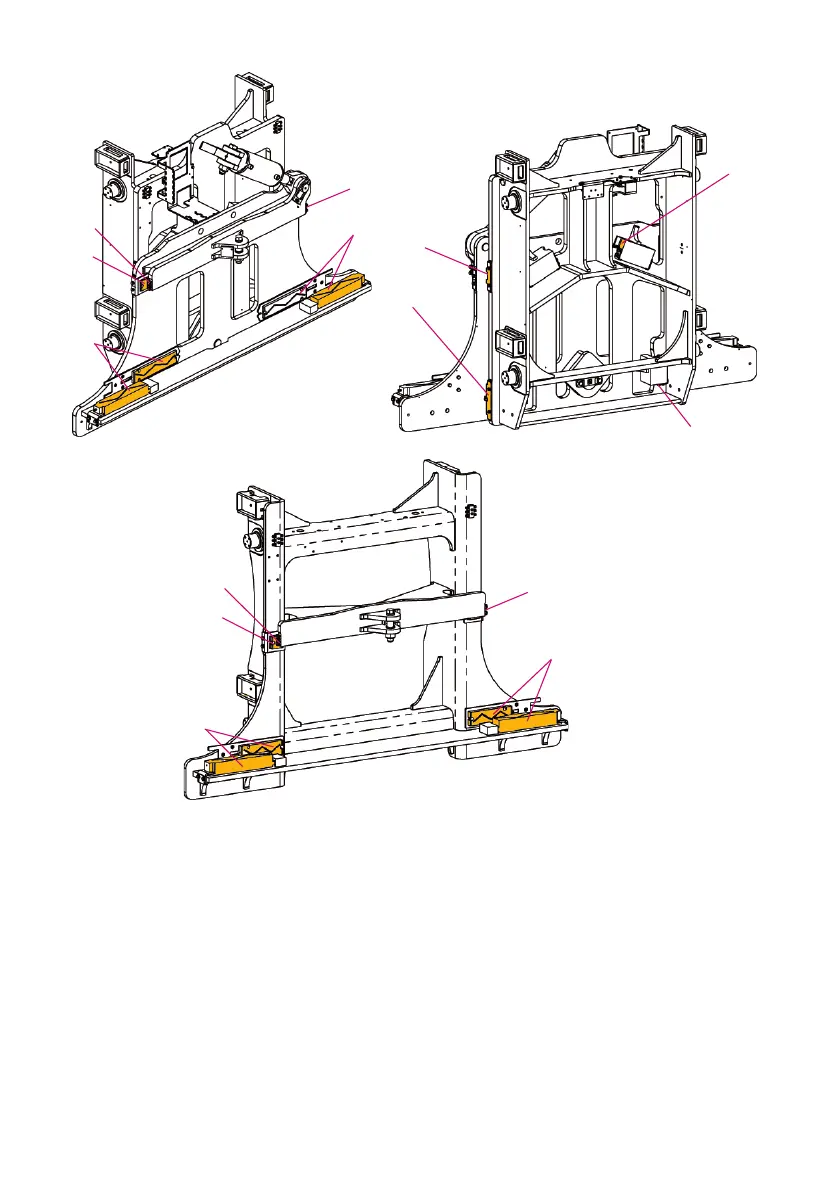

Plastic wear pads
The plasc wear pads (item 1) should be inspected for wear. Replacing the wear pads
can be done with ordinary hand tools and without removing the beams. The wear
pads (items 3) are not likely to wear and are therefore not included in the service
box.
Shims
If the play on the sides of the extension beam is more than 10 mm, it is possible to
use dierent sizes of shims (item 2) to reduce the play. Always check the play in 30
posion or where the extension beam is the greatest. Minimum play should be 1 mm
aer shimming.
7
1
1
1,2
1,2
1
1
3
3
3
3
1,2
1
1
1,2
PPS
MPS
