- 23 -

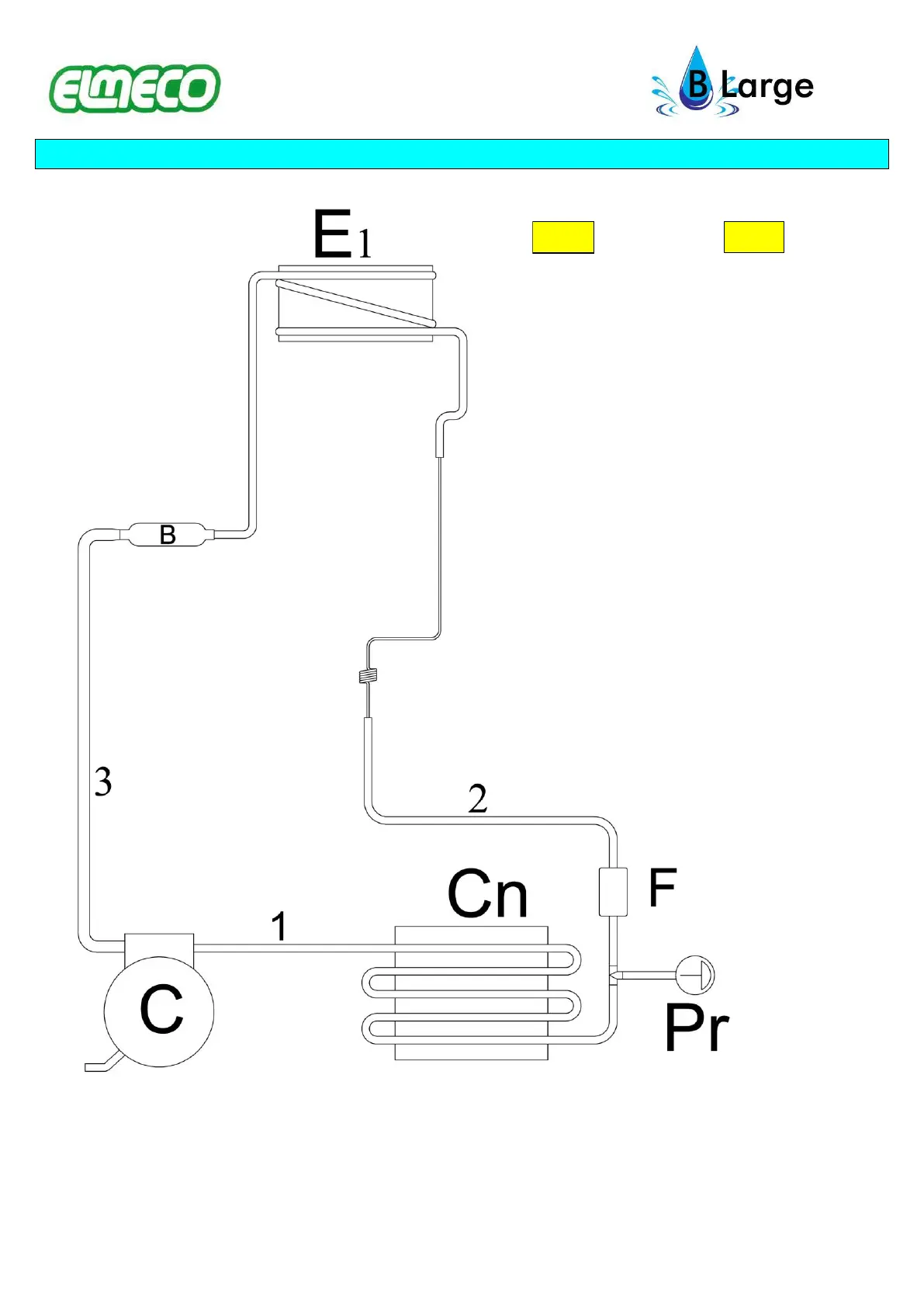

Installation de réfrigération / Cooling System
F
C: Compresseur
Cn: Condensateur
F: Filtre déshydrateur
B: Ballon
E1: Évaporateur
1: Ligne évacuation
2: Ligne liquide
3: Ligne aspiration
Pr: Pressostat
GB
C: Compressor
Cn: Condenser
F: Dryer filter
B: Accumulator
E1: Evaporator
1: Discharge line
2: Liquid line
3: Suction line
Pr: Pressure switch
