ELMECO B Large Series User Manual

- 24 -

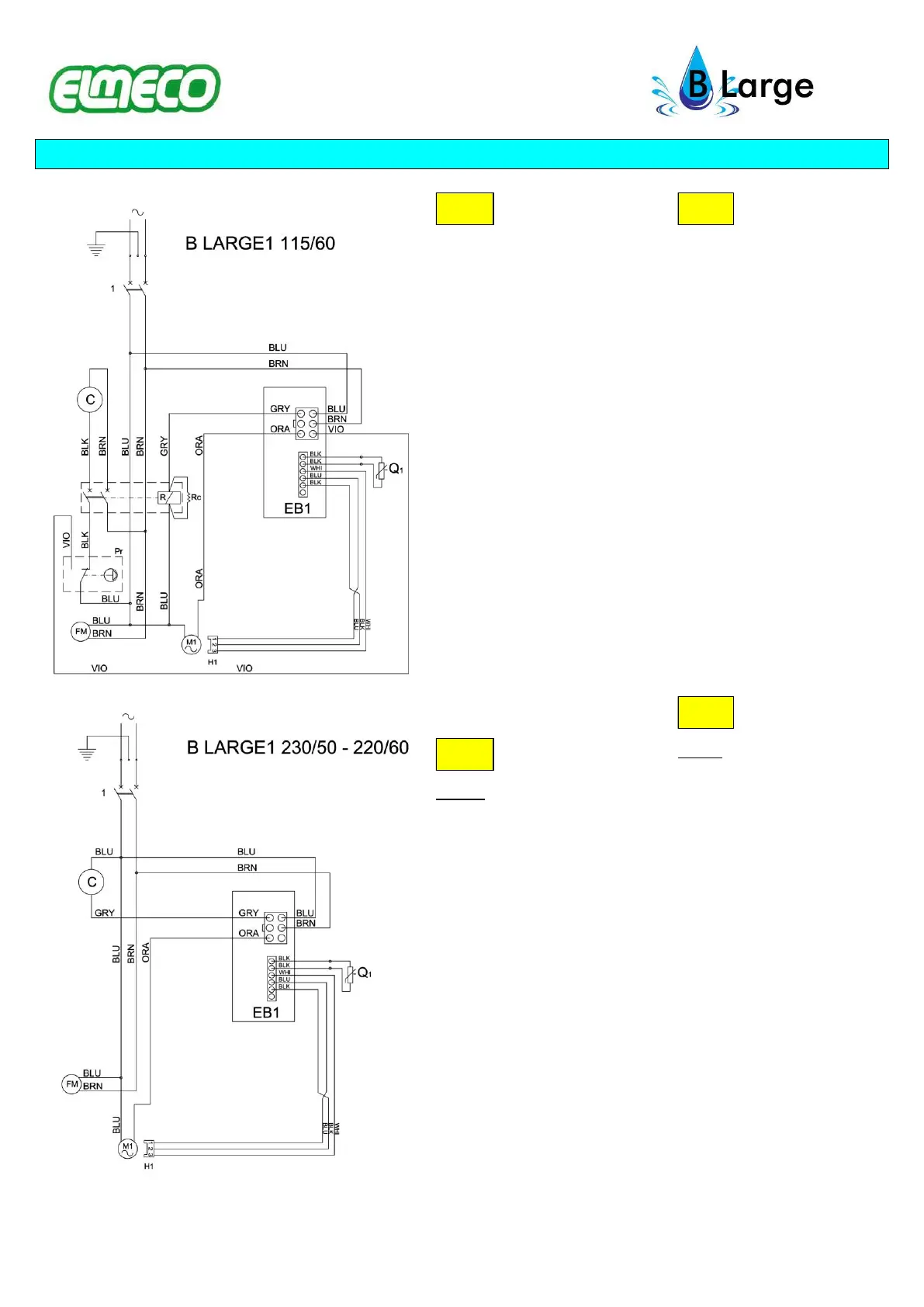

Installation électrique / Electric System
F
1: Interrupteur général
C: Compresseur
R: Relais compresseur
(uniquement BB1 115V/60Hz
et 100V/50-60Hz)
Rc: Résistance céramique
(uniquement BB1 115V/60Hz
et 100V/50-60Hz)
Pr: Pressostat
FM: Motoventilateur
M1/M2: Motoréducteur
H1/H2: Capteur de Hall /
lecteur magnétique
EB1/EB2: module électronique
EV1/EV2: Électrovanne
9: Fusible 5X20 F315mA
Q1/Q2: Thermostat
TM: Minuteur (option)
TR: Transformateur (option)
7: Fusible 5X20 F2A
L1/L2: Lampe coupole
F
Coloris
BRN Marron
BLU Bleu
GRN Jaune/Vert
RED Rouge
BLK Noir
WHI Blanc
GRY Gris
VIO Violet
ORA Orange
GB
1: Main switch
C: Compressor
R: Compressor relays (only BB1
115V/60Hz and 100V/50-60Hz)
Rc: Ceramic resistor (only BB1
115V/60Hz and 100V/50-60Hz)
Pr: Pressure switch
FM: Fan motor
M1/M2: Gear motor
H1/H2: Hall sensor / magnetic
reader
EB1/EB2: Electronic board
EV1/EV2: Solenoid valve
9: Fuse 5X20 F315mA
Q1/Q2: Thermostat
TM: Timer (optional)
TR: Transformer (optional)
7: Fuse 5X20 F2A
L1/L2: Top Light
GB
Colors
BRN Brown
BLU Blue
GRN Yellow/Green
RED Red
BLK Black
WHI White
GRY Grey
VIO Purple
ORA Orange
