User Manual ET702L
6

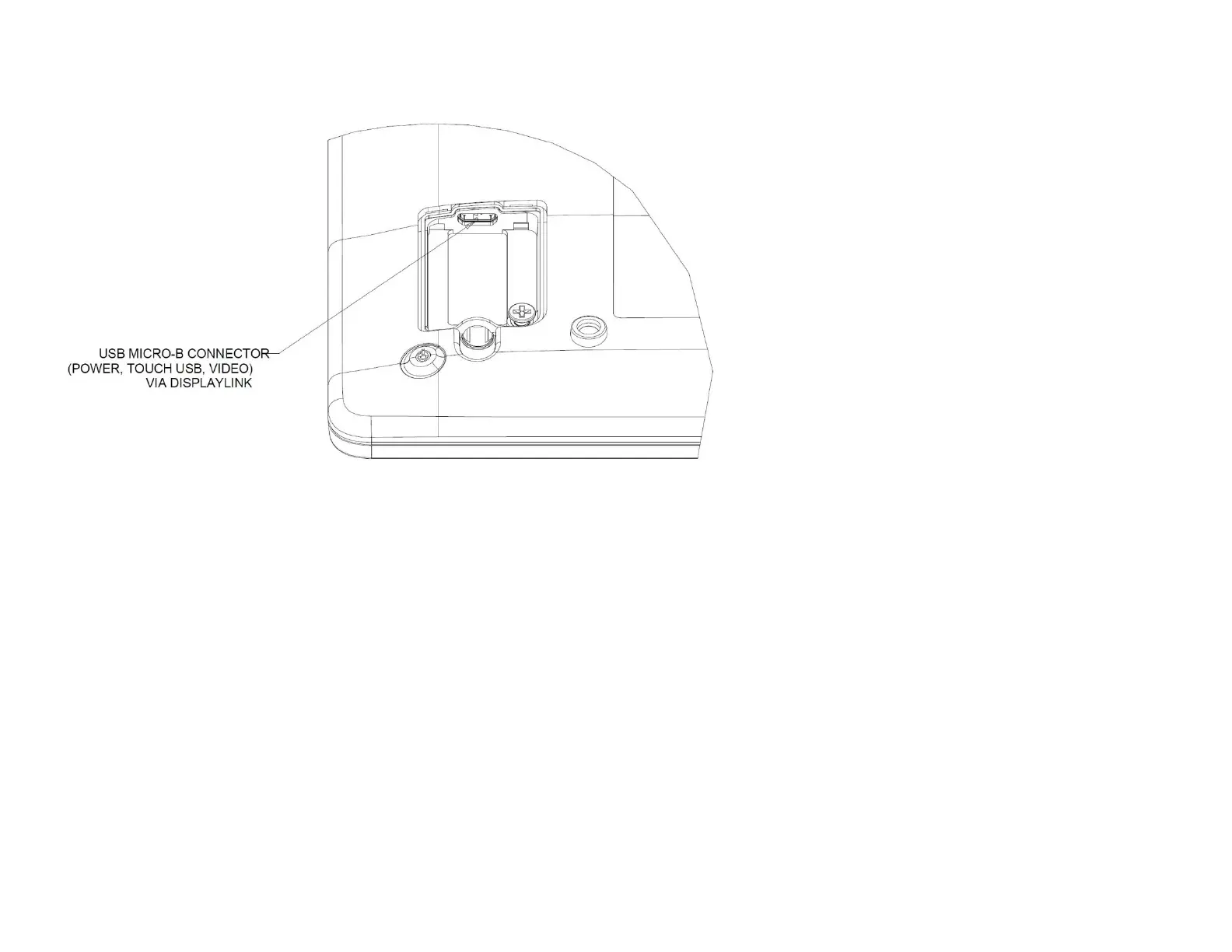

Connector Panel
Touch Monitor Connections
1.
Connect microUSB side of the USB Y-cable to monitor’s micro USB input connector and the other end of the Y-cable to USB type A ports on your computer.
(It’s recommended that you plug in both USBs to your PC)
2.
The touch monitor ships in an ON state, once the DisplayLink drivers are installed video should come up right away.
