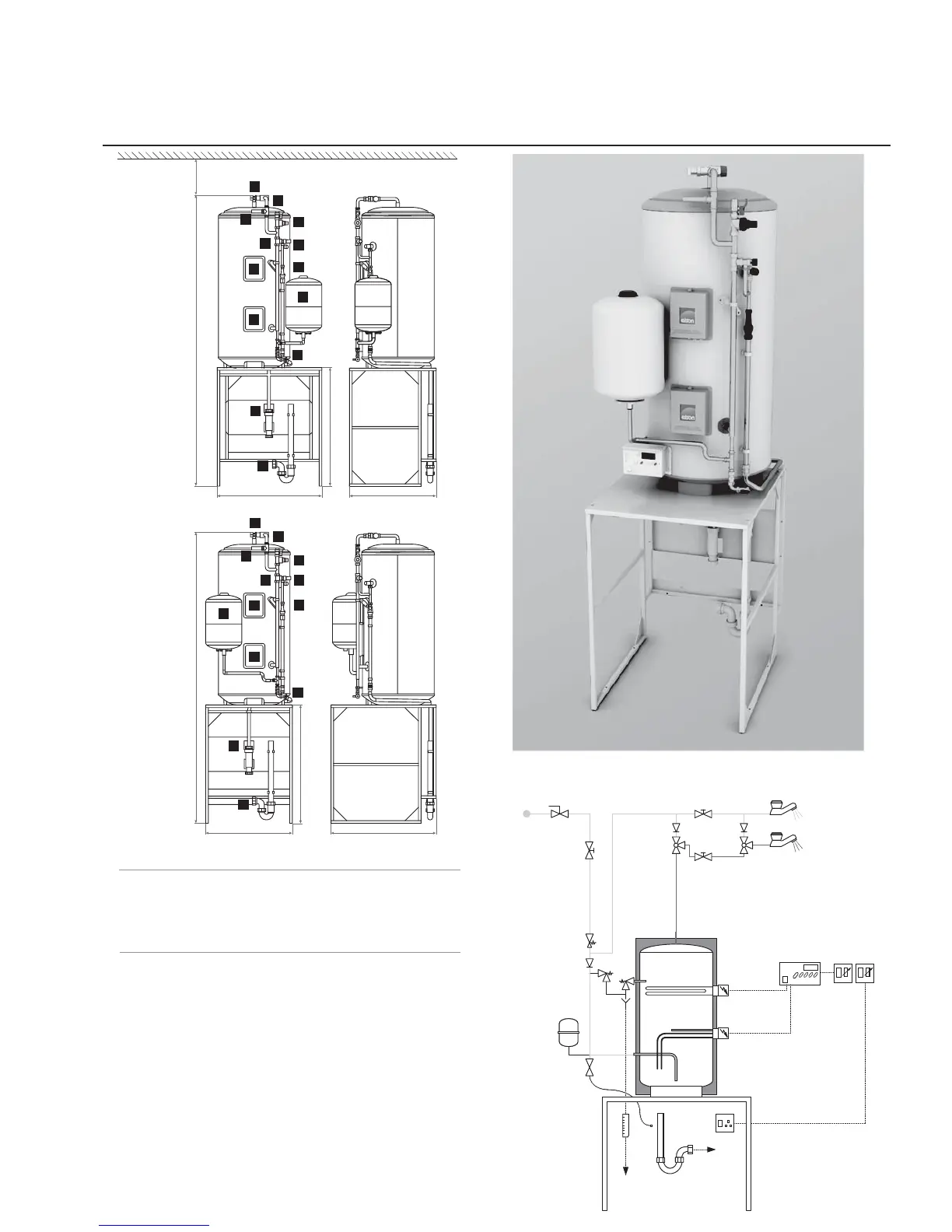

Elson Zircon - Zircon Dimension Details; Zircon Hydraulic Schematic

A
B
A
B
FE
DC
1. Domestic hot water Àow 22mm
2. Cold feed connection ( ¼ turn isolation valve) 22mm
3. Balanced cold feed 22mm
4. Combined cylinder drain cock and washing machine cold ¿ll
isolation valve 15mm
5. Hep
V
O dry trap 32mm
6. Washing machine waste pipe 40mm
7. Main 3kW immersion heater and thermostatic controls enclosure IPX2
8. Boost 3kW immersion heater and thermostatic controls enclosure IPX2
9. Temperature and pressure relief valve 10bar / 90-95ºC
10. Tundish 15mm x 22mm
11. Combined expansion relief valve / check valve 6bar
12. Pressure reducing valve 3.5bar
13. Potable water expansion vessel
Cylinder size** 120zd 150zd 170zd 210zd 250zd 300zd
Dimension (mm)
A 1881 2065 2191 1498* 1752* 2067*
B 900 900 900 - - -
C 800 800 800 800 800 800
D 660 660 660 660 660 660
E 660 660 660 660 660 660
F 800 800 800 800 800 800
*Floor standing cylinder height (no frame).
**For further information on the full range of Zircon models please go to www.elsonhotwater.co.uk
*** The diagram is a representation of an Elson Zircon with cold water control pack 3 on a frame.
Available depth for washing machine wide frame 580mm, deep frame 720mm.
***
1
6
11
2
7
21
3
8
4
9
31
5
1
6
11
2
7
21
3
8
4
9
31
5
01
01
Wide Frame
Deep Frame
***
Page 3
EBP Packages Manual
Dimension Details - Zircon
Minimum clearance above the TMV (1) 60mm
Hydraulic
Minimum clearance above the TMV (1) 60mm
