Universal Network Terminal TAU-72.IP/TAU-36.IP 29

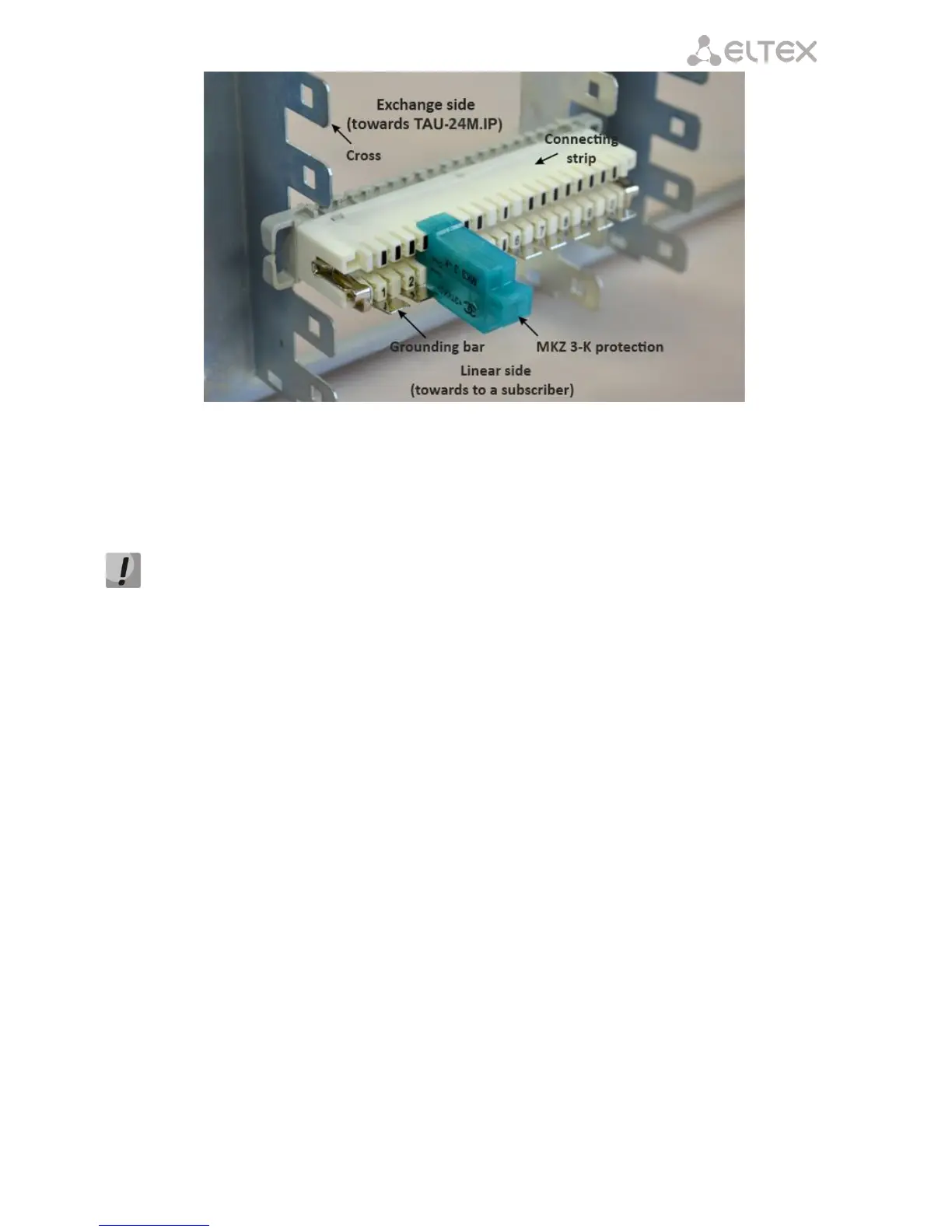

Fig. 9 - Connection diagram
Connect the power supply cable to the device. Depending on the provided sources, the device could be
powered from grounded power outlet 220/110VAC, 50/60Hz, or from -48...-60VDC power supply. To connect the
device to 220VAC electrical network, use the cable provided with the delivery package. To connect the device to DC
power supply, use the cable with cross-section not less than 1mm
2
.
When connecting to the 220V AC mains it is necessary to mount devices for electrical overshoot
protection.
Ensure that all cables are undamaged and securely connected.
Turn the device on and check the front panel LEDs to make sure the terminal is in normal operating conditions
(Section 2.7 Light indication).
