26
GB
DESCRIPTION
Type 7211 is a 7200 series open-voice monitor with 7" TFT LCD screen
(thin film transistor for active matrix display) with 16:9 widescreen aspect
ratio, for ELVOX Two-Wire video interphone installations.
It is equipped with a backlit keypad consisting of 8 push-buttons, 4 for
conventional functions: door lock release, monitor self-start, conversation,
stair light service, and 4 push-buttons for activation of additional auxiliary
functions or intercom calls. These latter push-buttons are also used for the
following settings: brightness and contrast control, ringtone volume con-
trol and mute, selection of different ringtones, conversation volume control,
selection of communication mode and activation of automatic answer fun-
ction. The device also has two LEDs (red and green) for indicating ringtone
mute, door/gate open and setting mode.
The monitor is equipped with a removable cover and is available in a range
of alternative colours. Installation of monitor type 7211 requires the use of
back box type 7249.
The back box is made of ABS plastic and is equipped with a cover to pre-
vent the ingress of mortar and grout during masonry work. Its dimensions
are 189x160x52 mm.
Caution: In the case of systems with separate cameras, we recommend
using cameras with a minimum resolution of 420 TV lines.
Monitor technical specifications
- ABS video interphone
- Removable terminal block
- 7" TFT LCD monitor, 16:9 widescreen aspect ratio
- Standard PAL video signal
- Operating temperature from 0° to +40° C
- Electronic ringtone
- Input for landing calls with different ringtone from entrance panel calls.
- Output for additional ringtone type 860A.
- Supply of data from bus.
- Input for additional power supply (type 6923) if the user wishes simulta-
neous activation of more than two monitors.
- Option of selecting hands-free communication mode (e.g. no need to
keep the talk/listen button pressed) or push-to-talk mode
- Dimensions: 193x159x18 mm + 31 mm (for flush-mounting)

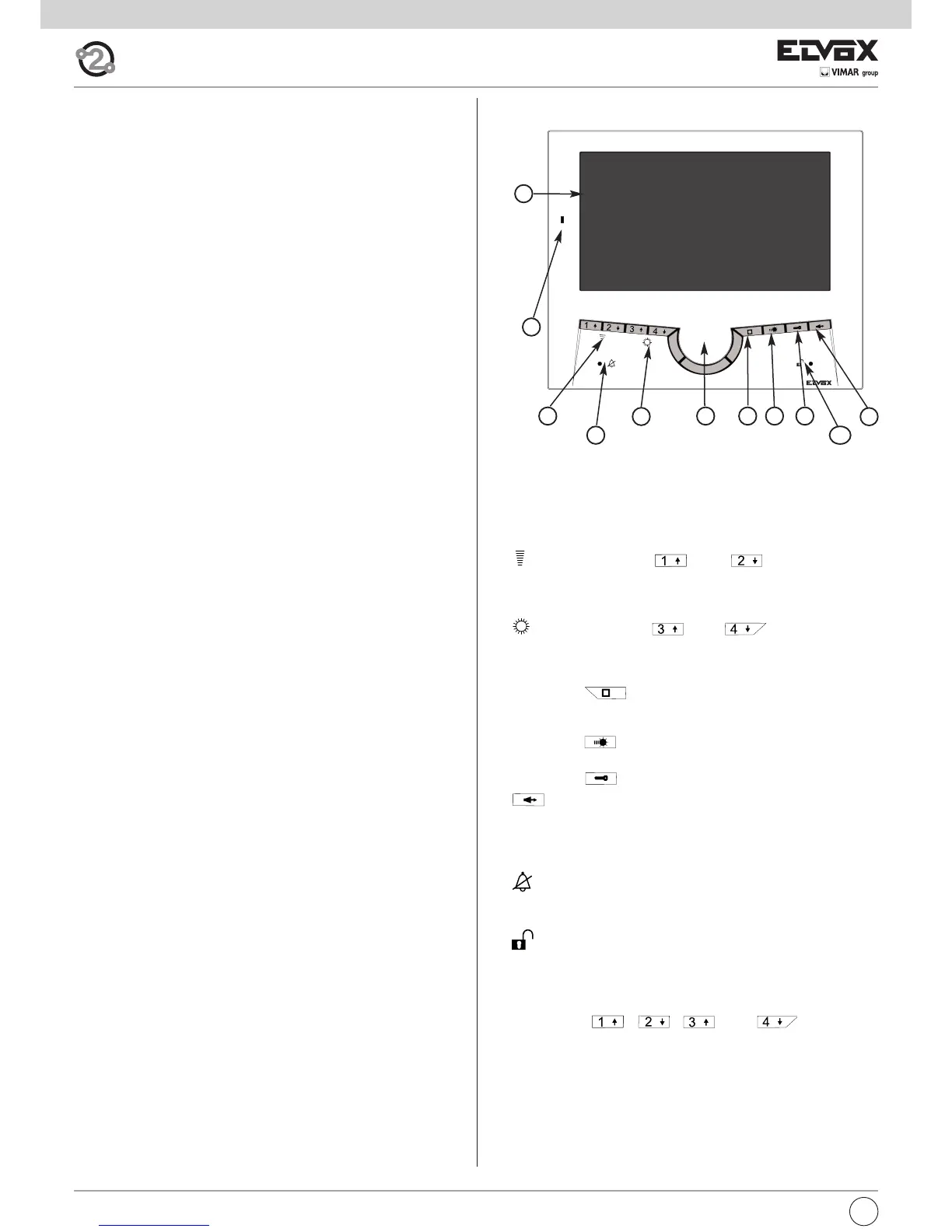

Front panel commands and controls
A) 7" TFT LCD colour screen, 16:9 aspect ratio
B) Microphone
C) Loudspeaker
D) Pair of push-buttons “ ” and “ ”: for activation of au-
xiliary functions or intercom calls and for contrast control (when display
is switched on), conversation volume and ringtone volume (when display
is switched off).
E) Pair of push-buttons “ ” and “ ”: for activation of au-
xiliary functions or intercom calls and for brightness control (when di-
splay is switched on) and melody selection (when display is switched
off).
F) Push-button : for monitor self-start on activation of the spe-
ech unit camera or a standalone camera (programmed on the entrance
panel) and/or to enter setting mode.
G) Push-button : for auxiliary service, 1st relay of 1st actuator type
69RH (e.g. stair lights).
H) Push-button : for door lock release.
I) Talk/listen push-button: to communicate with the speech unit
on receiving a call or after self-start or to communicate with intercom
devices. The default conversation mode is “HANDS FREE”. Alternatively
the unit can be set to push-to-talk mode (see paragraph "Communica-
tion mode selection function").
L) Ringtone mute indicator: if the red LED lights up, this indicates
that the call tone is off. The red LED also remains on throughout the con-
versation, e.g. as long as the audio connection is active.
M)
Door open indicator: if the green LED lights up, this indicates that
the door is open (this function is optional depending on the type of instal-
lation).
If the green LED is flashing, this also indicates setting mode, enabling
the brightness, contract, volume or melody to be adjusted using the
arrow buttons “ , , “ and ” ”.
B
A
D
L
E
C F HG
I
M
Monitor series 7200
type 7211
Fig. 6.1
