ElyQ Vision 50 - Page 21

Ely
Q

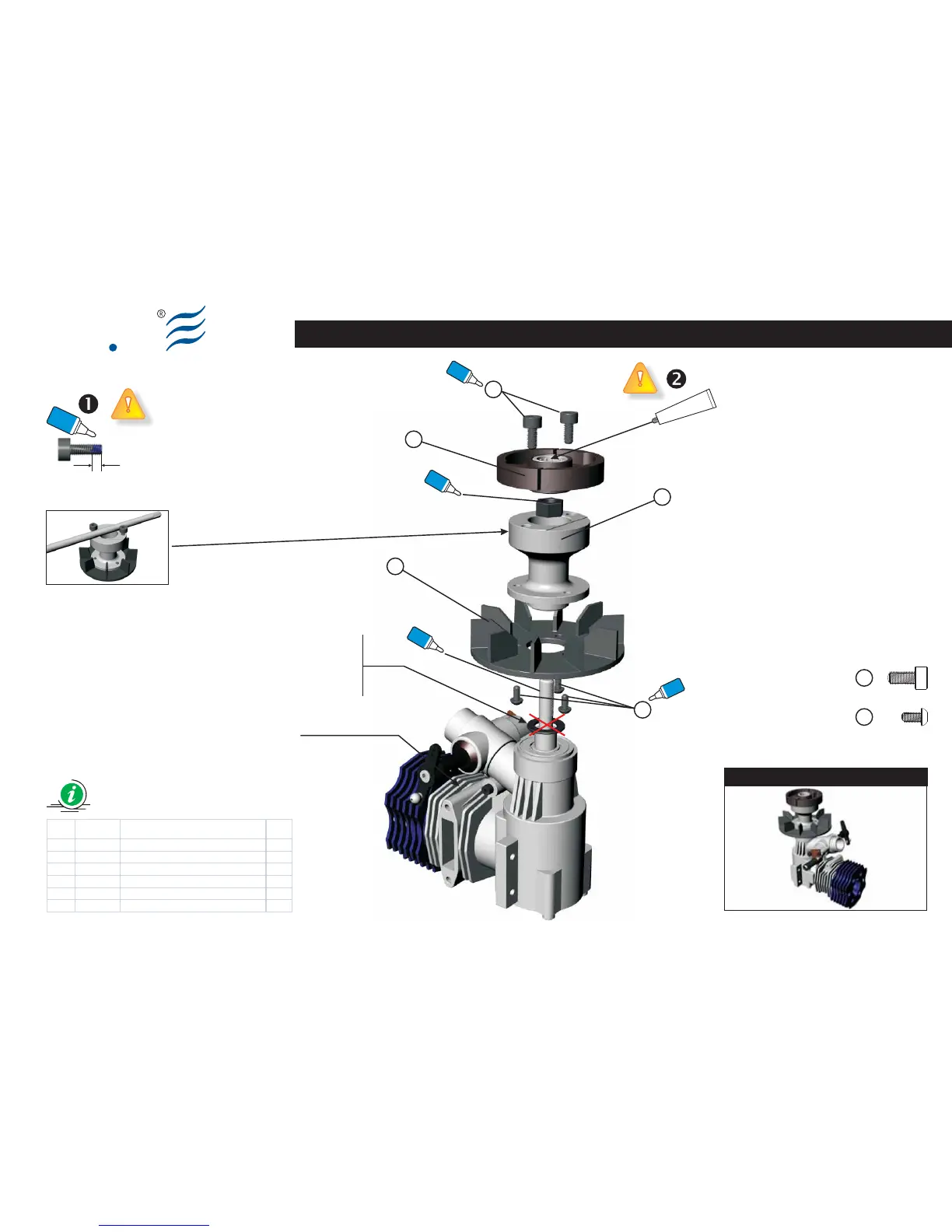

Cooling Fan Assy
Item Code Description Q.ty
1 8010000A Fan V50c 1
2 8401000A Clutch assy 1
3 8100400B Fan HUB 1
4 8202300A Socket screw M4x8 2
5 8202400A Socket button head screw M3x6 3
4
Blue
Locktite
3
2
1
5
Blue
Locktite
Blue
Locktite
Blue
Locktite
Grease
for one way bearing
Glue width: approx. 1mm
Blue
Locktite
S008-2
Engine not included
BAG EQ3004
Fig. 1
Non montare
Do not mount
Nicht montieren
Ne pas monter
Vision 50 - Competition / Italy 13-05-2009
Preview
Socket button head screw M3x6 (x3)
Socket Screw (x2) M4x8
5
4
