Vision 50 - Competition / Italy 13-05-2009
Ely
Q

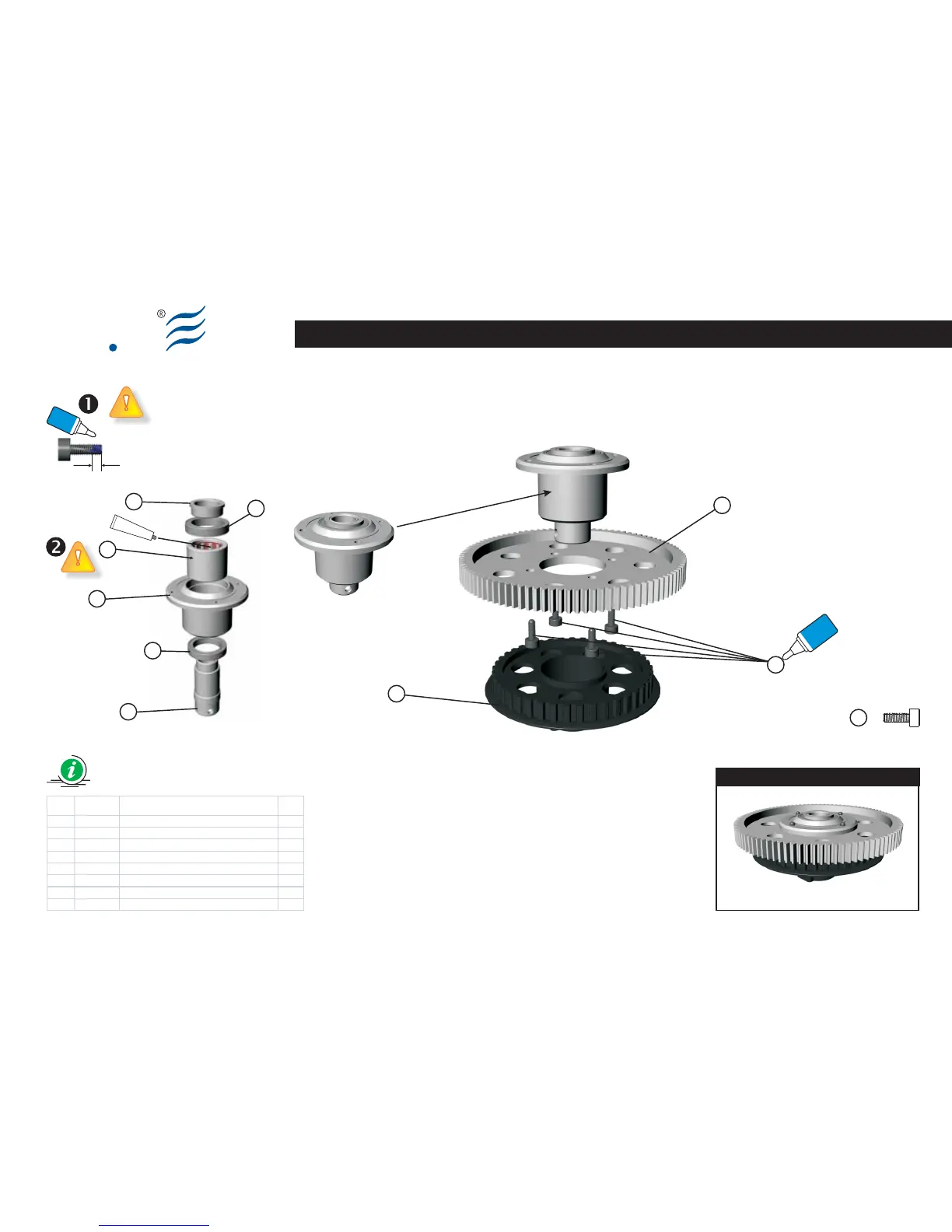

Main Drive Gear Assembly
Item Code Description Q.ty
1 8109900A One Way Housing with Logo (V50c) 1
2 8110000A One Way Shaft (V50c) 1
3 8600700A One way bearing d14, D20,W16 1
4 8110100A OneWay Shaft Collar (V50c) 1
5 8602300A Bearing d15, D21, W4 2
6 8201800A Socket Screw M3x8 4
7 8003900A Autorotation Pulley 1
8 8004900B 96T Main Gear 1
4
5
5
1
2
3
One Way Auto
Rotation Assy
Blue
Locktite
Grease
for one way bearing
6
Socket screw M3x8 (x4)
Glue width: approx. 1mm
Blue
Locktite
S014-2
BAG EQ3011
