ElyQ Vision 50 - Page 43

Ely
Q

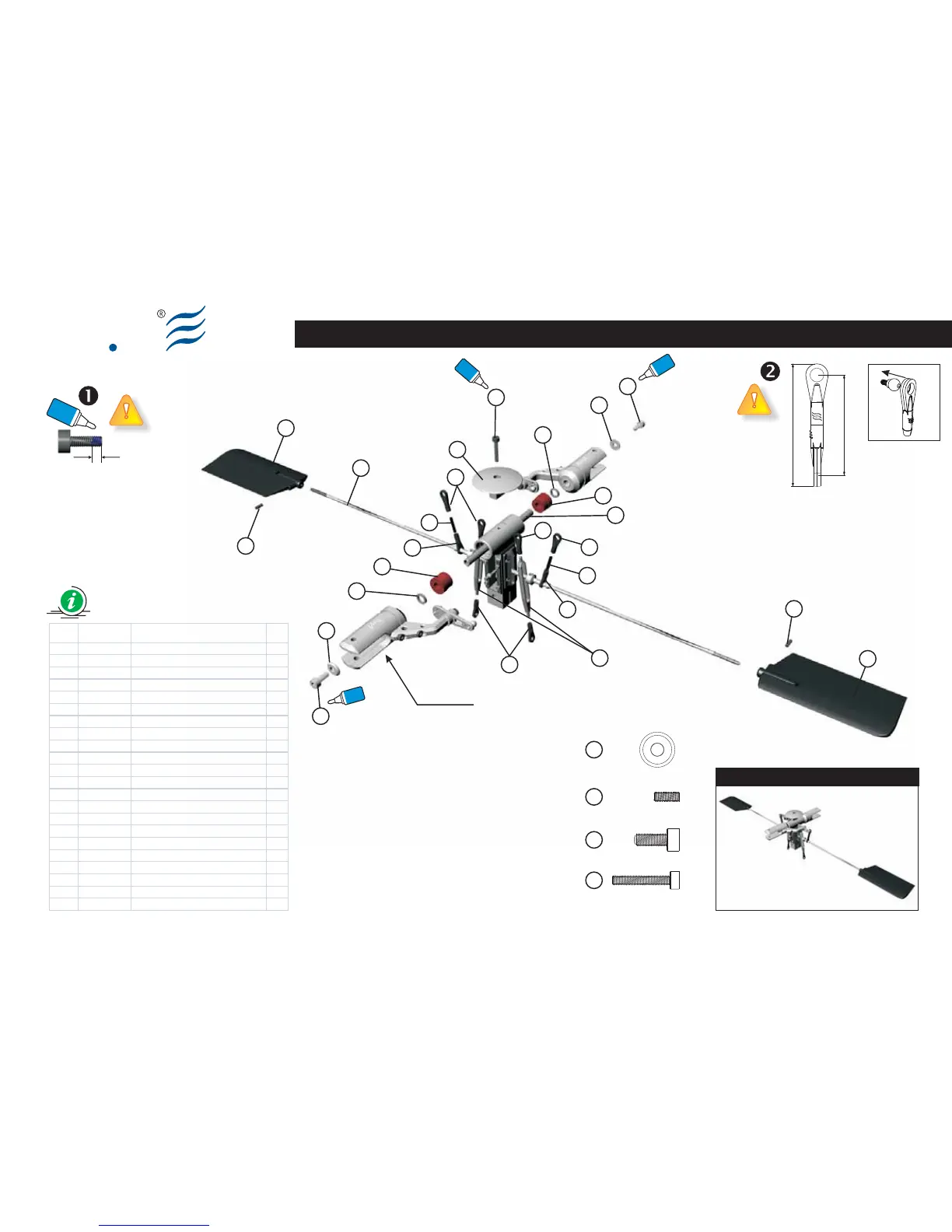

Main Rotor Head Assy (Part 1.00)
Preview
3
14
14
13
13
12
12
12
12
12
12
18
18
16
16
8
1
2
20
20
21
22
21
Glue width: approx. 1mm
Blue
Locktite
S018-2
Item Code Description Q.ty
1 8100600A Spindle 1
2 8109600B Control FlyBar (V50c) 2
3 8204000A Socket screw M3x18 1
4 8110200A Control Flybar Rod V50c 2
5 8102300B Flybar see saw lever 0.00 1
6 8109500C Center Hub (V50c) 1
7 8010700A Flybar Guide (V50c) 2
8 8109700A Head Stop (V50c) 1
9 8009900A FlyBar SeeSaw Guide (V50c) 2
10 8110400A Flybar Collar (d3, D4, W23) 2
11 8103200A Link M2.3x14 2
12 8002800B Ball Link B 8
13 8201400A Washer d4, D11, W1.7 2
14 8201500A Socket screw M4x10 2
15 8204600A Set screw M4x4 1
16 8103100A Flap collar d6, D9, W1.5 2
17 8205100A Socket screw M2x4 16
18 8005400A Damper 90° 2
19 8200200A Set screw M3x4 2
20 8204300A Set screw M3x8 2
21 8005000A 20g Paddle 2
22 8105700A Flybar 440mm V50 SUS 1
11
11
BAG EQ3015-21
Fig. 1
Vision 50 - Competition / Italy 13-05-2009
Main Rotor Pitch Assy
Blue
Locktite
Blue
Locktite
Blue
Locktite
31.25
38.25
14
Socket Screw M4x10 (x2)
13
Washer d4, D11, W1.7 (x2)
20
Set Screw M3x8 (x2)
Socket Screw M3x18 (x1)
3
