ElyQ Vision 50 - Page 49

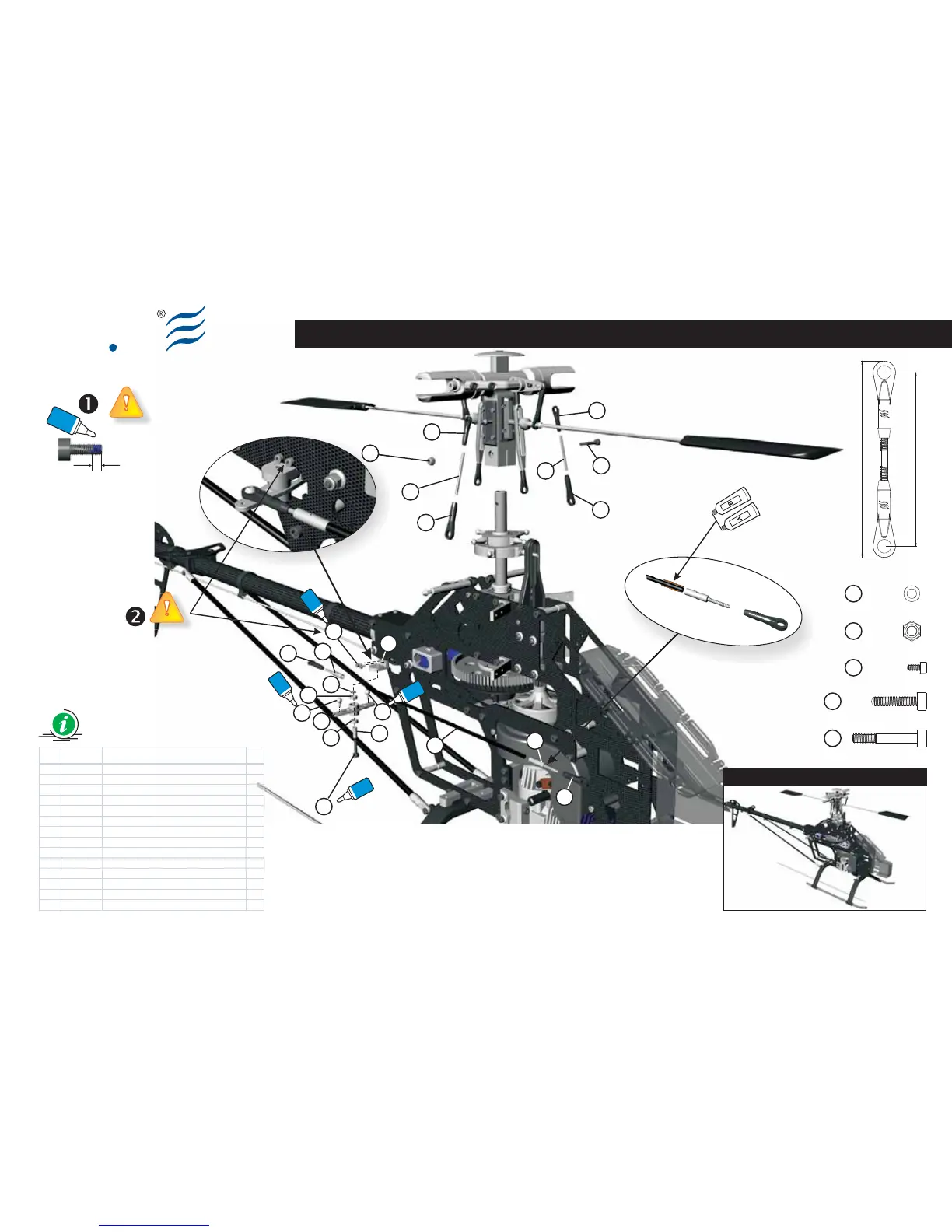

Main Rotor HUB & Servo Rear Drive
Ely
Q
S020-2
Item Code Description Q.ty
1 8110500A Link M2.3 x 30mm 2
2 8002700B Ball Link A 6
3 8200400A Lock nut M3 1
4 8203400A Socket screw M3x20 (13+7) 1
5 8108800A Tail Rotor Bell Cranck Support (V50c) 1
6 8205100A Socket Screw M2x4 2
7 8601100A Bearing d4, D7, W2.5 2
8 8104400A Ball Type E M2x4 - 2.75mm 2
9 8101900A Collar (d3, D4, W10) 1
10 8106000A Tail Rotor Bell Crank 1
11 8009300A C.F. Rear Servo Rod d3,D4,W220mm 1
12 8107700A Threaded Coupler M2.3-d4 2
13 8200900A Socket Screw M3x14 1
14 8201300A Flat Washer d3, D5, W0.5 1
BAG EQ3017
Preview
Vision 50 - Competition / Italy 13-05-2009
3
4
1
2
2
5
6
8
8
7
7
9
2
2
2
1
10
13
14
11
12
2
12
3
Epoxy
6
Socket screw M2x4 (x2)
Lock Nut M3 (x1)
3
Socket Screw M3x20 (13+7) (x1)
4
13
Socket screw M3x14 (x1)
Flat Washer d3,D5,W0.5 (x1)
14
54.25
61.25
Glue width: approx. 1mm
Blue
Locktite
Blue
Locktite
Blue
Locktite
Blue
Locktite
Blue
Locktite
Check page S025 for your release
