THE CLOSED CENTRE PLUG IS FOR INSTALLATION IN
THE BACKHOE VALVE ON UNITS WHICH WILL BE USED
ON TRACTORS WITH A CLOSED CENTRE HYDRAULIC
SYSTEM.
NOTE: THE OPTIONAL PTO PUMP (PTO70) IS AN OPEN
CENTRE SYSTEM AND DOES NOT REQUIRE THE
CLOSED CENTRE PLUG.
CLOSED CENTER PLUG INSTALLATION:
TO CONVERT BACKHOE VALVE FOR CLOSED CENTRE
OPERATION REMOVE PLUG A, AND INSTALL CLOSED
CENTER PLUG WITH LONG SHOULDER.

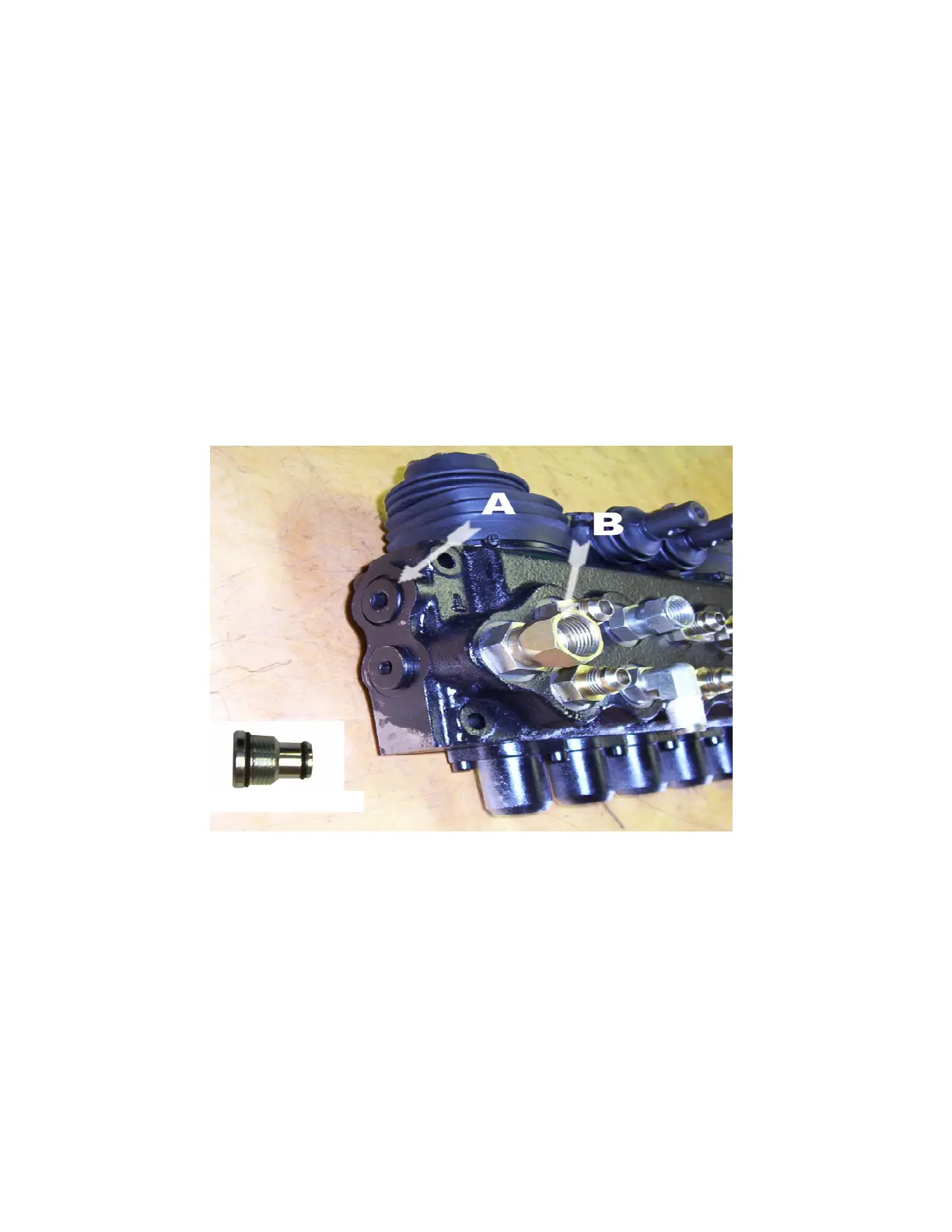

Closed centre plug
CLOSED CENTRE PLUG INSTALLATION
